2U DWDM Rack Optical Transport System 8 Slots For Full OM3800 Series Service Cards

2U High Density DWDM OTN Chassis

Product Features

• Standard 19-inch 2U height
• High integration: a single rack supports 7 general service slots and 1 network management slot
• Unified platform: supports mixed insertion of various business cards, unified network management
• High reliability: support AC and DC power 1+1 protection at the same time
• Good heat dissipation performance: 3 high-performance, high-speed fan designs ensure sufficient heat dissipation

Product Parameters

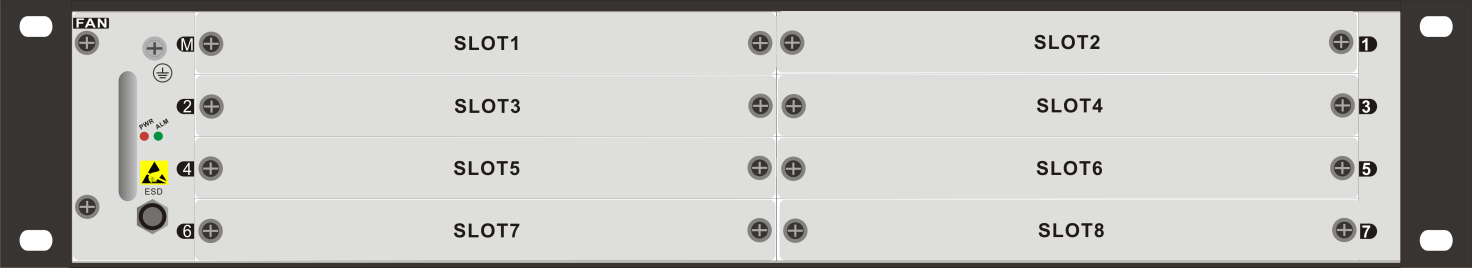

Front Panel

1) SLOT1 can be inserted into the NMS main control card, and SLOT2～7 can be inserted into various types of service cards

2)FAN slot: Used for heat dissipation of the chassis. When the PWR indicator light is on, it means that the power supply of the fan socket is normal. If the ALM indicator is red, it means that the fan is faulty. Normally, the ALM indicator should be off.

3) Indicator light: PWR: on: normal power supply; off: no power supply or abnormality.

ALM: on: fan failure or overheating; off: normal

Rear Panel

The power supply (PIU) slot is on the back of the device, supporting both AC (APU)/DC (DPU), power supply 1+1 hot backup

Indicator light: PWR: on: normal power supply; off: no power supply or abnormality.

Product Description

The OM3800-2U is designed with a standard 19-inch 2U rack-mounted and plug-in card structure.

• A single chassis provides 8 functional module slots, 2 power supply slots, and 1 fan slot.
• The front panel fiber outlet mode is adopted, and all optical interfaces and network management The interfaces are all designed on the front
• The air duct design adopts the right air inlet and left air outlet mode, and the air inlet is designed on the right side of the chassis.
• The cooling fan unit absorbs cold air into the chassis, and then it is exported from the air outlet on the left side of the chassis.

FAQ

Are you a manufacturer?

Yes, we have our production line and R&D team.

Please visit us via below VR link to see our office and production area.

https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html

How will you ship my order?

We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)

It is fine to ship purchased items via customer’s shipping account or forwarder.

It takes 3~5 calendar days to arrive at local customs for clearance.

Do you support OEM&ODM?

Yes, this is our competitive advantage.

There is a detailed introduction in the below link.

https://www.industrialnetworkswitch.com/factory.html

Do you attend some exhibitions?

Yes, we regularly attend IFSEC UK, MIPS RUSSIA, Security ESSEN GERMANY and ISC West USA.

Sometimes we are an exhibitor for some small shows like Mitec Malaysia, Secon Korea and Intersec Saudi Arabia.

Each time, we took many photos for displaying and record, please let us know if you need to check.

Can I visit your factory?

Sure. Each year there will be some important clients visiting us for new models and enhancing our business relationship.

Please let us know if you have a plan.

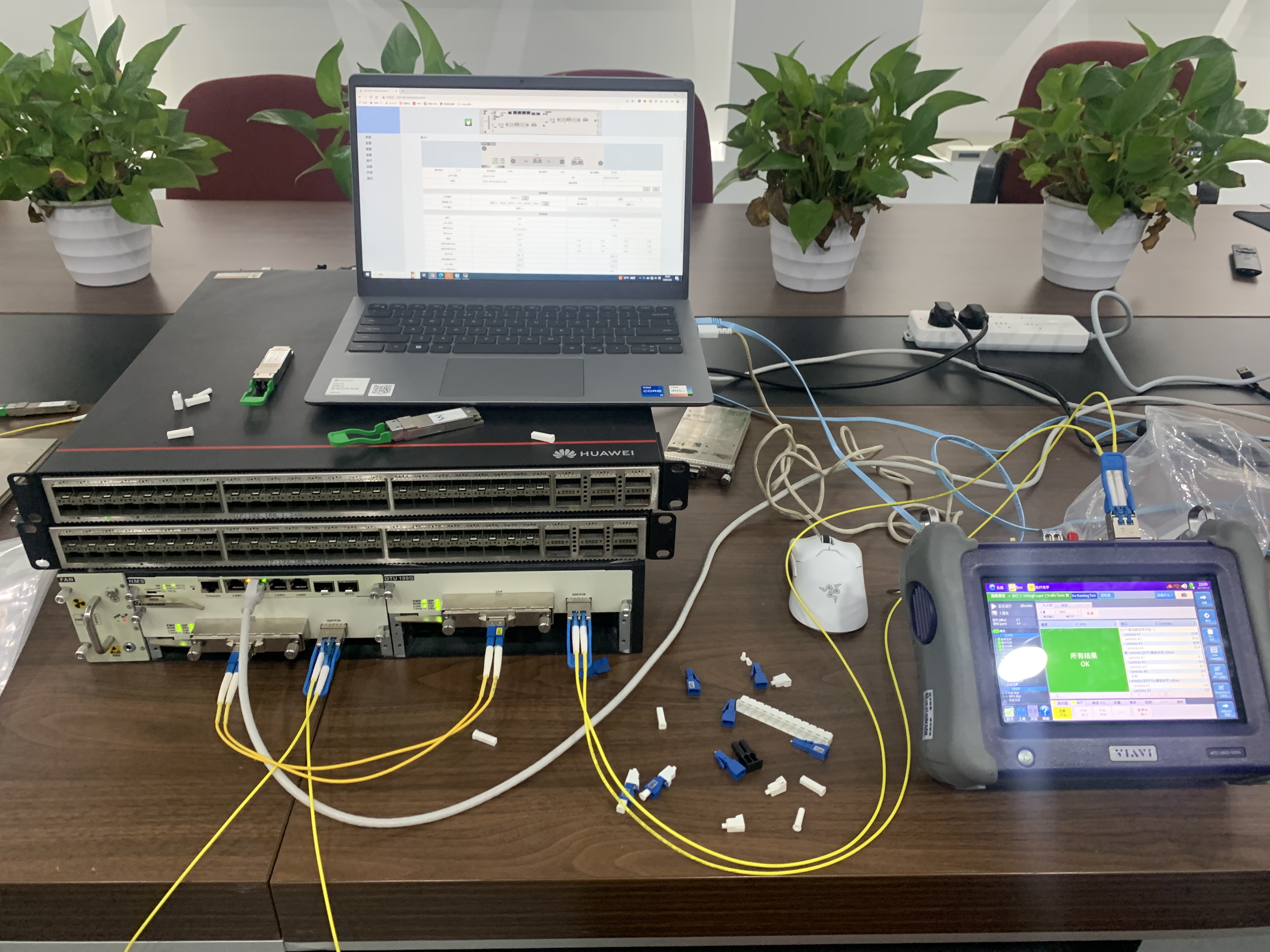

Product Photos
