Place of Origin: | Guangdong, China |
Model Number: | GTV |
Brand Name: | GCL |
Price: | 1 - 29 pieces $230, >= 30 pieces $200 |
MOQ: | Min. order: 20 |
Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Supply Ability: | 2000 Square Meter/Square Meters per Month |
Packaging Details: | Flightcase |
Application: | Indoor |
Type: | LED |
Color: | Full Color |
Panel Size: | 600*337.5mm |
Supplier Type: | Original manufacturer, ODM, OEM |
Media Available: | Photo, Other, video |
use: | advertising publish, retail store, shopping mall, display of dishes, welcome display, exhibition hall, airport, subway, elevator, Restaurant & Hotel Supplies, education, broading studio, monitoring center, meeting room, school classroom |
Pixel Pitch: | 1.2mm\1.5mm |
Specification: | Digital Poster, Video Wall |
Touch Screen Type: | Capacitive |
Brightness: | ≥600nits, ≥600nits |
pixel density: | 409600 |
Contrast Ratio: | 5000:1 |
Color Depth: | 256 |
Lifespan (hours): | 100,000 |
IP Rating: | IP 34 |
HS Code: | 8528591090 |
Resolution: | 2k-4k |
View Angle(H/V): | H160°/V160° |
Pixels: | 640000 |
LED type: | SMD1010 |
Scan Method: | 1/27 |
Module Size: | 150*168.5mm |
Weight: | 7.5kg |
Material: | Die-Casting Aluminum |
Protection Level: | IP34 |
Cabinet Maintenance: | Full Front Service |
Refresh Rate: | 3840Hz |
Company Info. |
Shenzhen GCL Electronics Co., Ltd |
Verified Supplier |
View Contact Details |
Product List |
Pixel: PH0.9mm/1.2mm/1.5mm/1.875mm

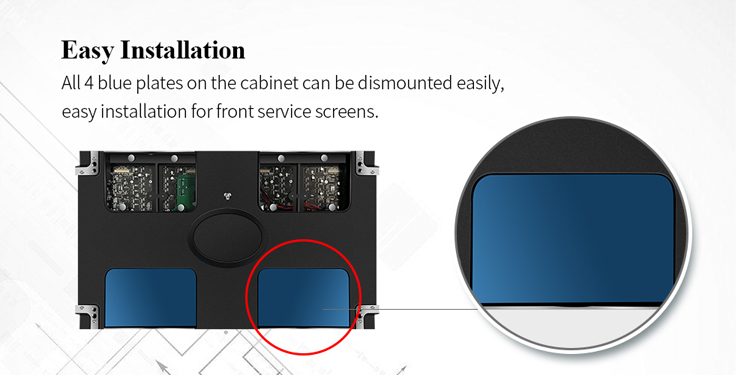

100% full front service maintenance
Full redundancy: power supply data, receiving card
63mm thickness, Ultra slim design
3840Hz~7680Hz high refresh
Cabinet 16:9 ratio
Weight: 6.5kg/panel
High Resolution
Fine pixel pitches form high resolution, which can capture and hold the attention of passerby.
Visual Performance
High contrast: The contrast ratio of the LED screen gives a sharp image quality.
Energy Saving
We use customized PCB and power supply, so average power consumption is less than 150W/sqm
Product | P0.9 | P1.2 | P1.5 | P1.875 |
Pitch | 0.9375mm | 1.25mm | 1.5625mm | 1.875mm |
Density(pixels/m²) | 1137777 | 640000 | 409600 | 284444 |
LED Type | Mini09 | SMD1010 | SMD1212 | SMD1515 |
Brightness | ≥600nits | |||
Scan Method | 1/36 | 1/45 | 1/54 | 1/45 |
Panel Size | 600×337.5×32mm | |||
Module Size | 150×168.75mm | 300×168.75mm | 300×168.75mm | 300×168.75mm |
Panel Material | Die-casting Aluminum | |||
Panel Weight | 4kg | |||
Protection Level | IP31 | |||
Maintenance | Full Front Service | |||
Max Power Consumption | 450W/㎡ | 450W/㎡ | 450W/㎡ | 450W/㎡ |
Average PowerConsumption | 150W/㎡ | 150W/㎡ | 150W/㎡ | 150W/㎡ |
Refresh Rate | ≥3840Hz | |||
Grey Scale | 13-16bit | |||
Viewing Angle | H160°,V160° | |||
Voltage | AC100~240V(50-60Hz) | |||
Working Temperature | -20℃to 60℃ | |||
Working Humidity | 10%-90%RH | |||
Color Temperature | 3000-9500K | |||
Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO |
![]() |
