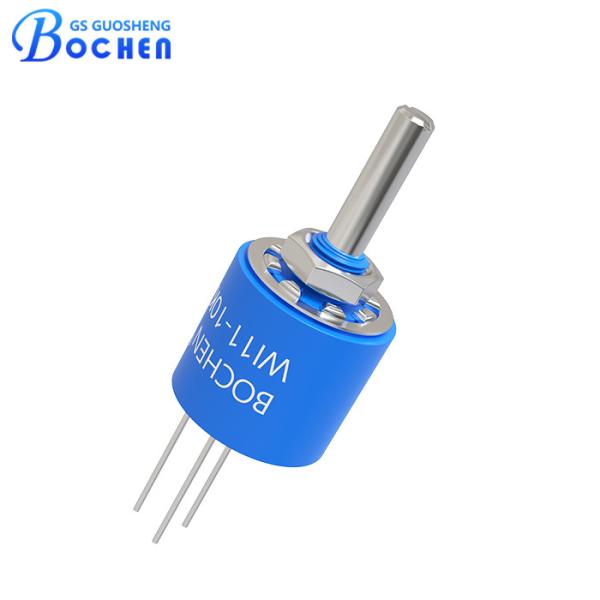

10% Panel Mount Rotary Trimmer Potentiometer 10k Ohms WI11-1

WI11-1 10k Ohms 10% Panel Mount Single Turn Cermet Trimmer Potentiometer

Feature

• 13mm diameter cermet trimmer.

• Single turn rotary potentiometer.

• With a extended shaft.

• Nominal resistance 10k ohms, tolerance 10%.

• Power rating 1w at 70℃.

• Adjustment angle 220°, total mechanical angle 250°.

Description

The WI11-1 cermet trimmer potentiometer is a high-quality, single-turn rotary device with a 13mm diameter, designed for precise resistance adjustments. Featuring an extended shaft, this trimmer potentiometer offers a nominal resistance of 10k ohms with a tolerance of 10%. It boasts a robust power rating of 1 watt at 70℃, ensuring reliable performance under various conditions. The adjustment angle is 220°, providing fine-tuned control, while the total mechanical angle extends to 250°, allowing for comprehensive range adjustments. This makes the WI11-1 an ideal choice for applications requiring accuracy and durability.

Specification

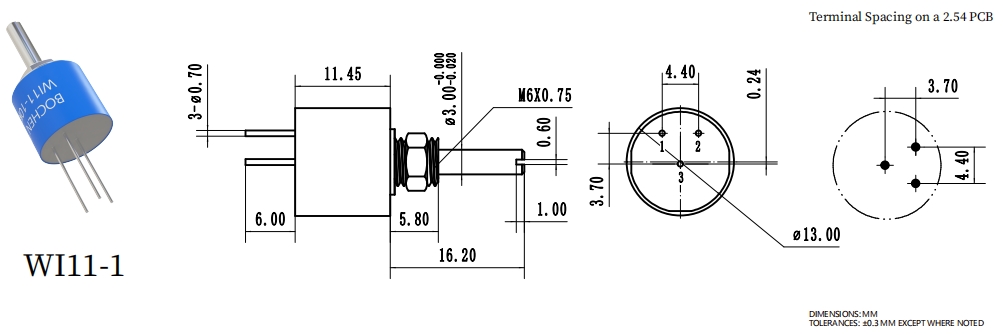

Dimension

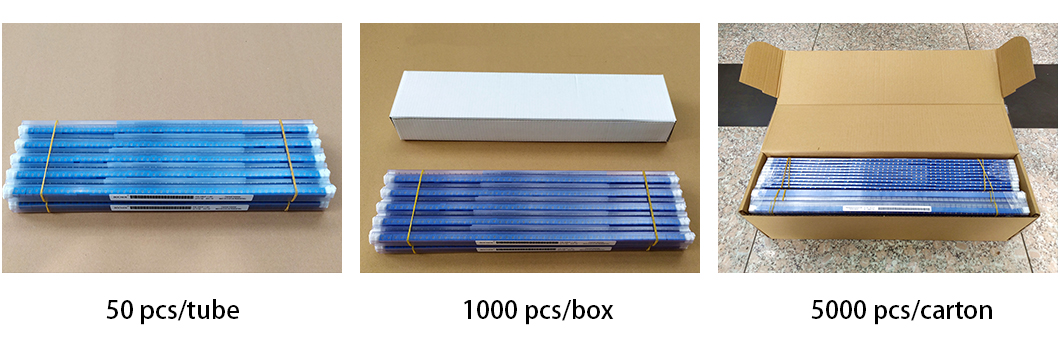

Packaging

Packaging specification:Standard Packing 50 Pieces/Tube.

Applications

The WI11 cermet trimmer potentiometer is used in various applications due to its precision and reliability. Here are some key application areas:

• Telecommunications: Used in tuning and calibration of communication devices.
• Medical Equipment: Essential for precise control in diagnostic and monitoring devices.
• Industrial Automation: Employed in control systems for machinery and processes.
• Consumer Electronics: Utilized in adjusting settings in devices like audio equipment and home appliances.
• Automotive: Used in electronic control units and various sensor applications.
• Aerospace: Critical for calibration and adjustment in avionics and other aerospace systems.
• Instrumentation: Applied in measurement and testing instruments for accurate control and calibration.

These diverse applications highlight the versatility and importance of cermet trimmer potentiometers in modern technology.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
