3540S-1-103L Rotary Precision Wirewound Potentiometer Variable Resistor 10k Ohm 10 Turn

3540S-1-103L 10k Ohms Variable Resistor Rotary Precision Wirewound Potentiometer

Quick Detail:

• Lead-free.

• Shaft sizes can be customised.

• Nominal resistance 10k ohms.

• Power rating 2W at 70℃.

• Resistance tolerance 5%.

• Independent linearity 0.25%.

• High precision rotary wirewound potentiometer.

• 10 turns wirewound, customised 3 turns, 5 turns available.

• Actual electrical travel ≥3600°-10°, total mechanical travel 3600°±10°.

Description:

The 3540S-1-103L is a lead-free, high precision rotary wirewound potentiometer designed for applications demanding accurate resistance control. It features a 10-turn wirewound mechanism and offers a nominal resistance of 10k ohms with a tolerance of 5%. The potentiometer is capable of handling a power rating of 2W at 70℃, making it suitable for various demanding environments. With an independent linearity of 0.25%, it ensures precise adjustments. The actual electrical travel is greater than or equal to 3600°-10°, while the total mechanical travel is 3600°±10°, providing extensive adjustment capabilities. Additionally, the shaft sizes can be customized to meet specific requirements, enhancing its versatility and reliability in precision applications.

Specification:

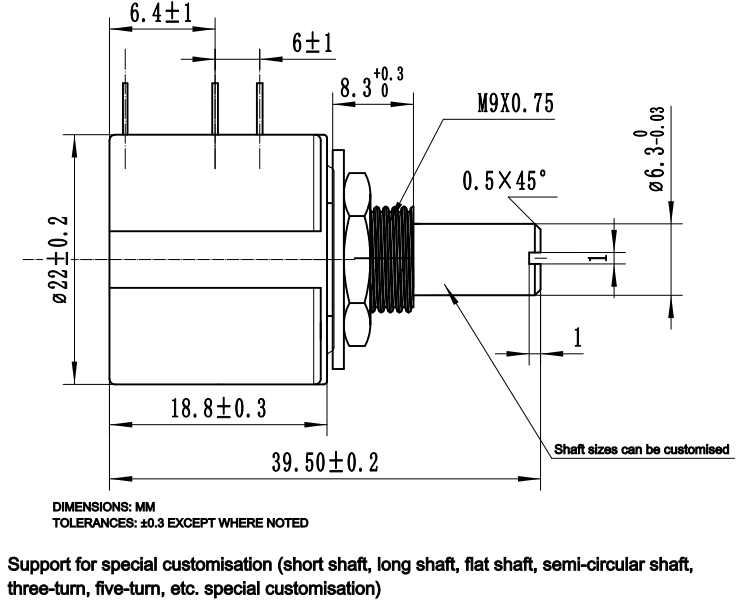

Dimension:

Packaging:

Packaging specification: 20 pieces/box, 50 pieces/box.

Applications:

• Pedal position.
• Joystick controls.
• Valve control.
• Wind vane.
• Panel control.
• Test and measurement.
• Medical equipment.
• Angular position.

Advantage:

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM&ODM available.
