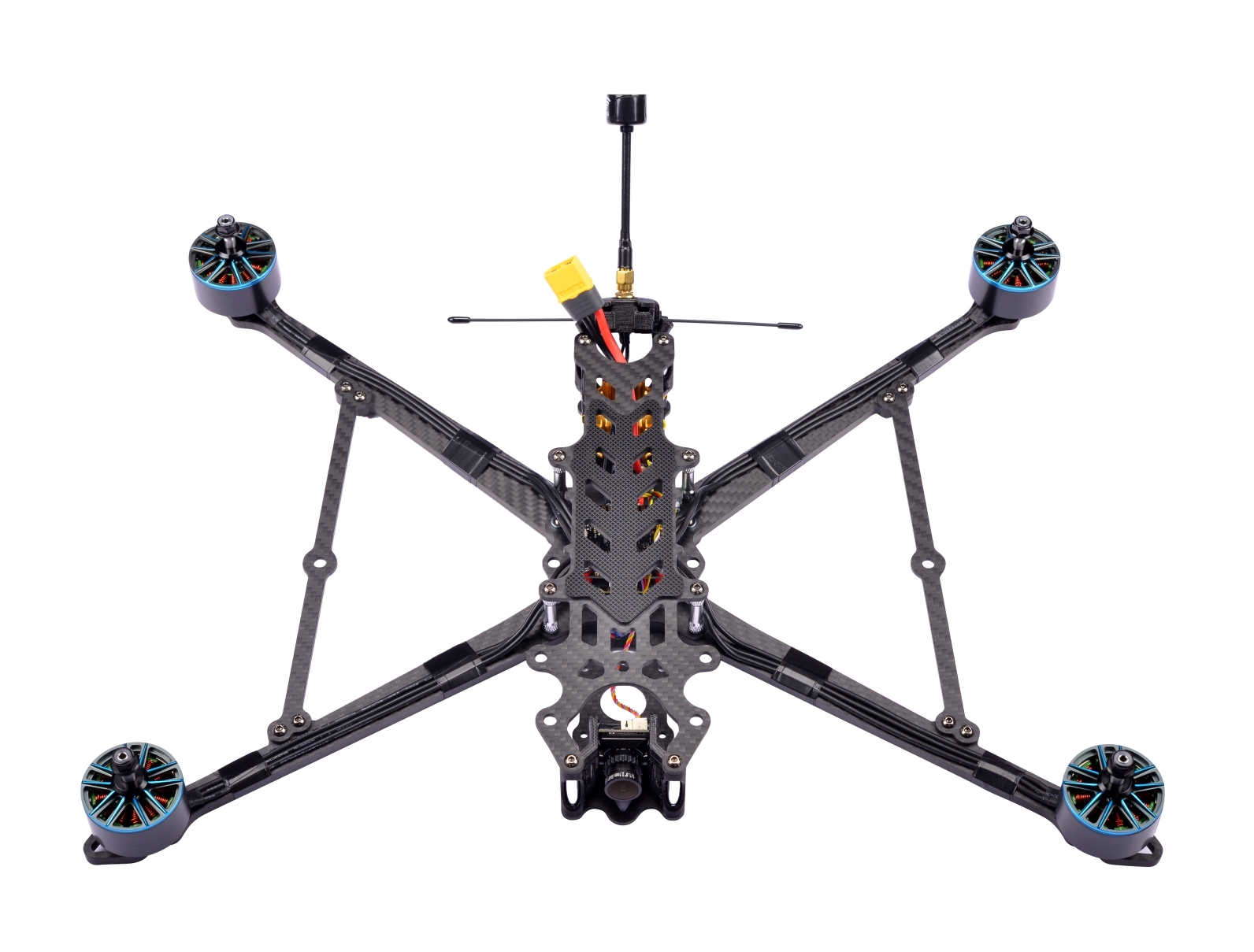

FPV Thermal Camera FPV Night Vision Camera FPV Drone Geprc Mark4 10
inch Heavy Payload Long Time Flight For RC Hobby
Normal FPV plus an AI module. The takeoff and remote control flight
operation is the same as normal FPV, the only difference is that
operator switch the FPV to AI guided mode by CH7 when the operator
see the target in the glasses and then the FPV will attack the
target automatically.
The operator could switch the FPV to remote control mode from AI
guided mode to stop the FPV automatically attacking the target.
1. Size and Design:
The 10-inch propeller size refers to the diagonal measurement of
the propellers, which are typically larger than those used on
smaller drones, providing more thrust and stability.
These drones are compact and lightweight, yet durable, allowing for
easy portability and quick deployment.
FPV | 10 inches |
ESC | 70A |
Max loading | 4KG |
Flying distance | 10km |
Camera | 1200TVL, 480P |
5.8GHz 2.5W VTX*1 | 4.9G-5.8G 2.5W |
Motor | 3115-900KV |
1050x3 | 10-inch 3-blade propeller |
Receiver *1 | elrs 915 Receiver |
AI module | cars,people,buildings… |
No load endurance of about 20 minutes (6S1P 4200mah battery) |
Load 3.5 KG endurance for about 8 minutes (6s 8000mah battery) |
AI module support both AI guided mode and remote control mode |

2. Performance and Capabilities
10-inch FPV drones are capable of high speeds and acrobatic
maneuvers, making them ideal for drone racing and freestyle flying.
They often come equipped with powerful motors and high-performance
batteries, enabling extended flight times and fast acceleration.

3. Camera and FPV Equipment
Most 10-inch FPV drones are equipped with a high-definition camera,
typically capable of capturing high-resolution video and images.
The FPV equipment, including a video transmitter and FPV goggles or
a monitor, allows the pilot to see in real-time what the drone's
camera is capturing, providing an immersive flying experience.

4. Flight Controller and Stabilization
Advanced flight controllers with gyroscopes and accelerometers
ensure stable flight, even at high speeds.
These drones often feature advanced stabilization algorithms to
keep the drone steady during flight, essential for capturing smooth
video footage.
5. Customizability and Upgradability
Many 10-inch FPV drones allow for a high degree of customization,
including the ability to swap out motors, propellers, batteries,
and cameras to suit specific flight needs.
Some models also support advanced features like GPS tracking,
altitude hold, and return-to-home functionality for safer flights.
6. Uses and Applications
These drones are popular for drone racing, aerial photography, and
videography.
They are also used for search and rescue operations, inspection
tasks, and other commercial applications where agility and
maneuverability are crucial.
In summary, a 10-inch FPV drone offers a unique flying experience,
combining speed, agility, and high-quality imaging capabilities.
Whether you're a hobbyist or a professional, these drones provide
an exciting way to explore the world from a new perspective.


| SKY040 | SKY040 PRO | SKY04X PRO |
Screen | OLED | OLED | OLED |
Resolution | 1024*768 | 1280*720 | 1920*1080 |
Fileld of View | 38 | 42 | 52 |
Aspect Ratio | 4:3/16:9 |
Focus Range | -6~+2 |
IPD Range | 58~71mm |
Receiver | 5.8Ghz48CH Steadyview Receiver |
DVR | 60FPS H264 | 60FPS MJPEG | 60FPS H264 |
Voltage Input | 2~6S LiPo |
HDMI IN | 60FPS | 720P 100FPS |
Language | 10 Languages |
Head Tracker | 3-axis Accelerometer,3-axis gyroscope |
Fileld of View | 38 | 42 | 52 |
Aspect Ratio | 4:3/16:9 |
Focus Range | -6~+2 |
IPD Range | 58~71mm |
Receiver | 5.8Ghz 48CHSteadyview Receiver |
DVR | 60FPS H264 | 60FPS MJPEG | 60FPS H264 |
Voltage Input | 2~6S LiPo |
HDMI IN | 60FPS | 720P100FPS |
Language | 10 Languages |
Head Tracker | 3-axis Accelerometer,3-axis gyroscope |

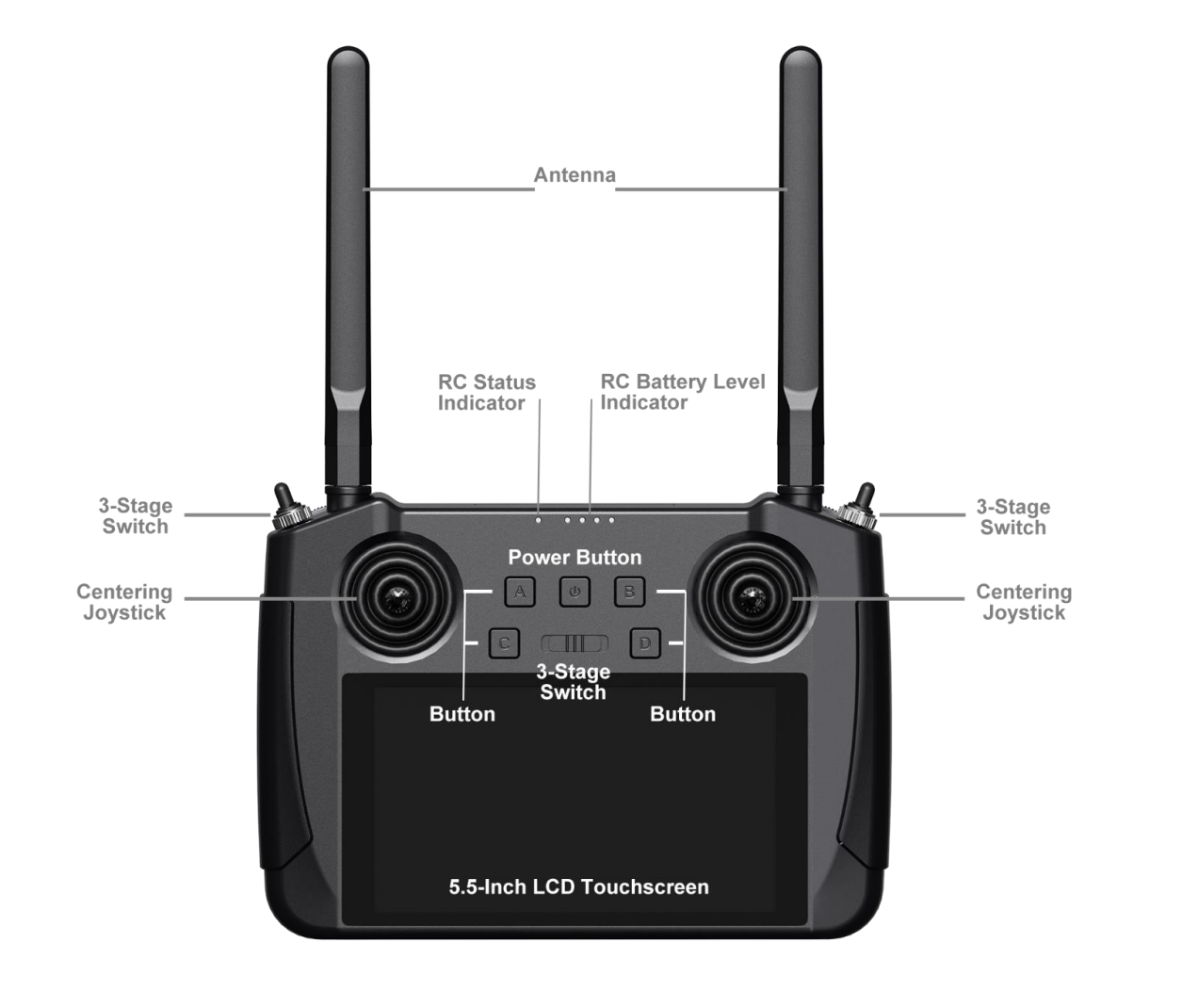

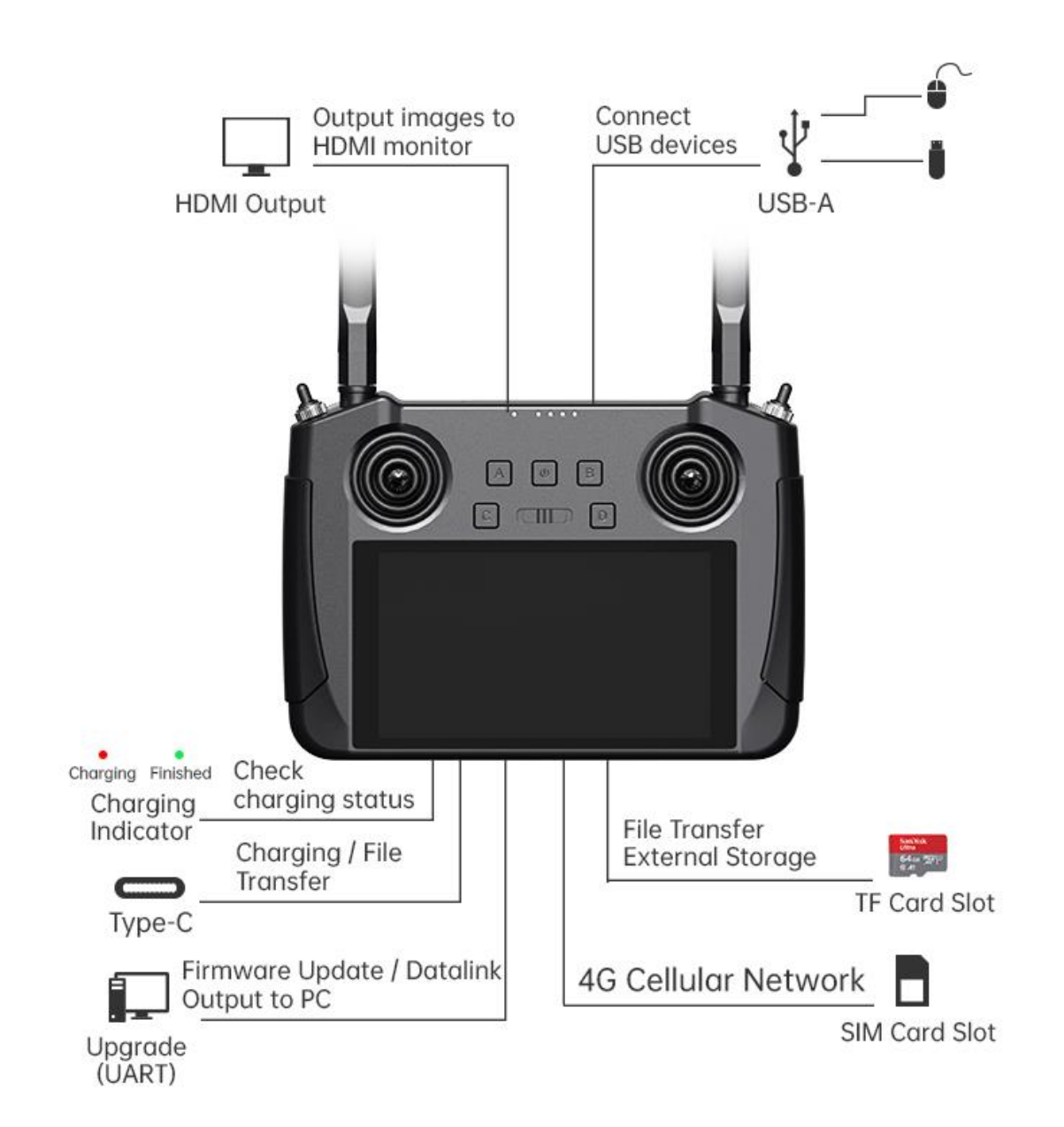

MK15 Agriculture Edition is a smart remote controller with
screen,equipped with low-latency wireless high-definition image
transmission technology and Qualcomm eight-core CPU chip platform.
The communication distance is deeply optimized for low-altitude
scenes unique to agriculture operations.MK15 carries a 1080p high-
definition bright display,which is powerful,stable,and reliable.It
is compatible with the A2 mini ultra-wide-angle FPV gimbal or the
IP67 waterproof camera exclusive for agriculture drones and is
suitable for popular drone frames and flight controllers.
