Drone detection 360 degree drone detector UAV signal detection and location anti Drone Defense Equipment

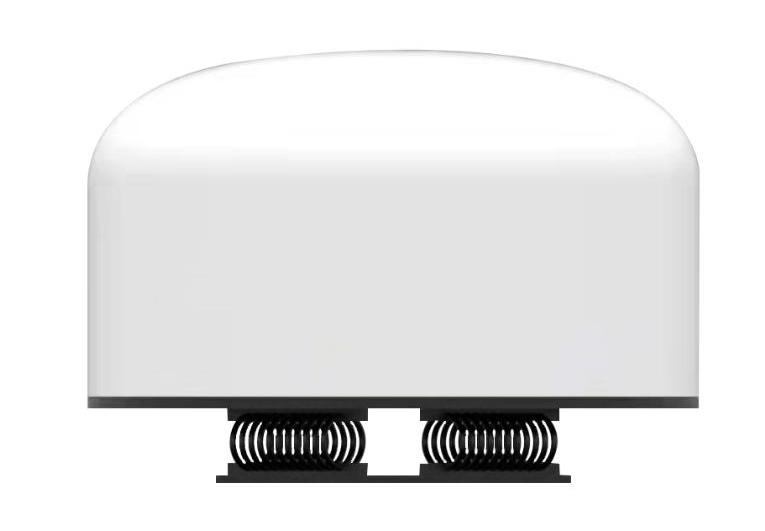

This vehicle mounted drone detection and control integrated equipment integrates detection, positioning, and countermeasures units, which can achieve detection, identification, positioning, tracking, and interference disposal of invasive drones. This device can monitor the serial number, model, position (longitude, latitude, azimuth), speed, altitude, takeoff point, return point, trajectory, remote control position (longitude, latitude, azimuth) and other multidimensional information of drones within the monitoring range through deep analysis and data mining of drone signals. The equipment adopts an integrated industrial design, with a simple and concealed appearance, strong environmental adaptability, flexible deployment methods, and can be installed and erected in a vehicle or fixed manner.
This device is suitable for low altitude security in scenarios such as large-scale event support, public security patrols, border defense, accompanying protection of political figures, military management zones, power and petrochemical parks, and airports. It can work offline on a single machine, flexibly and quickly deploy, and respond flexibly, meeting the needs of various scenarios.

Product Composition

Function

1)Drone detection: It can detect and identify the brand, model, frequency, and other information of invading drones.
2)Drone positioning[1]: It can locate the position information of the DJI series of drones, and display real-time drone position (longitude and latitude), azimuth information, distance information (distance from the drone to the location of the equipment), speed, height, etc.
3)Pilot Positioning[2]: It can locate the position information of the flying hand of the DJI unmanned aerial vehicle, and display the real-time position (longitude and latitude), azimuth information, and distance information of the flying hand (remote control) relative to the position of the equipment.
4)Unique identification code recognition[3]: It can identify the unique serial number of the DJI series drone and confirm the unique identification information of the drone.
5)Integrated detection and strike: The device can automatically counter attack the drone after detecting and identifying it.
6)Multi target trajectory tracking[4]: Capable of achieving multi target drone positioning and tracking, while displaying multiple drone flight trajectories.

System Function

1)Black and white list[5]: It can distinguish between cooperative and non-cooperative drones, and the device will not give an alarm when detecting cooperative drones. It can also label cooperative drones with trust.
2)Intrusion alarm: When a drone invasion is detected, an audible or visual alarm will be triggered.
3)Trajectory playback: Support drone flight trajectory playback, assist security personnel in analyzing historical drone flight data.
4)Detection Record: The detection record list can retain historical detection records, including multidimensional information such as drone serial number, model, frequency, etc.
5)Data and information visualization analysis: Support UAV detection and flight data statistical analysis, which can be presented by visualization methods such as thermal diagram and Line chart;
6)Electronic map: Supports electronic map switching, including Gao de, Bing, Baidu, etc.
Note: [1]-[5] only applies to DJI series with OcuSync protocols.

Product Features

1)Integrated design: All working modules of the equipment are integrated into a protective cover, which adopts a low wind resistance design to maintain stability and safety of the vehicle in high-speed motion;
2)Mobile operation: The equipment has the ability to detect and counter drones during high-speed movement;
3)All detection models: The system can identify and detect common brands of drones such as DJI, AUTEL, Dahua, YUNEEC, as well as the vast majority of models on the market such as self-made traversing machines and WiFi machines;
4)Passive detection: The equipment does not emit any electromagnetic signals, has no electromagnetic environmental pollution, and is environmentally friendly;
5)Three all-around readiness: The equipment operates continuously day and night for 7*24 hours, 24/7 (suitable for complex electromagnetic environments and harsh weather environments), and provides comprehensive (360° detection of drone intrusion) security in the core area;
Multi-unit network: Devices can be connected to the backend control platform through networking, and the multi-unit network meets the needs of large area coverage.

Product Index Parameters

Product Performance Indicators - Detection Positioning

Product Performance Indicators - Reaction

Mechanical Parameters

Electrical Characteristics

Environmental Adaptability
