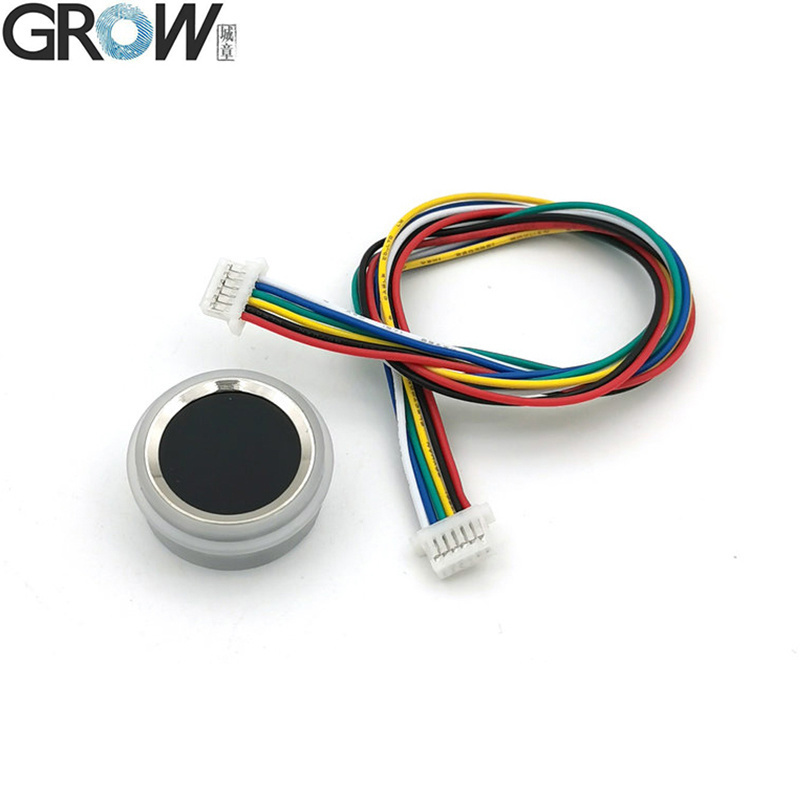

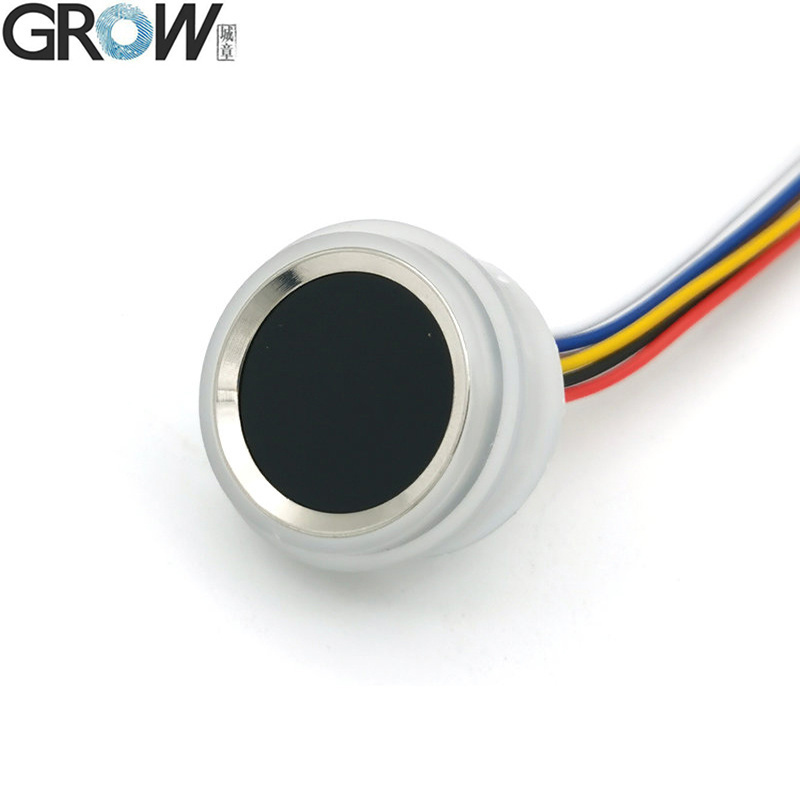

Grow R502-F IP65 Waterproof Small DC3.3V RGB LED Diameter 21.5mm SH1.0-6pin Capacitive Round Fingerprint Module

Grow R502-F IP65 Waterproof Small DC3.3V RGB LED Diameter 21.5mm SH1.0-6pin Capacitive Round Fingerprint Module

Grow R502-F IP65 Waterproof Small DC3.3V RGB LED Diameter 21.5mm SH1.0-6pin Capacitive Round Fingerprint Module
Grow R502-F IP65 Waterproof Small DC3.3V RGB LED Diameter 21.5mm SH1.0-6pin Capacitive Round Fingerprint Module
Categories Fingerprint Sensor Module
Place of Origin: China
Certification: CE
MOQ: 1
Packaging Details: Carton
Delivery Time: Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms: T/T,PayPal
Supply Ability: 5000
Model NO.: R502-F
Screen: as Picture
Communication Interface: RS232
Fingerprint Capacity: 200
Voltage: DC 3.3V
Effective Collection Area: Diameter 15.5 (mm)
Sensing Array: 190*190 Pixel
Resolution: 508 Dpi
Abrasive Resistance Intensity: 1 Million Times
Antistatic Capacity: 15kv
Fingerprint Module External Diameter: 21.5mm
Fingerprint Module Inner Diameter: 19.4mm
Fingerprint Module Height: 9mm
Weight: 5g
LED Control: Yes
Transport Package: Standard Export Carton Package
Specification: Diameter 22 (mm)
Trademark: GROW
Origin: China
HS Code: 8471609000
Voice Service: Without Voice Service
Clock: Without Clock
Color: as Picture
Samples: US$ 13.89/Piece 1 Piece(Min.Order) |
Customization: Available | Customized Request
Shipping Cost: about shipping cost and estimated delivery time.
Payment Method: Initial Payment Full Payment
Currency: US$
Return&refunds: You can apply for a refund up to 30 days after receipt of the products.
Contact Now
Company Info.
Hangzhou Grow Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Grow R502-F IP65 Waterproof Small DC3.3V RGB LED Diameter 21.5mm SH1.0-6pin Capacitive Round Fingerprint Module


Grow R502-F IP65 Waterproof Small DC3.3V RGB LED Capacitive Fingerprint Module

Description

1. Integrated image collecting and algorithm chip together, ALL-in-One
2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box
The R502-F is waterproof design.(Except the connector part, after install the R502-F, you can protect it by yourself)
R502-F can connect with K200-3.3,K202,K215-V1.3,K216,K219-A,K220,K236-A Fingerprint control board.


***The different between R502-F with R502-A:
R502-F is waterproof design. R502-A is not.
Size have a little different.


***The different between R502-F with R503:
R503 have a zinc alloy enclosure, easy for installation. You can make a M25 hole and install it directly.
R502-F don't have enclosure, but it is smaller and waterproof.


***The different between R502-F with R502:
R502 LED is on the top of module, size is very thin.
R502-F is round LED, thicker than R502, but waterproof.

R502-F Specifications

ModelR502-F
TypeCapacitive Fingerprint Module
InterfaceUART(TTL)
Resolution508 DPI
VoltageDC 3.3V
Fingerprint Capacity200
Sensing array192*192 pixel
Working current20mA
Standby currentTypical touch standby voltage: 3.3V, Average current: 2uA
Fingerprint module external sizeDiameter 21.5 (mm)
Fingerprint module inner sizeDiameter 19.4 (mm)
Fingerprint module height9 (mm)
Effective collection areaDiameter 15.5 (mm)
ConnectorMX1.0-6Pin
LED ControlYES
LED ColorRGB
Scanning Speed< 0.2 second
Verification Speed< 0.3 second
Matching Method1:1; 1:N
FRR≤1%
FAR≤0.001%
Work environment-20C ---60C
Work Humidity10-85%
Anti-static capacity15KV
Abrasive resistance intensity1 million times
Communications baud rate (UART):(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

Files

·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual

You can download the R502-F user manual from this website link:
https://hzgrow.en.made-in-china.com


R502-F Operation display video on Youtube: https://youtu.be/8w_bkgwTabE


If need SDK files,pls contact us.
