6501 High Precision Counting Scales 75kg 150kg 300kg Ultra Low Weighing Single Point Load Cell

Categories Shelf Weight Sensor
Brand Name: Ruijia
Model Number: RJ-6501
Certification: ISO9000
Place of Origin: China
MOQ: moq: 1pc
Price: $4-6
Delivery Time: One week
Packaging Details: carton box
Accuracy: ±0.05
Ultimate Overload: 150%
Safe Overload: 120%
Sensitivity: 1.5±0.2 MV/V
Protection: IP65
Insulation Resistance: ≥5000 MΩ(50VDC)
Linearity: 0.2 %FS
Temperature Effect on Zero: ≤0.02 %FS/10℃
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

6501 High Precision Counting Scales 75kg 150kg 300kg Ultra Low Weighing Single Point Load Cell

Product Description:

What is 6501 Planar Beam Load Cell?
6501 planar beam load cell range is designed for applications where a low profile solution is needed. Typically, our planar beam load cells would be used in sets of three or four per scale in applications such as retail scales, medical scales or any weighing environment where space is a limiting factor. For optimum performance, use Ruijia load mounts and high precision measuring electronics with these load cells.

What is 6501 load cell FEATRUES?

* Anodized aluminum alloy construction
* Ultra-low profile
* Wide range of capacities
* Can be used as single or multiple load cell structured platform scales
* Widely used for low profile infant and adult medical scales, low profile platform scales, personal scales,
airport baggage scales, postal scales , medical equipment, test & measurement applications

Dimensions:




Technical Parameters:


CapacityKg5/10/25
SensitivitymV/V1.5±0.2
Sensitivity%FS0.05
Creep(5min)%FS

0.02

Input ResistanceΩ395±20
Output ResistanceΩ350±5
Insulation ResistanceM Ω≥5000(100VDC)
Zero Balance%FS±1
Temperature Effects on Span%FS/10℃0.05
Temperature Effect on Zero%FS/10℃0.05
Rated Temperature Range-10~+60
Operating Temperature Range-20~+80
Proposed Excitation VoltageV6~12
Allowed Excitation VoltageV3~15
Safe Overload%FS120
Ultimate Overload%FS150
ProtectionIP65
Cable specificationmmΦ1Electronic wiring
Cable lengthm0.4
MaterialAluminum Alloy

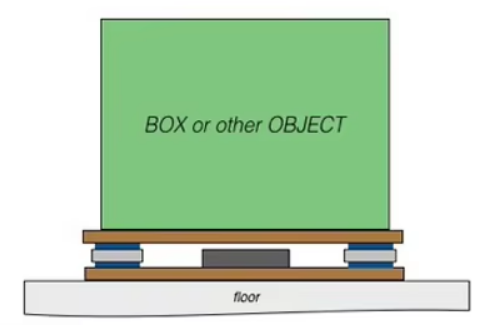

Application
Company Profile

A load cell is one of the most used weight / force measurement devices. Load cells can be
found almost anywhere, from the retail market to the hospital and defence. The use of a
load cell is not restricted to a single industry or application.

Ruijia has 18 years of experience in load cell Manufacturing for Aerospace, Neonatal,
Health Care, Food, Medical & Pharmaceutical, Military, Automobile, Rail & Road Weigh
Bridge, Oil & Gas, Marine, Textile & Paper, Mines & Petrochemical, Aviation, Poultry
Equipment, Steel & Cement Industries & Chemical Industrial Applications.

-----------------------------------------------------------------------
