3.5mm 50X100MM Different Post Types 3d Mesh Fence For Various Applications

3D Curved Welded Wire Mesh Fence With Different Post Types For Various Applications


3D Fence Panel is a fence panel made of superior quality welded mesh, and then folds one or more “V” shape curve(s) horizontally to create a 3D format. 3D FENCE PANEL is available in a wide range of styles, from ornamental to utilitarian, and for a wide array of applications ranging from privacy fencing to animal containment.

It is one kind of the welded mesh fences, formed by the iron wire, electronic galvanized wire, hot dipped galvanized wire, which are joined together welding the wires through welded mesh machine, and then bended into suitable angle in bending mesh machine.

After bending , there will be some more extra process such as powder coating, pvc coating etc.

Welded mesh fence are usual used in combination with peach post, square post,or round post. Customer can choose one of then by their preference

3D Curved Welded Wire Mesh Fence Specification:

• Material: low carbon steel wire or galvanized wire.
• Wire diameter: 3 mm to 8 mm.
• Mesh size: 50 mm × 100 mm, 50 mm × 150 mm, 50 mm × 200 mm, 75 mm × 150 mm, 75 mm × 200 mm.
• Panel height: 0.63 m to 2.43 m. Specially is 3.5 m to 4 m.
• Panel length: 2 m to 3 m.
• Curve quantity: 2, 3 or 4.

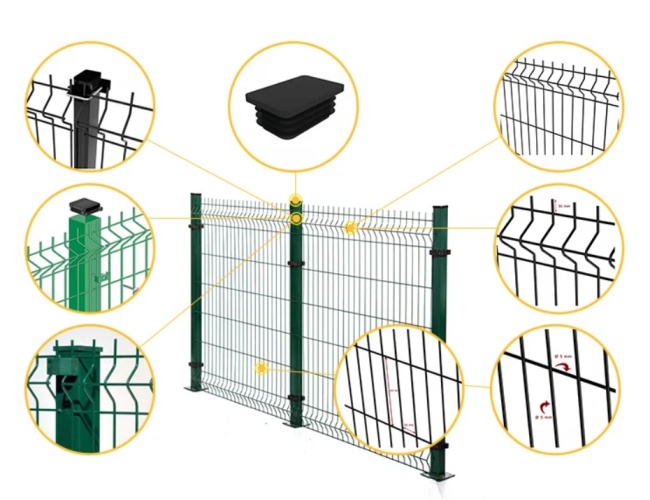

• Post type: peach post, square post, rectangular post and round post.
• Surface treatment:
  • Mild steel wire welding and then hot dipped galvanized.
  • Mild steel wire welding and then PVC coated.
  • Mild steel wire welding and then powder coated.
  • Galvanized steel wire welding and then PVC coated.
  • Galvanized steel wire welding and then Powder coated.​

Features Of 3D Curved Wire Mesh Fence :

• High strength.
• Corrosion and rust resistance.
• Weather resistance.
• Various colors for choice.
• Durable and long service life.
• Different installation types.
• Can suit different installation environments.
• Prevent intruders from entering the unwanted areas.

Hebei Yinghang Trade Co Ltd. Located in Shijiazhuang City,Hebei Province,China.For past 20 years,we Mainly in manufacturing and trading iron wire products and steel products.our company already passed the ISO9001 quality control system.

Our main products cover from Galvanized Wire, Black Annealed Wire, Welded Mesh,Hexagonal Mesh,Chain Link Fence, Conertina Wire, Gabions, Security Fence, Steel Coil, Nails, etc.

Our Products are widely used in constuction,coal,mine,petroleum and chemical industry,metallurgy,machinery and pharmacy,enviromental protection ,etc.already exported to America,South America,Europe,
Africa,Middle East,Southeast Asia ,etc.

we insist “Quality,intergrity,pragmatic,motivated and service-oriendted" to be our faith,and has a good reputation from all our old customers.

Looking forward to cooperate with you in near future also,trust we could become good business partner
