Low Price Guarantee 2.4-Inch IPS TFT LCD 10 Pin SPI Interface

2.4 Inch IPS TFT LCD SPI Interface 240*320 Dots Product Introduction

The 2.4-inch TFT LCD screen is a common active matrix LCD display device with high resolution, vivid colors, and fast response speed. It is widely used in embedded systems, consumer electronics, industrial control fields, and more. In the field of consumer electronics, 2.4-inch TFT LCD screens are widely used in smart wearable devices, portable game consoles, smart home control panels, and other products. Its full color and wide viewing angle meet consumers' requirements for display effects.

2.4-inch IPS TFT display with a resolution of 240 × 320 pixels provides clear image display. Its driver IC is ST7789V and supports multiple interfaces and high color depth. This model SFTO240JY-7179AN has an SPI interface and can achieve a brightness of 400cd/m ², adapting to different lighting conditions. It adopts IPS technology, providing a nearly 180 ° full field of view, ensuring a good visual experience from all angles. The product can operate between -20 ℃ and 70 ℃ and adapt to various environmental conditions. It can be stored between -30 ℃ and 80 ℃, ensuring that long-term storage will not affect its performance.

Features

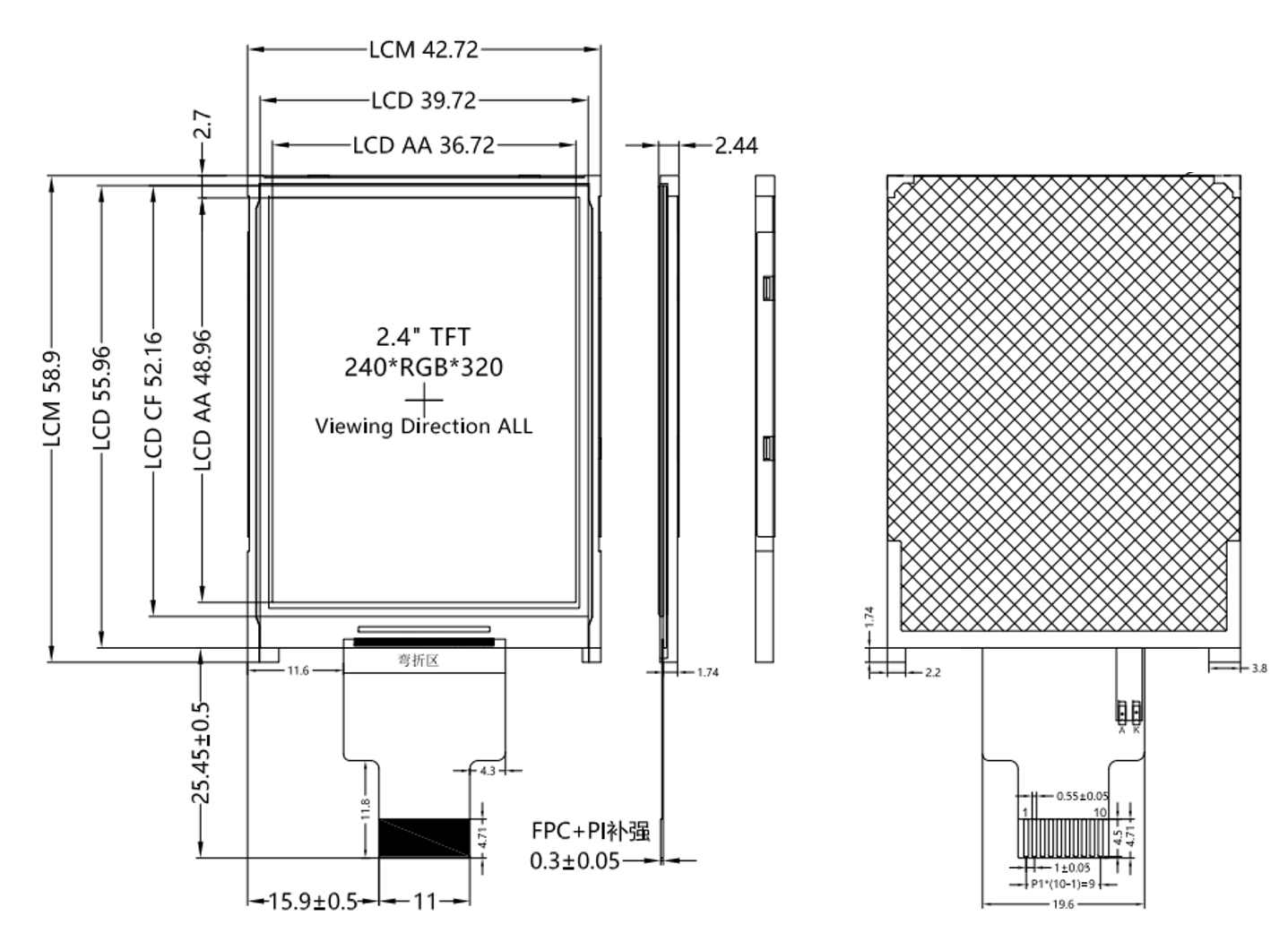

Outline Drawing

Interface Pin Description

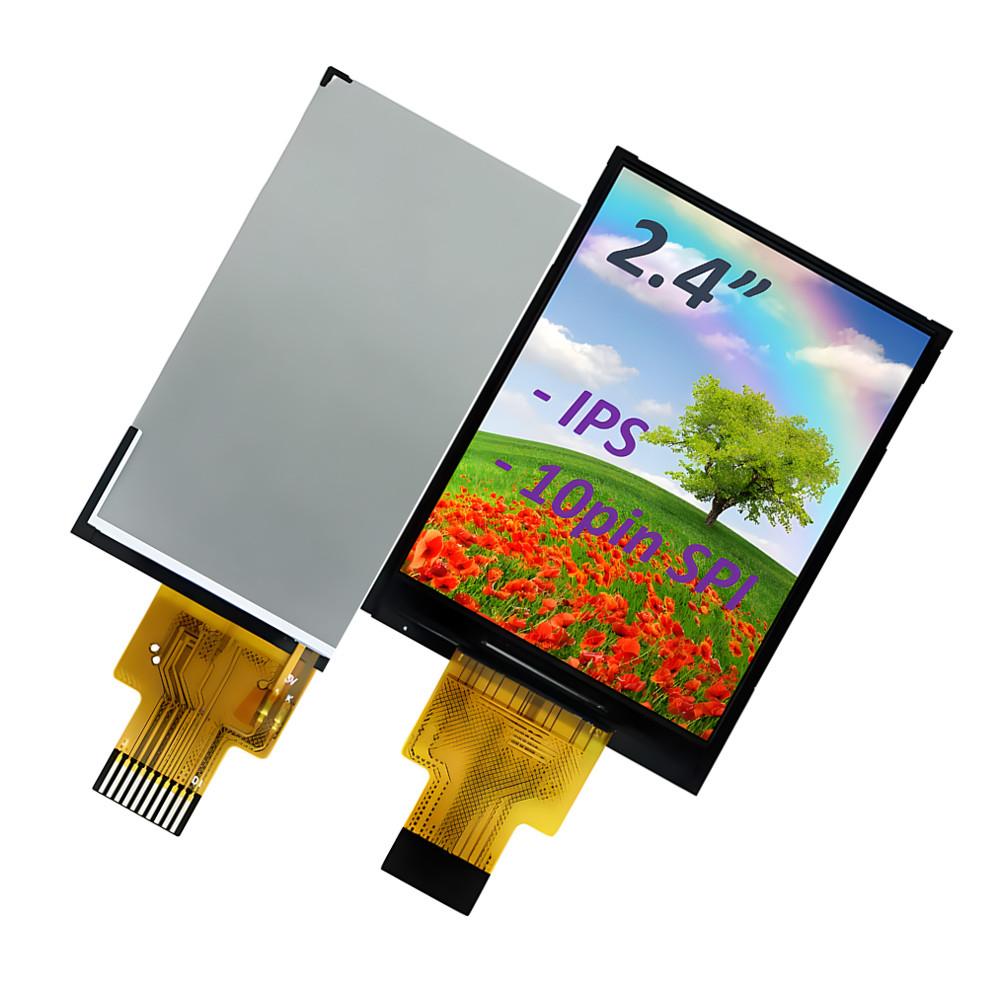

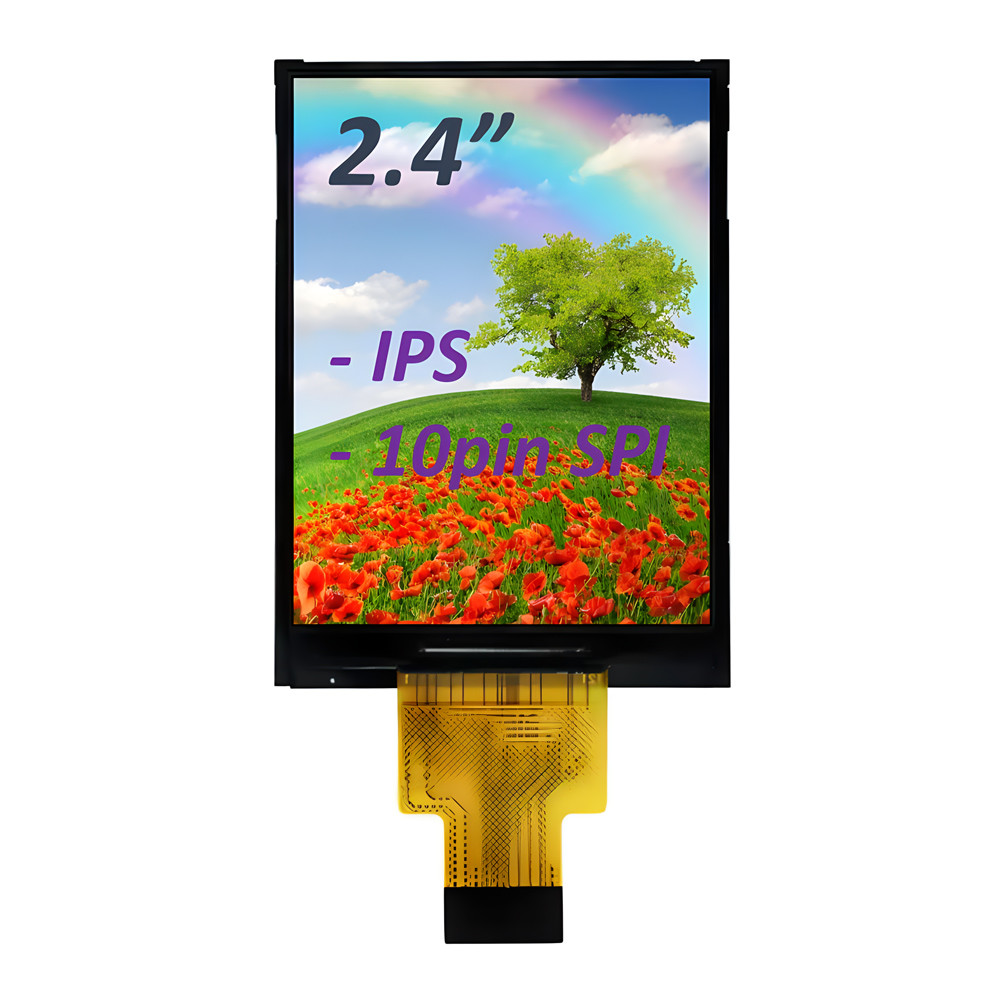

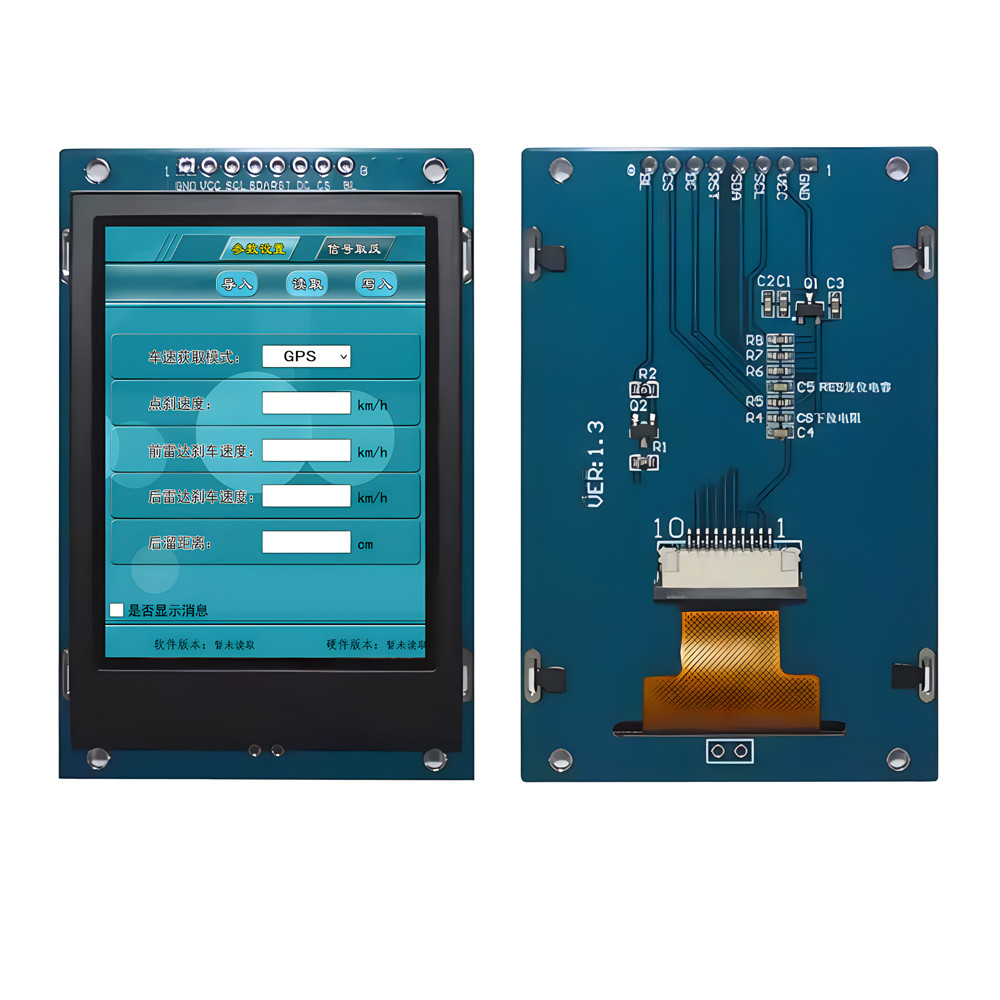

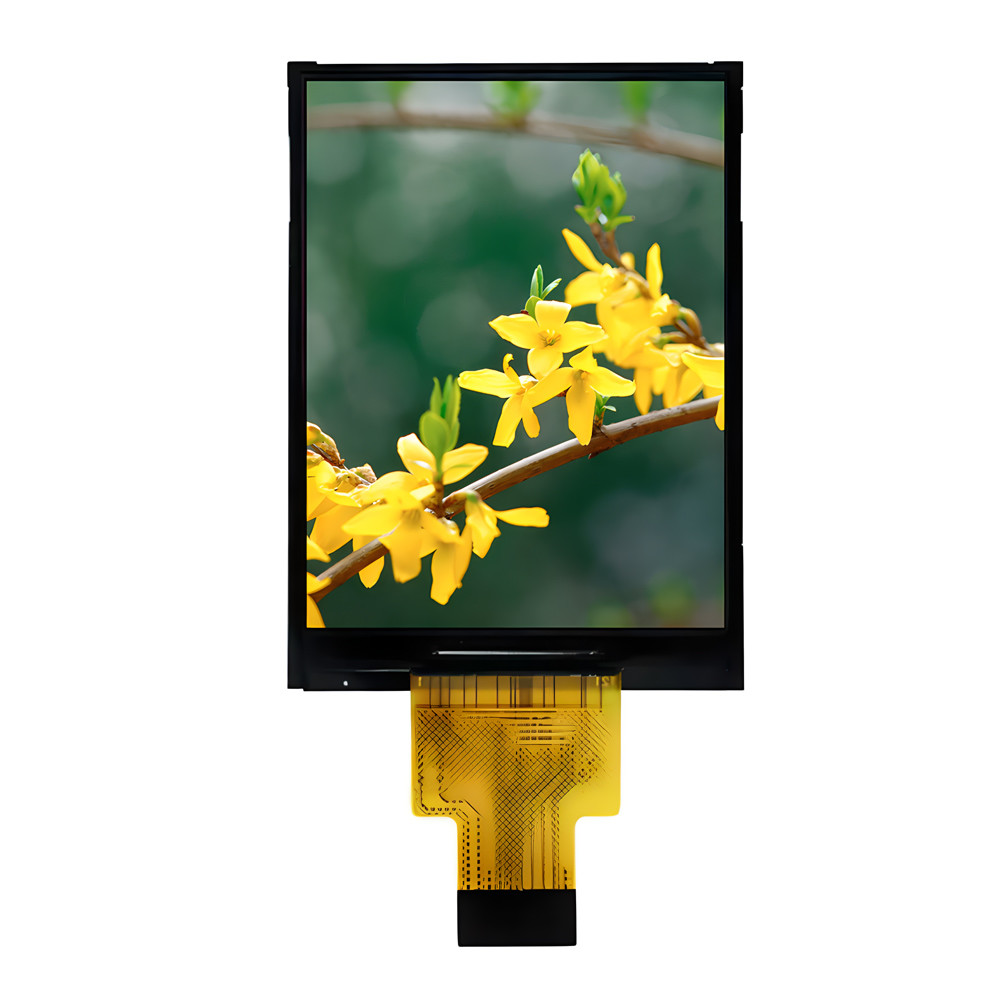

Product Photo

Facilities and Certificates

Search keyword: tft 2.4", 2.4 tft lcd, 2.4" tft lcd, 2.4 inch tft lcd, tft lcd 2.4, 2.4 tft display, 2.4" tft display, 2.4 inch tft display, tft display 2.4 inch, tft display 2.4", 2.4 inch tft lcd display, 2.4" tft screen, 2.4 inch tft screen, tft screen 2.4 inch, tft screen 2.4", 2.4 inch tft lcd screen

Founded in 2007, ShenZhen SAEF Technology Co., Ltd is committed to manufacturing and developing high-quality products for industrial LCD display, including TFT LCD, OLED, monochrome TN/STN/FSTN LCM display modules and system integration solutions. Saef Technology has become a leading enterprise in the field of small and medium size displays, and its continuous innovation has enable it to obtain a number of invention patents in the display field. With more than 14 years of experience, providing competitive products and services through stable product quality and professional pre-sales and after-sales service, SAEF technology has won the recognition of many international big brand companies and established long-term and stable cooperation with them.

Saef Technology is an ISO9001 and environmental ISO 14001 certified manufacturer. We provide 1 to 10 years warranty for all the company’s products. We are not only a display manufacturer but also a solution partner for our customers.

As a leading manufacturer in the display module market, Saef Technology will continue to focus on the research and development of new technologies such as TFT, OLED display, embedded systems integration solutions, and we will continue to provide customers display products with high cost performance.
