| Categories | Outdoor Armored Fiber Optic Cable |
|---|---|
| Brand Name: | HX Fiber |
| Model Number: | HX-A2-3.0 |
| Certification: | CE, ISO |
| Place of Origin: | Dongguan |
| MOQ: | 1 km |
| Price: | Negotiable |
| Supply Ability: | 1,000,000 km per month |
| Delivery Time: | Negotiable |

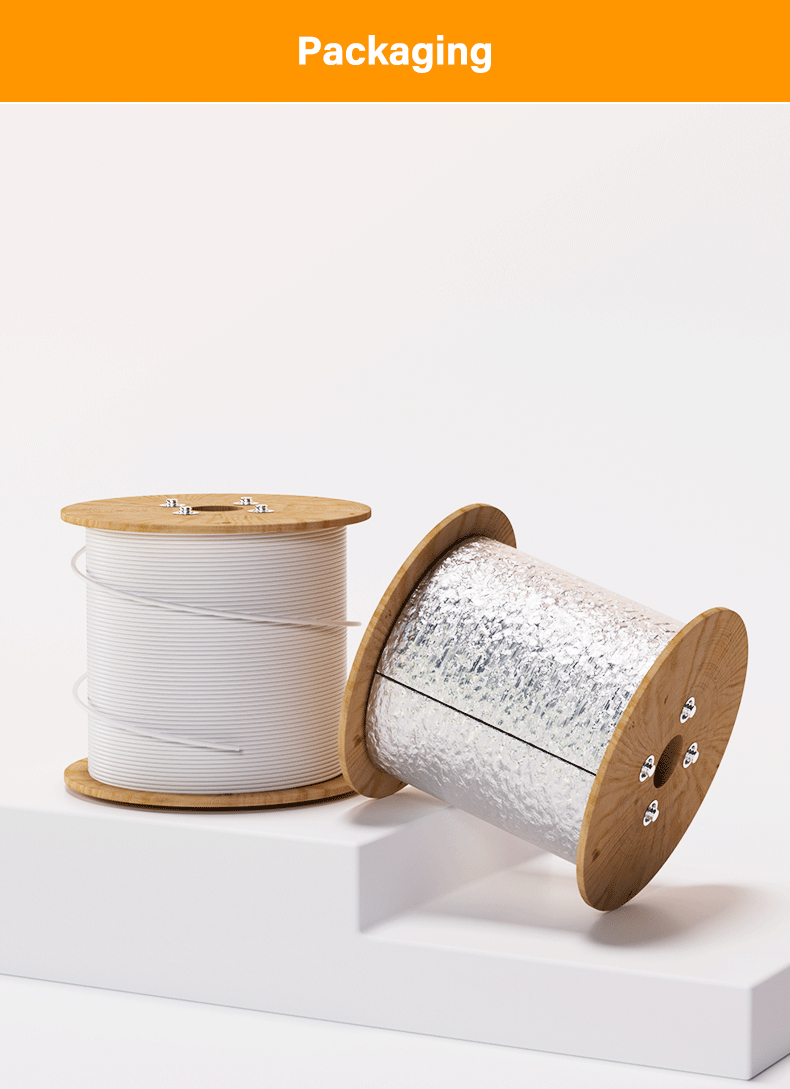

| Packaging Details: | Wooden shaft + export carton |
| Application: | Telecommunication,Aerial,Duct,Telecom,Network |
| Fiber type: | G657A2 |
| Fiber count: | Single core |
| Color: | White |
| Jacket: | LSZH |
| Length: | Customized length |
| Oem: | Available |
| Operating temperature: | -40 ~ +60 C |
| Company Info. |
| Dongguan HX Fiber Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
| Technical Specifications | |||

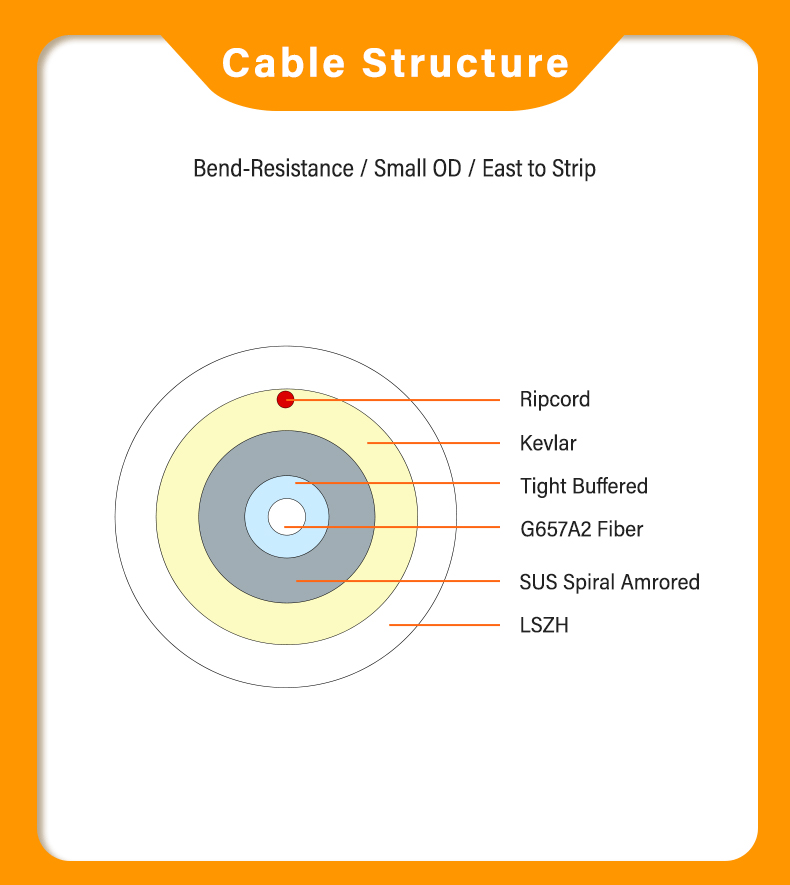

| Fiber Type | Single Mode G657A2 | Cable Construction | Simplex |
| Armor Type | Steel or aluminum tube for enhanced protection | Outer Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Outer Jacket Color | White | Cable Diameter | 3.0mm |
| Operating Temperature Range | -20°C to +70°C | Minimum Bend Radius | 15mm (installation); 10mm (operation) |
| Attenuation | ≤ 0.35 dB/km at 1310 nm; ≤ 0.22 dB/km at 1550 nm | Compliance | RoHS, REACH, and IEC standards |
Key Features
Single Mode Fiber (G657A2): The cable utilizes G657A2 single mode fiber, which offers excellent bend performance and is optimized for use in tight spaces without compromising on signal quality.

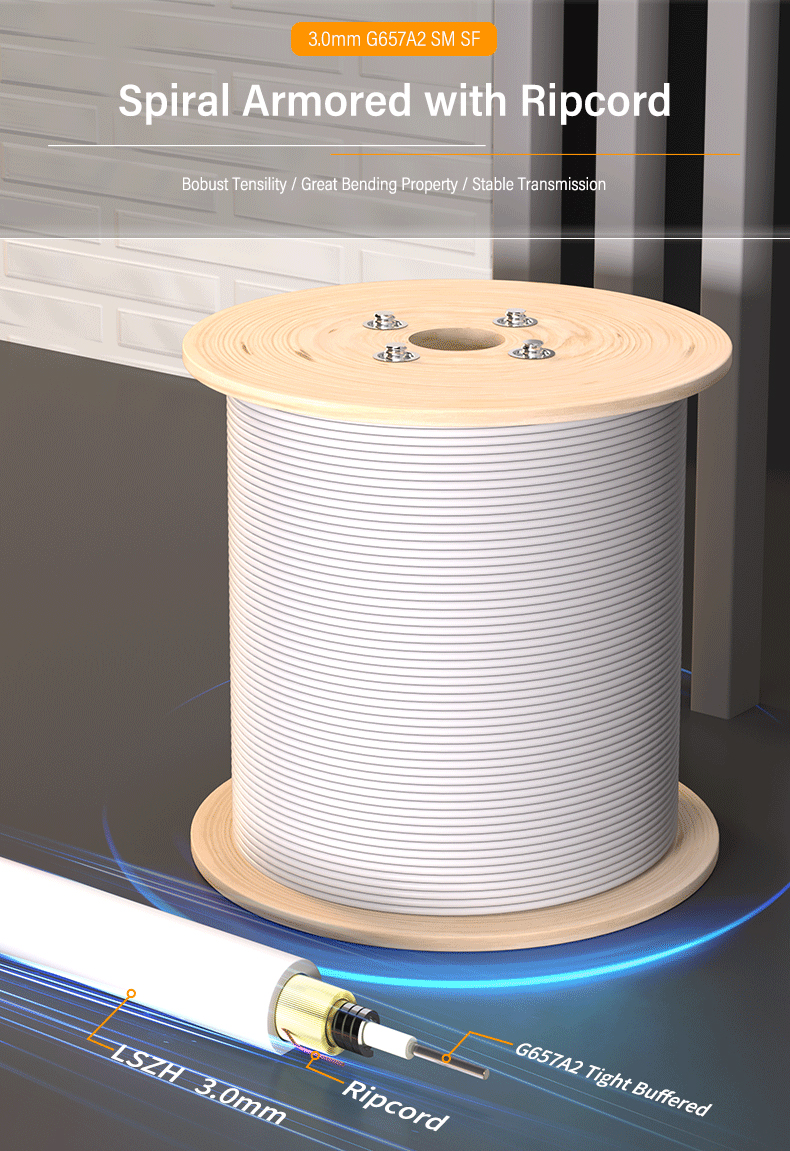

Armored Construction: The cable is equipped with an armored layer that provides enhanced
mechanical protection against physical impacts, rodents, and harsh
environmental conditions.
Simplex Design: This simplex cable features a single fiber core, making it
suitable for applications requiring unidirectional data
transmission.
LSZH Jacket: The outer jacket is made from Low Smoke Zero Halogen (LSZH)
material, which reduces the emission of toxic fumes and smoke in
case of fire, ensuring a safer environment.
3.0mm Diameter: The cable has a compact 3.0mm diameter, which allows for easy
installation and flexibility in tight spaces.
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history,
welcome to visit us!
2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is
available.
We founded the factory has 18 years of history, products exported to over 25 countries.
|
