Tin Ring Solder Heat Shrink Insulation Termination With Good Protected

Tin Ring Heat Shrink Insulation Termination With Good Protected

Product Description:

LONG Tin Ring Wire Shielded Heat Shrink Tube is a high temperature resistant tin ring heat shrink tube with shielded ground terminal. It consists of a hot melt adhesive ring, a solder ring and a heat shrinkable tube. The heat shrinkable tube is made of high temperature resistant fluorine resin. The product has the advantages of high temperature resistance, flame retardant, resistance to external friction, corrosion resistance, high transparency, and can provide accurate inspection functions. It is suitable for shielding and grounding terminal processing, providing reliable protection and the embedded lead wire is convenient for installation. It is widely used in harsh fields such as communications, motors, and locomotive control systems.

Features:

● Shrink rate:2:1

● High temperature resistance, corrosion resistance, external friction resistance, good sealing

● Clear heat shrink tubing provides precise viewing

● Operating temperature

● Initial shrink temperature:135℃

● Solder initial melting temperature:158℃

● Solder fully melting temperature:180℃

● Multi-Color hot melt adhesive.

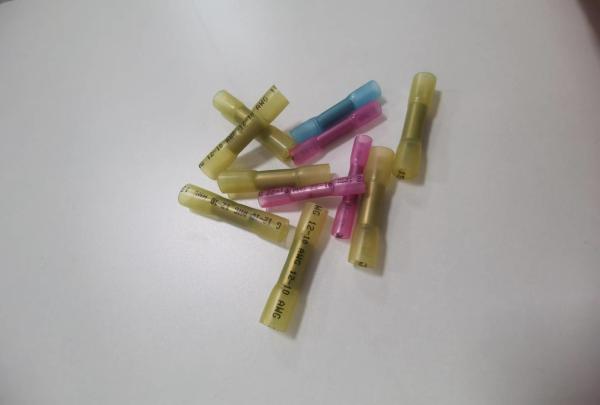

Red Solder Seal Butt Terminals Waterproof Heat Insulated Connectors

Product name	heat shrink electrical butt connectors
connection type	solder
Shrink ratio	2:1
Application type	wire to wire splicing
Color	White/Red/Blue /Yellow
Cable size	14-12AWG
MOQ	1piece
Payment terms	100% T/T,Mastercard,VISA,Paypal,e-Checking

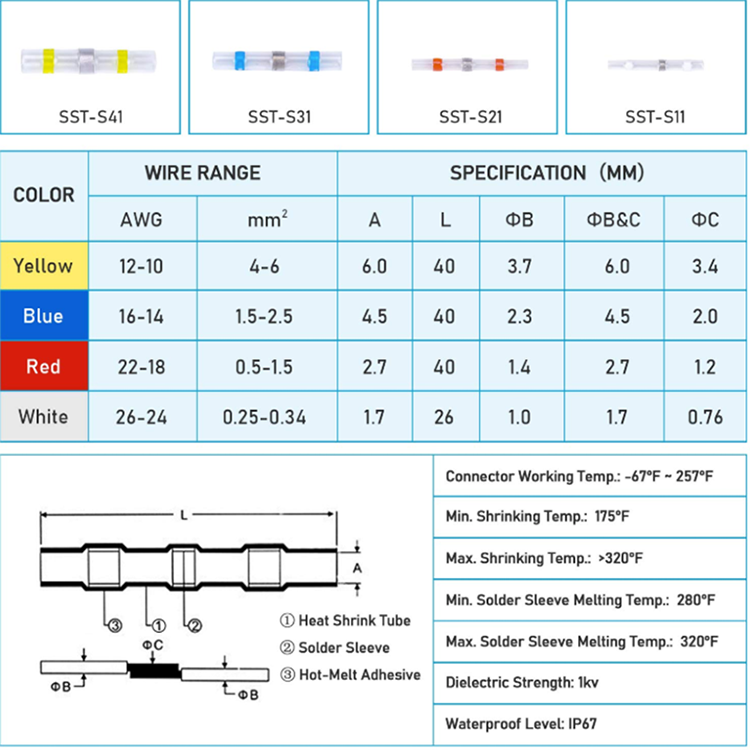

Selection Table:

Packaging and delivery

According to the tubing's size

Packing size:46*46*47cm

Any ports of China

Customization:

Customized logo

Min. order: 100

Customized packaging

Min. order: 100

Graphic customization

Min. order: 100

For more customization details, message supplier

FAQ:

Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
