Keysight N5245B PNA-X Microwave Network Analyzer 900 Hz / 10 MHz to 50 GHz

Categories	Vector Network Analyzer
Brand Name:	Keysight (Agilent)
Model Number:	N5245B
Place of Origin:	Malaysia
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	in stock
Product Name:	PNA-X Microwave Network Analyzer
No. of ports:	2- or 4-ports
Condition:	Pre-Owned
Frequency:	900 Hz / 10 MHz to 50 GHz
Functions:	Tested, in Full Working Conditions
Dynamic Range:	124 dB

Contact Now

Add to Cart

Company Info.

Shenzhen Meigaolan Electronic Instrument Co. Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

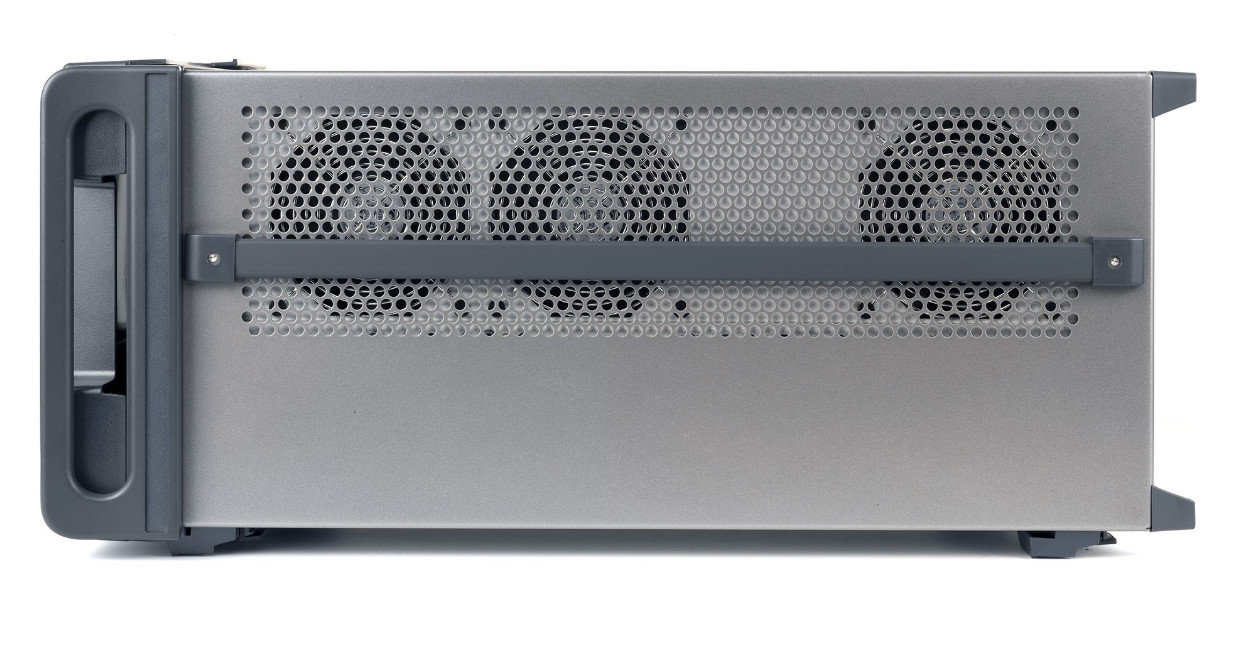

Keysight N5245B PNA-X Microwave Network Analyzer 900 Hz / 10 MHz to 50 GHz

Keysight N5245B PNA-X Microwave Network Analyzer 900 Hz / 10 MHz to 50 GHz

Description of Keysight Agilent N5245B PNA-X Microwave Network Analyzer

More than just a vector network analyzer, the PNA-X is the world’s most integrated and flexible microwave test engine for measuring active devices such as amplifiers, mixers, and frequency converters. The hardware includes two internal signal sources, a signal combiner, S-parameter and noise receivers, pulse modulators and generators, and a set of switches and RF access points. These hardware features provide a powerful core for a broad range of linear and nonlinear measurements, all with a single set of connections to your device under test.

Choose from the industry's widest range of measurement applications for speed, accuracy, and ease of use in advanced RF test.
Simplify your test system by replacing an entire rack of equipment with one PNA-X network analyzer.
Accelerate insight into component behavior using a multitouch display and intuitive user interface.
Accurately test linear and nonlinear device characterization using advanced error correction.
Reduce test time with the widest range of single-connection measurement applications.

Overview and Features of N5245B PNA-X Microwave Network Analyzer

10 MHz to 50 GHz, 2 and 4 ports, up to three sources.

Applications of N5245B :

S-parameters (CW and pulsed)
Noise figure
Nonlinear waveform and X-parameter® characterization
Millimeter-wave
True-differential stimulus
Conversion gain/loss
ntermodulation and harmonic distortion
Antenna test
Gain compression

Features of N5245B:

10 MHz to 50 GHz
2 and 4 ports, up to three sources.

List of Options for N5245B

N5245B-007	Automatic fixture removal
N5245B-010	Time Domain Analysis
N5245B-011	Enhanced Time Domain Analysis with TDR
N5245B-015	Dynamic Uncertainty for S-Parameter Measurements
N5245B-020	Add IF inputs
N5245B-021	Add pulse modulator to internal 1st source
N5245B-022	Add pulse modulator to internal 2nd source
N5245B-025	Basic Pulsed-RF Measurements
N5245B-026	Advanced Pulsed-RF Measurements
N5245B-029	Add noise receiver to 50 GHz
N5245B-080	Frequency Offset Measurements
N5245B-082	Scalar Mixer/Converter Measurements
N5245B-083	Vector and Scalar Mixer/Converter Measurements
N5245B-084	Embedded LO Capability
N5245B-086	Gain-Compression Measurements
N5245B-087	Intermodulation Distortion Measurements
N5245B-088	Source Phase Control
N5245B-089	Differential and I/Q Device Measurements
N5245B-201	2-port, configurable test set
N5245B-217	2-port, configurable test set, source attenuators, receiver attenuators
N5245B-219	2-port, configurable test set, source attenuators, receiver attenuators, bias tees
N5245B-222	2-port, configurable test set, source attenuators, receiver attenuators, second source, combiner, mechanical switches
N5245B-224	2-port, config test set, source/rcvr attenuators, bias tees, 2nd source, combiner, mech switches
N5245B-401	4-port, configurable test set, with second source
N5245B-417	4-port, configurable test set, second source, source attenuators, receiver attenuators
N5245B-419	4-port, configurable test set, second source, source attenuators, receiver attenuators, bias tees
N5245B-422	4-port, configurable test set, second source, source attenuators, receiver attenuators, combiner, mechanical switches
N5245B-423	4-port, config test set, 2nd source, source/receiver attenuators, bias tees, combiner, mech switches
N5245B-425	4-port configurable test set, second source, attenuators, low frequency extension, combiner and mechanical switches
S93029B	Noise figure measurements with vector correction
S93029B-R-A5A-001-A	Node-locked perpetual license
S93029B-R-A6A-001-L	KeysightCare software support subscription, node-locked - 12 months
S93083B	S93083B Vector and scalar mixer/converter measurements
WIN10	Windows 10

FAQ:

1. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

2. How can I ask any other question ?

You can contact us online or leave us messages below.

3. What is your payment term?

100% T/T payment before shipment.
