Stainless Steel Pipe Material SS 316 L 1.4404 DN100 NPS 6 "OD 114.3 mm SCH 40S 6 Meter Long

Stainless Steel Pipe Material: SS 316 L 1.4404 DN100 NPS 6 "OD 114.3 mm SCH 40S 6 Meter Long)

Product name	Stainless Steel Pipes Seamless/welded
Steel Grade	(TP)201, 304, 304L, 316, 316L,317L,321,310S, 374, 904L(welded), etc.
Standard	ASTM A213/A312/A269, DIN17456/17458/17459, etc
Forming technics	Seamless (Hot rolling/Cold rolling), Welding(ERW)
Outer diameter	8mm~426mm
Wall thickness	Sch5s~Sch160s
Length of pipe	5.8/5.9 meters (suitable for 20ft container loading), 6 meters, by random or customerised.
Packing	Bundling, Seaworthy material wrapping
Shipment	Seaworthy packing pipes being shiping by 20ft/40ft container.
Loading port	Shanghai Port, Tianjin port, Guangzhou port.
Supplying capacity	100tons per month
Payment terms	T/T, L/C at sight
Applications	Construction, decoration. Normal Industrial purpose, Petroleum, chemical industry. Electrical appliances, automotive, aerospace. Sanitary grade for food industry or medical application.

Material Grade(Only lists part)

SMLS/WELDED PIPE	SMLS TUBE	WEDLED TUBE	UNS	W-Nr
A312 TP304, A358 304	A213 TP304	A249 T304	S30400	1.4301
A312 TP304L, A358 304L	A213 TP304L	A249 T304L	S30403	1.4306,1.4307
A312 TP304H, A358 304H	A213 TP304H	A249 TP304H	S30409	1.4948
A312 TP316, A358 316	A213 TP316	A249 TP316	S31600	1.4401
A312 TP316L, A358 316L	A213 TP316L	A249 TP316L	S31603	1.4404, 1.4435
A312 TP316H, A358 316H	A213 TP316H	A249 TP316H	S31609	1.4436
A312 TP316Ti	A213 TP316Ti	A778 316Ti	S31635	1.4571
A312 TP310S, A358 310S	A511 MT310S	A249 TP310S	S31008	1.4845
A312 TP317, A358 317	A213 TP317	A249 TP317	S31700	1.4449
A312 TP317L, A358 317L	A213 TP317L	A249 TP317L	S31703	1.4438
A312 TP321, A358 321	A213 TP321	A249 TP321	S32100	1.4541
A312 TP321H, A358 321H	A213 TP321H	A249 TP321H	S32109	1.4878
A312 TP347, A358 347	A213 TP347	A249 TP347	S34700	1.455
A312 TP347H, A358 347H	A213 TP347H	A249 TP347H	S34709	1.4912
A312 N08904		A249 N08904	N08904	1.4539
A312/A358 S31254	A213 S31254	A249 S31254	S31254	1.4547(1.4529)
A790 S31803	A789 S318038	A789 S310803	S31803	1.4462
A790 S32205	A789 S32205	A789 S32205	S32205	--
A790 S32550	A789 S32550	A789 S32550	S32550	1.4507
A790 S32750	A789 S32750	A789 S32750	S32750	1.441
A790 S32760	A789 S32760	A789 S32760	S32760	1.4501

Stainless Steel
Standard Designation	Grade, Class, Type, Symbol or Name	Steel Number	UNS Number	C	Mn	Si	P	S	Cr	Ni	Mo	Others
ASTM A 249/A 249M	TP304	---	S30400	0.08	2.00	1.00	0.045	0.030	18.0-20.0	8.0-11.0	---	---
ASTM A 312/A 312M	TP304	---	S30400	0.08	2.00	1.00	0.045	0.030	18.0-20.0	8.0-11.0	---	---
ASTM A 358/A 358M	304	---	S30400	0.08	2.00	0.75	0.045	0.030	18.0-20.0	8.0-10.5	---	N 0.10
DIN 17457	X 5 CrNi 18 10	1.4301	---	0.07	---	---	---	---	17.0-19.0	8.5-10.5	---	---
DIN 17458	X 5 CrNi 18 10	1.4301	---	0.07	---	---	---	---	17.0-19.0	8.5-10.5	---	---
ASTM A 213/A 213M	TP304L	---	S30403	0.035	2.00	0.75	0.040	0.030	18.0-20.0	8.00-13.0	---	---
ASTM A 249/A 249M	TP304L	---	S30403	0.035	2.00	1.00	0.045	0.030	18.0-20.0	8.0-13.0	---	---
ASTM A 312/A 312M	TP304L	---	S30403	0.035	2.00	1.00	0.045	0.030	18.0-20.0	8.00-13.0	---	---
ASTM A 358/A 358M	304L	---	S30403	0.030	2.00	0.75	0.045	0.030	18.0-20.0	8.0-12.0	---	N 0.10
DIN 17457	X 2 CrNi 19 11	1.4306	---	0.030	---	---	---	---	18.0-20.0	10.0-12.5	---	---
DIN 17458	X 2 CrNi 19 11	1.4306	---	0.030	---	---	---	---	18.0-20.0	10.0-12.5	---	---
ASTM A 213/A 213Ma	TP304H	---	S30409	0.04-0.10	2.00	0.75	0.040	0.030	18.0-20.0	8.00-11.0	---	---
ASTM A 249/A 249M	TP304H	---	S30409	0.04-0.10	2.00	1.00	0.045	0.030	18.0-20.0	8.0-11.0	---	---
ASTM A 312/A 312M	TP304H	---	S30409	0.04-0.10	2.00	1.00	0.045	0.030	18.0-20.0	8.0-11.0	---	---
ASTM A 358/A 358M	304H	---	S30409	0.04-0.10	2.00	0.75	0.045	0.030	18.0-20.0	8.0-10.5	---	---
DIN 17459	X 6 CrNi 18 11	1.4948	---	0.04-0.08	2.0	0.75	0.035	0.015	17.0-19.0	10.0-12.0	---	---
ASTM A 213/A 213Ma	TP310S	---	S31008	0.08	2.00	0.75	0.045	0.030	24.00-26.00	19.00-22.00	0.75	---
ASTM A 249/A 249M	TP310S	---	S31008	0.08	2.00	1.00	0.045	0.030	24.0-26.0	19.0-22.0	---	---
ASTM A 312/A 312M	TP310S	---	S31008	0.08	2.00	1.00	0.045	0.030	24.0-26.0	19.0-22.0	0.75
ASTM A 358/A 358M	310S	---	S31008	0.08	2.00	1.50	0.045	0.030	24.0-26.0	19.0-22.0	---	---
ASTM A 213/A 213Ma	TP316	---	S31600	0.08	2.00	0.75	0.040	0.030	16.0-18.0	11.0-14.0	2.00-3.00	---
ASTM A 249/A 249M	TP316	---	S31600	0.08	2.00	1.00	0.045	0.030	16.0-18.0	10.0-14.0	2.00-3.00	---
ASTM A 312/A 312M	TP316	---	S31600	0.08	2.00	1.00	0.045	0.030	16.0-18.0	11.0-14.0	2.00-3.00	---
ASTM A 358/A 358M	316	---	S31600	0.08	2.00	0.75	0.045	0.030	16.0-18.0	10.0-14.0	2.00-3.00	N 0.10
DIN 17457	X 5 CrNiMo 17 12 2	1.4401	---	0.07	---	---	---	---	16.5-18.5	10.5-13.5	2.0-2.5	---
DIN 17458	X 5 CrNiMo 17 12 2	1.4401	---	0.07	---	---	---	---	16.5-18.5	10.5-13.5	2.0-2.5	---
DIN 17457	X 5 CrNiMo17 13 3	1.4436	---	0.07	---	---	---	0.025	16.5-18.5	11.0-14.0	2.5-3.0	---
DIN 17458	X 5 CrNiMo17 13 3	1.4436	---	0.07	---	---	---	0.025	16.5-18.5	11.0-14.0	2.5-3.0	---
ASTM A 213/A 213Ma	TP316L	---	S31603	0.035	2.00	0.75	0.040	0.030	16.0-18.0	10.0-15.0	2.00-3.00	---
ASTM A 249/A 249M	TP316L	---	S31603	0.030	2.00	1.00	0.045	0.030	16.0-18.0	10.0-14.0	2.00-3.00	---
ASTM A 312/A 312M	TP316L	---	S31603	0.035	2.00	1.00	0.045	0.030	16.0-18.0	10.0-14.0	2.00-3.00	---
ASTM A 358/A 358M	316L	---	S31603	0.030	2.00	0.75	0.045	0.030	16.0-18.0	10.0-14.0	2.00-3.00	N 0.10
DIN 17457	X 2 CrNiMo 17 13 2	1.4404	---	0.030	---	---	---	---	16.5-18.5	11.0-14.0	2.0-2.5	---
DIN 17458	X 2 CrNiMo 17 13 2	1.4404	---	0.030	---	---	---	---	16.5-18.5	11.0-14.0	2.0-2.5	---
DIN 17457	X 2 CrNiMo 18 14 3	1.4435	---	0.030	---	---	---	0.025	17.0-18.5	12.5-15.0	2.5-3.0	---
DIN 17458	X 2 CrNiMo 18 14 3	1.4435	---	0.030	---	---	---	0.025	17.0-18.5	12.5-15.0	2.5-3.0	---
ASTM A 213/A 213Ma	TP316H	---	S31609	0.04-0.10	2.00	0.75	0.040	0.030	16.0-18.0	11.0-14.0	2.00-3.00	---
ASTM A 249/A 249M	TP316H	---	S31609	0.04-0.10	2.00	1.00	0.045	0.030	16.0-18.0	10.0-14.0	2.00-3.00	---
ASTM A 312/A 312M	TP316H	---	S31609	0.04-0.10	2.00	1.00	0.045	0.030	16.0-18.0	11.0-14.0	2.00-3.00	---
ASTM A 358/A 358M	316H	---	S31609	0.04-0.10	2.00	0.75	0.045	0.030	16.0-18.0	10.0-14.0	2.00-3.00	---
DIN 17459	X 6 CrNiMo 17 13	1.4919	---	0.04-0.08	2.0	0.75	0.035	0.015	16.0-18.0	12.0-14.0	2.0-2.5	---
DIN 17457	X 6 CrNiMoTi 17 12 2	1.4571	---	0.08	---	---	---	---	16.5-18.5	10.5-13.5	2.0-2.5	Ti 5 x C to 0.80
DIN 17458	X 6 CrNiMoTi 17 12 2	1.4571	---	0.08	---	---	---	---	16.5-18.5	10.5-13.5	2.0-2.5	Ti 5 x C to 0.80
ASTM A 213/A 213Ma	TP317	---	S31700	0.08	2.00	0.75	0.040	0.030	18.0-20.0	11.0-14.0	3.00-4.00	---
ASTM A 249/A 249M	TP317	---	S31700	0.08	2.00	1.00	0.045	0.030	18.0-20.0	11.0-15.0	3.00-4.00	---
ASTM A 312/A 312M	TP317	---	S31700	0.08	2.00	1.00	0.045	0.030	18.0-20.0	11.0-14.0	3.0-4.0	---
ASTM A 213/A 213Ma	TP317L	---	S31703	0.035	2.00	0.75	0.040	0.030	18.0-20.0	11.0-15.0	3.00-4.00	---
ASTM A 249/A 249M	TP317L	---	S31703	0.030	2.00	1.00	0.045	0.030	18.0-20.0	11.0-15.0	3.00-4.00	---
ASTM A 312/A 312M	TP317L	---	S31703	0.035	2.00	1.00	0.045	0.030	18.0-20.0	11.0-15.0	3.0-4.0	---
ASTM A 213/A 213Ma	TP321	---	S32100	0.08	2.00	0.75	0.040	0.030	17.0-20.0	9.00-13.0	---	Ti 5 X C-0.60
ASTM A 249/A 249M	TP321	---	S32100	0.08	2.00	1.00	0.045	0.030	17.0-19.0	9.00-12.0	---	N 0.10; Ti 5 x (C+N) to 0.70
ASTM A 312/A 312M	TP321	---	S32100	0.08	2.00	1.00	0.045	0.030	17.0-19.0	9.0-12.0	---	N 0.10; Ti 5 x C to 0.70
ASTM A 358/A 358M	321	---	S32100	0.08	2.00	0.75	0.045	0.030	17.0-19.0	9.0-12.0	---	Ti 5 x (C+N) to 0.70; N 0.10
DIN 17457	X 6 CrNiTi 18 10	1.4541	---	0.08	---	---	---	---	17.0-19.0	9.0-12.0	---	Ti 5 x C to 0.80
DIN 17458	X 6 CrNiTi 18 10	1.4541	---	0.08	---	---	---	---	17.0-19.0	9.0-12.0	---	Ti 5 x C to 0.80
DIN 28180	X 6 CrNiTi 18 10	1.4541	---	0.08	---	---	---	---	17.0-19.0	9.0-12.0	---	Ti 5 x C to 0.80
DIN 28181	X 6 CrNiTi 18 10	1.4541	---	0.08	---	---	---	---	17.0-19.0	9.0-12.0	---	Ti 5 x C to 0.80
ASTM A 213/A 213Ma	TP321H	---	S32109	0.04-0.10	2.00	0.75	0.040	0.030	17.0-20.0	9.00-13.0	---	Ti 4 X C-0.60
ASTM A 249/A 249M	TP321H	---	S32109	0.04-0.10	2.00	1.00	0.045	0.030	17.0-19.0	9.00-12.0	---	N 0.10; Ti 5 x (C+N) to 0.70
ASTM A 312/A 312M	TP321H	---	S32109	0.04-0.10	2.00	1.00	0.045	0.030	17.0-19.0	9.0-12.0	---	Ti 5 x C to 0.60
ASTM A 213/A 213Ma	TP347	---	S34700	0.08	2.00	0.75	0.040	0.030	17.0-20.0	9.00-13.0	---	Cb+Ta 10 X C -1.00
ASTM A 249/A 249M	TP347	---	S34700	0.08	2.00	1.00	0.045	0.030	17.0-19.0	9.00-12.0	---	N 0.40-0.60; Cb 0.10; Cb 10 x C to 1.10
ASTM A 312/A 312M	TP347	---	S34700	0.08	2.00	1.00	0.045	0.030	17.0-19.0	9.0-13.0	---	Cb 10 x C to 1.00
DIN 17457	X 6 CrNiNb 18 10	1.4550	---	0.08	---	---	---	---	17.0-19.0	9.0-12.0	---	Nb 10 x C to 1.00
DIN 17458	X 6 CrNiNb 18 10	1.4550	---	0.08	---	---	---	---	17.0-19.0	9.0-12.0	---	Nb 10 x C to 1.00
ASTM A 213/A 213Ma	TP347H	---	S34709	0.04-0.10	2.00	0.75	0.040	0.030	17.0-20.0	9.00-13.0	---	Cb+Ta 8 X C -1.0
ASTM A 249/A 249M	TP347H	---	S34709	0.04-0.10	2.00	1.00	0.045	0.030	17.0-19.0	9.00-12.0	---	Cb 8 x C to 1.0
ASTM A 312/A 312M	TP347H	---	S34709	0.04-0.10	2.00	1.00	0.045	0.030	17.0-19.0	9.0-13.0	---	Cb 8 x C to 1.00
DIN 17459	X 8 CrNiNb 16 13	1.4961	---	0.04-0.10	1.5	0.30-060	0.035	0.015	15.0-17.0	12.0-14.0	---	Nb 10 x C to 1.20
ASTM A 249/A 249M	---	---	S31254	0.020	1.00	0.80	0.030	0.010	19.5-20.5	17.5-18.5	6.0-6.5	N 0.18-0.25; Cu 0.50-1.00
ASTM A 358/A 358M	---	---	N08904	0.020	2.00	1.00	0.045	0.035	19.0-23.0	23.0-28.0	4.0-5.0	Cu 1.0-2.0; N 0.10
ASTM A 249/A 249M	---	---	N08904	0.020	2.00	1.00	0.040	0.030	19.0-23.0	23.0-28.0	4.0-5.0	N 0.10; Cu 1.00-2.00
ASTM A 240/A 240Mc	800	---	N08800	0.10	1.50	1.00	0.045	0.015	19.0-23.0	30.0-35.0	---	Cu 0.75; Ti 0.15-0.60
DIN 17459	X 5 NiCrAlTi 31 20	1.4958	---	0.03-0.08	1.5	0.70	0.015	0.010	19.0-22.0	30.0-32.5	---	Al 0.20-0.50; Ti 0.20-0.50; Al+Ti 0.70;
DIN 17459	X 8 NiCrAlTi 32 21	1.4959	---	0.05-0.10	1.5	0.70	0.015	0.010	19.0-22.0	30.0-34.0	---	Al 0.25-0.65; Ti 0.25-0.65; Co 0.5;
ASTM A 240/A 240Mc	800H	---	N08810	0.05-0.10	1.50	1.00	0.045	0.015	19.0-23.0	30.0-35.0	---	Cu 0.75; Ti 0.15-0.60;
ASTM A 249/A 249M	---	---	N08926	0.020	2.00	0.50	0.030	0.010	19.0-21.0	24.0-26.0	6.0-7.0	N 0.15-0.25; Cu 0.50-1.50
ASTM A 312/A 312M	---	---	N08926	0.020	2.00	0.50	0.030	0.010	24.0-26.0	19.0-21.0	6.0-7.0	N 0.15-0.25; Cu 0.50-1.50
ASTM A 790/A 790M		---	S31803	0.030	2.00	1.00	0.030	0.020	21.0-23.0	4.5-6.5	2.5-3.5	N 0.08-0.20
ASTM A 790/A 790M	2205	---	S32205	0.030	2.00	1.00	0.030	0.020	22.0-23.0	4.5-6.5	3.0-3.5	N 0.14-0.20
ASTM A 790/A 790M	255	---	S32550	0.04	1.50	1.00	0.040	0.030	24.0-27.0	4.5-6.5	2.9-3.9	N 0.10-0.25; Cu 1.50-2.50
ASTM A 790/A 790M	2507	---	S32750	0.030	1.20	0.80	0.035	0.020	24.0-26.0	6.0-8.0	3.0-5.0	N 0.24-0.32; Cu 0.5

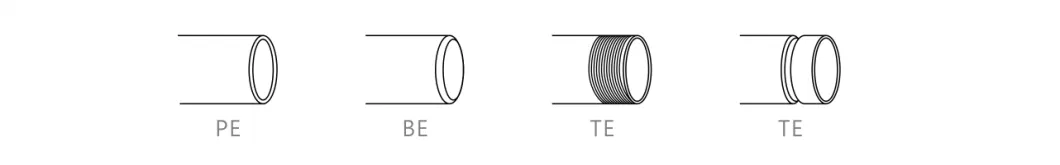

Pipes and tubes are produced with different types of ends.
The common pipe ends are:
--Plain ends (PE):
PE ends are generally used for smaller diameters and imply the usage of slip-on flanges, and socket weld fittings.
--Beveled ends (BE):
BE ends are the most common type of finish (joints are realized by welding pipes with butt weld fittings and flanges).
--Threaded ends (TE): TE ends require threaded fittings and flanges and are typical for small size pipelines.
--Threaded and coupled ends (T&C), generally used for gas distribution.

ASTM A312 TP304/304L/304H/304N/316/316L/316H/316Ti/316N/310/310S/317/317L/321/321H/347/347H Seamless Welded Cold draw Stainless Steel Pipe

Are you a factory or a trading company?
We are a dedicated factory specializing in the manufacturing of seamless stainless steel pipes. Additionally, we offer welded stainless steel pipes and pipe fittings to meet your comprehensive needs. Our in-depth market knowledge ensures that we deliver only the highest quality products, each meticulously inspected before shipment.

Do you have any certificates?
We proudly hold numerous prestigious domestic and international certifications, including the EU ISO9001 Quality Management System Certification, TUV Welding Certification, and the China Pressure Pipe Manufacturing License (TS).We are also exclusively authorized by the American Hastelloy Company in China for the collaboration, development, and production of Hastelloy long products.

What is your delivery time?
Delivery time primarily depends on your order volume. Typically, we deliver within approximately one month for a standard 40FT container. For in-stock items, shipping can be expedited to just 5 days.

What are your payment terms?
Our standard payment terms are a 30% deposit with the remaining balance against the bill of lading. We also accept L/C. Shipping terms include EXW, FOB, CFR, and CIF, tailored to your preference.

How can you guarantee the quality of my goods?
We ensure all materials undergo 100% PMI testing and precise measurement before shipping. We welcome third-party inspections and provide the EN10204.3.1B Mill Test Certificate for all materials.

How do you establish long-term and positive business relationships?
1. We maintain superior quality and competitive pricing to maximize our customers' benefits.
2. We respect every customer, conducting business with sincerity and maintaining high service standards both before and after every transaction.

Product Tags:


*From:	Your email address is incorrect!
*To:	TSING SHAN STEEL INDUSTRIAL LIMITED
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Stainless Steel Seamless Tube
Brand Name:	TSINGSHAN
Model Number:	316L
Certification:	ISO MTC
Place of Origin:	China
MOQ:	100KGS
Price:	USD4.45/KG
Payment Terms:	L/C, T/T
Supply Ability:	50000KGS
Delivery Time:	7 Days
Packaging Details:	Wooden Box
Coated:	PVC PE or customized
Surface Treatment:	Polished, Mirror, Brushed, etc.
Size Range:	1/2''-25''
Diameter:	6 - 508mm
Material Grade:	TP316L S31603
Product:	Seamless Tube
End:	Beveled End, Plain End
Dnt:	ET,UT,PT,HT
Material:	Stainless Steel
Finish:	pickled
Surface:	Bright Annealed
Testmethod:	various
Steel Grade:	300 Series,304L,316L etc
Delivery Condition:	Soft / Hard
Condition:	Cold Rolled
