| Categories | 3D Pixel LED |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | XQD |
| Packaging Details: | XQD PACKING/customized |
| Supply Ability: | 50000PCS/Day |
| MOQ: | 1000 pieces |
| Price: | $0.22/pieces 1000-9999 pieces |
| Certification: | CE, RoHS, FCC |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Model Number: | 3D Pineapple Lamp |
| IP Rating: | IP68, IP44/IP66 |
| Input Voltage(V): | DC12V |
| Lamp Luminous Efficiency(lm/w): | 75 |
| Lamp Luminous Flux(lm): | 18 |
| Warranty(Year): | 3-Year |
| Working Lifetime(Hour): | 50000 |
| Working Temperature(℃): | -25°-60° |
| Color Rendering Index(Ra): | 90 |
| Length: | OPTIONAL |
| Holiday Name: | Christmas |
| Support Dimmer: | Yes |
| Lighting solutions service: | auto CAD layout, Project Installation |
| Lifespan (hours): | 50000 |
| Working Time (hours): | 50000 |
| LED color: | RGB |
| Wire Color: | Transparent White Black Green |
| LED Quantity: | 2leds |
| MOQ: | 1000pcs |
| Voltage: | dc12v |
| Company Info. |
| Shenzhen Xinqidian Photo-Electric Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

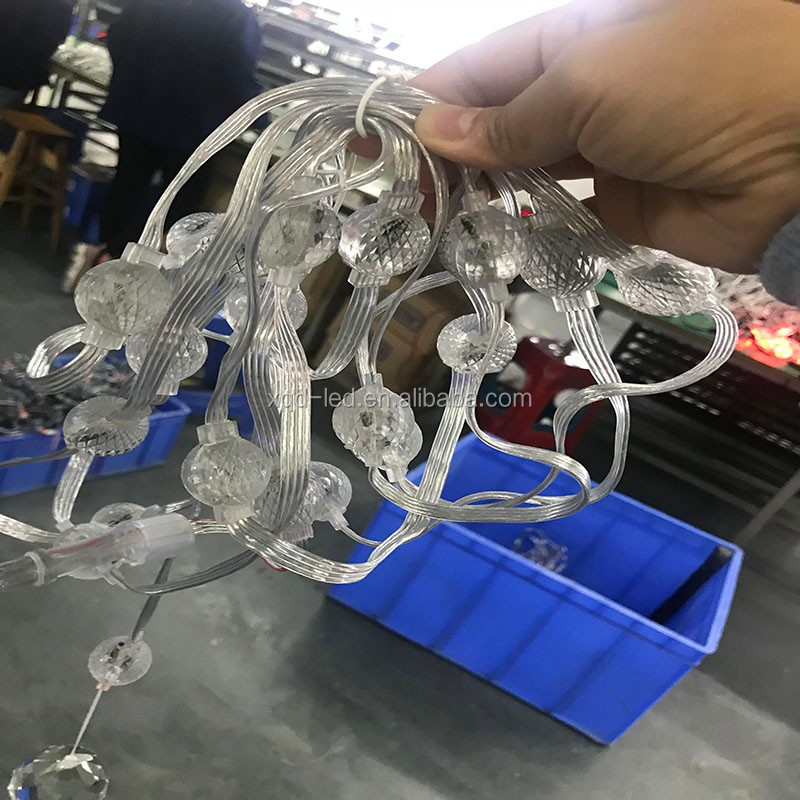

3D LED Light Pixel String Lights DMX Control DC12V Waterproof 3D Pineapple Lamp

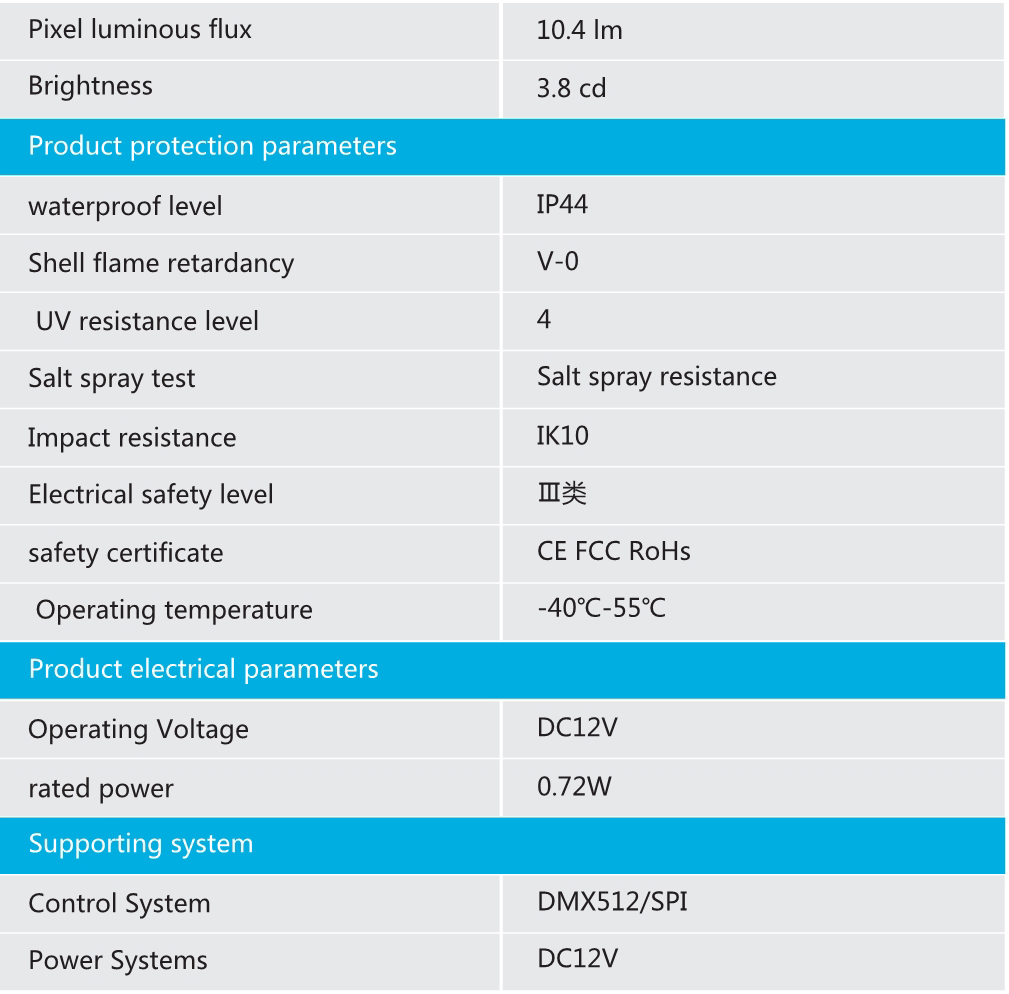

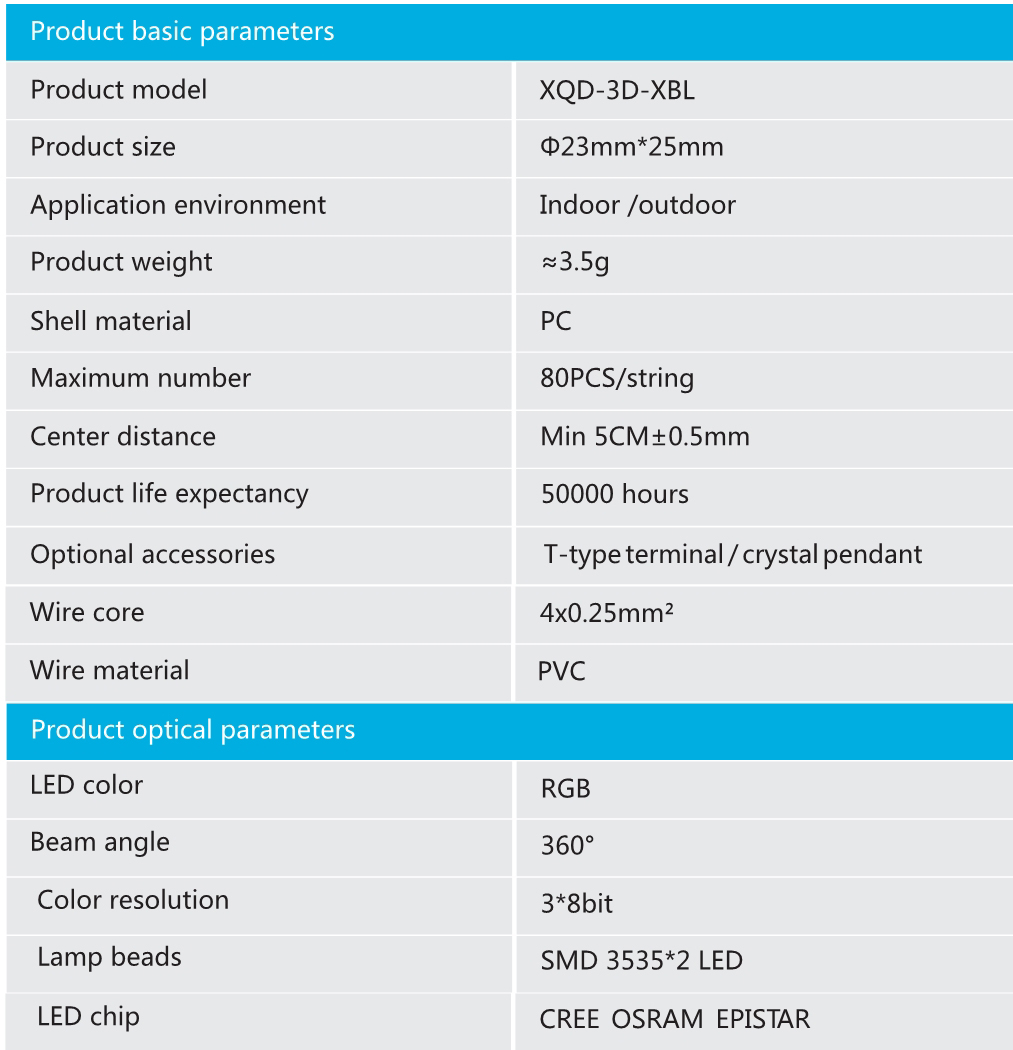

3D pineapple light technical parameters
| Basic product parameters | Product protection parameter | ||
| Product model | 3D-XBL | Waterproof class | IP67 |
| Product size | Φ23mm*25mm | Shell flame retardant | V-0 |
| Application environment | Outdoor | UV resistance grade | 4 |
| Product weight | About 6g | Salt spray test | Salt spray resistance |
| Shell material | PC | Impact resistance | IK10 |
| Maximum number of connections | 100PCS/string | Electrical safety class | Ⅲ class |
| Center distance | Minimum 5cm±0.5mm | Safety certification | CE FCC RoHs |
| Average product life | 50000h | Operating temperature | -40℃-55℃ |
| Optional accessories | T-terminal/crystal ball | Tensile strength | ≤6.5kg |
| Wire core | 4x0.25mm² | Instantaneous tensile strength | ≤25kg |
| Wire material | PVC | ||
| PCB material | FR-4 Fiberglass board | ||
| Product optical parameters | Electrical parameters of the product | ||
| LED color | RGB | Operating voltage | DC12V |
| Luminous Angle | 360° | Rated power | 0.72W |
| Color resolution | 3x8bit | Supporting system | |
| Lamp bead | SMD3535*2LED | Control system | DMX512 |
| Pixel point luminous flux | 10.4lm | Power supply system | DC12V Constant voltage |
| luminance | 3.8cd | ||
Product model | XQD-3D-XBL |
waterproof level | IP44/IP67 |
Operating Voltage | DC12V |
rated power | 0.72W |
LED color | RGB |
1. Who we are?
Specialized in outdoor lighting, we are LED manufacturer and do
world trading.
2. What we do?
Technical support, design service, after sales service.
3. Could you send us sample for test?
Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
4. Can you provide custom service?
Yes, we can provide custom service
|
