Ultra Depth Fusion Digital Measuring Microscope Electronic Video Inspection Microscope

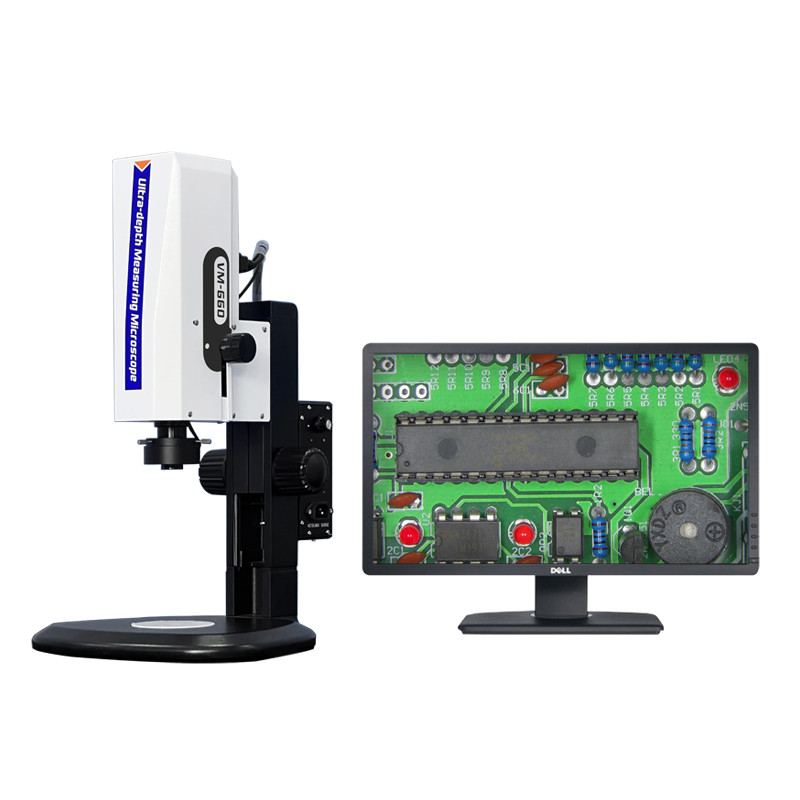

Ultra-depth Fusion Measuring Microscope VM-660

Application field:

Product inspection, material inspection and research, PCB and SMT inspection and analysis, printing, textile inspection, biological anatomy, medical testing, and other fields.

Characteristic:

l Integral design, exquisite, fashion, generous;

l Built-in high-definition HDMI integrated camera, directly connected to HDMI monitor for inspection

l With high definition 0.7~4.5X parallel detent zoom lens, it is much more convenience and fast to switch objective magnification;

l With adjustable LED surface reflection illumination, can control brightness independently;

l With 1/2’’ 2Mpixel high-definition, high-frame industrial camera, making the image clearer;

l With its own measurement function, it can measure linear dimensions such as distance, perimeter, area, angle, radian, width, height, and radius elements.

l Multiple optional mobile control platform, ensure precision position measurement.

Technical Specification:

Image Performance

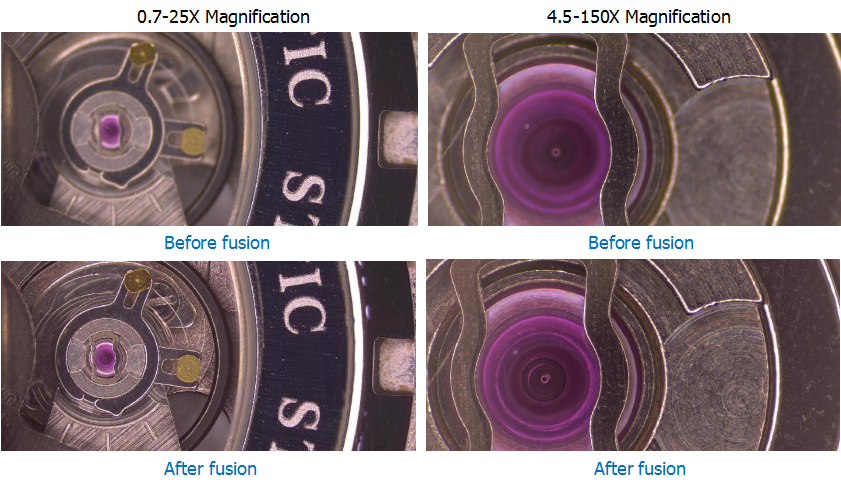

A: Watch Gem Inspection

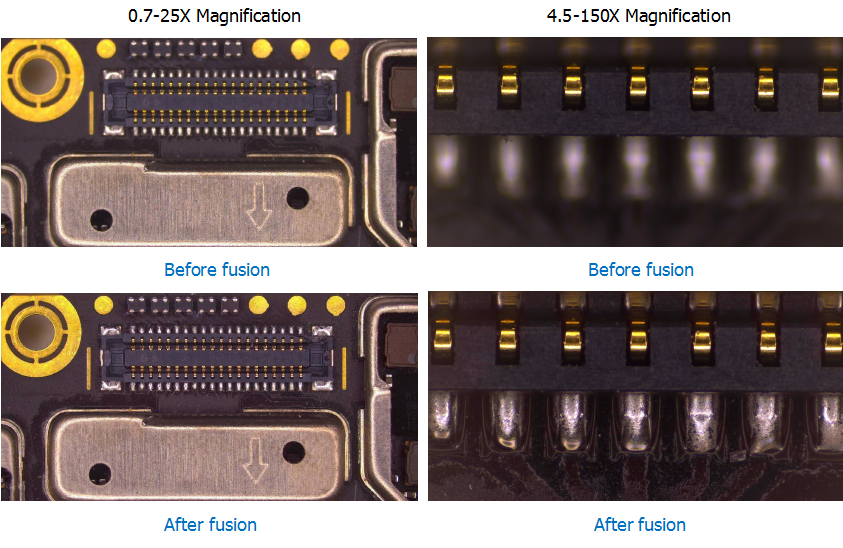

B: PCB Solder Inspection

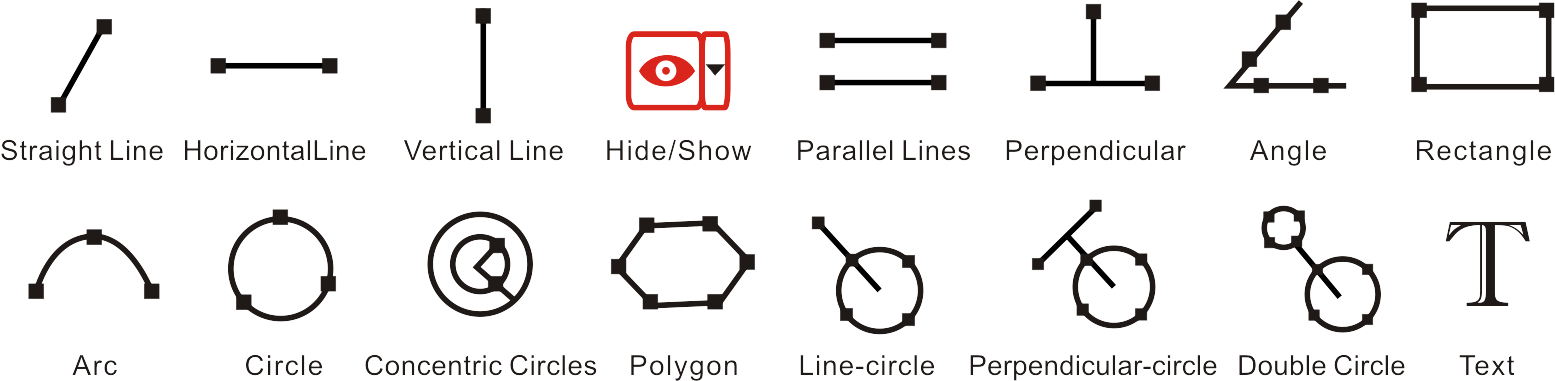

Measurement Function Introduction:

VM-660 can measure straight lines, angles, concentric circles, parallel lines, point-to-line distance, point and line to concentric circles, diameter, circumference and area, length and width of rectangle, and can calculate circumference and area. It can measure the polygon and calculate its area. All the corresponding measurement report can be output to flash memory disk.

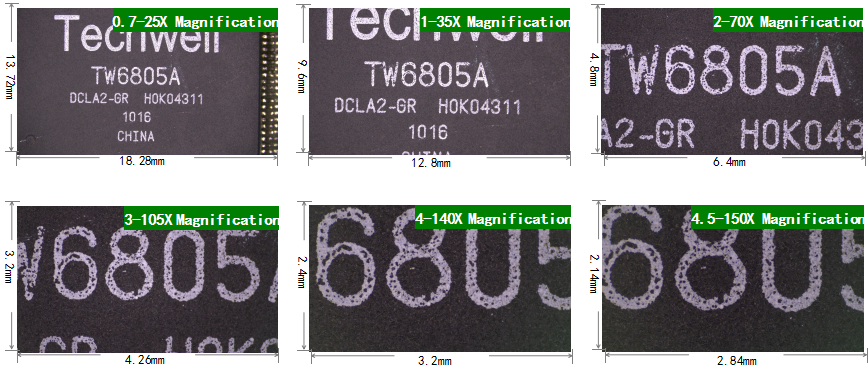

Field of View:

Magnification Specification:

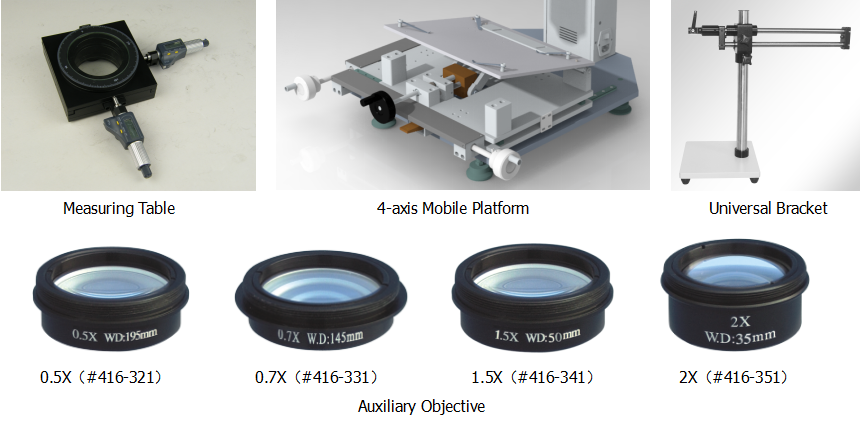

Optional Accessories:
