| Categories | Battery Cell Grading Machine |
|---|---|
| Brand Name: | XWELL |
| Model Number: | XW-32 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | USD 7900/pcs |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
| Delivery Time: | 15-20 days |
| Packaging Details: | Wooden box |
| Product Name: | Prismatic Battery Tester Analyzer |
| Battery Type: | Prismatic Battery |
| Voltage and current: | 5V/10A; 5V/20A; 5V/30A |
| Heat dissipation: | to enter the air naturally and exhaust the air upward |
| Overall energy saving: | over 70% |
| Voltage measuring range: | 0-5V, 1MV resolution |
| Battery voltage range: | Charge 0-4.5V: Discharge 4.5-2V |
| voltage accuracy: | ±(1‰ reading +1‰ full) |
| Control mode: | Computer connection equipment work, FCL control |
| Company Info. |
| Guangdong XWELL New Energy Technology CO., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |
Main Functions
1. Adopting modular manufacturing, with strong universality and easy maintenance.
2. Adopting the four wire method for measurement, improving high testing accuracy.
3. Each battery channel has a completely independent constant current and voltage source, and the self formed circuit does not affect each other.
4. The equipment adopts the control method of sending the entire process.
5. The sampling speed is fast, and the entire cabinet inspection time is ≤ 6s.
6. Complete Windows platform software with powerful functions, user-friendly human-machine interface, and simple operation. The upper computer can set up to 32 steps and 256 cycles, and each formation step can have four optional attributes: constant current charging, constant voltage charging, constant current discharge, and sleep.
| Working power | Three-phase five-wire system AC380V±10%, 50HZ | ||
| Work environment | Temperature 0-40 degrees, relative humidity ≤80% | ||
| Heat dissipation | to enter the air naturally and exhaust the air upward | ||
| Overall energy saving | over 70% | ||
| Channel Parameter | |||
| Voltage measuring range | 0-5V, 1MV resolution | ||
| Battery voltage range | Charge 0-4.5V: Discharge 4.5-2V | ||
| Constant voltage range | 2.5V-4.5V | ||
| voltage accuracy | ±(1‰ reading +1‰ full) | ||
| Current accuracy | ±(1‰ reading +1‰ full) | ||
| Software Function | |||
| Control mode | Computer connection equipment work, FCL control | ||
| Communication mode | RS485 baud rate 57,600 | ||
| Process set | A maximum of 32 work steps and 256 cycles are se | ||
| Charging mode | Constant current, constant pressure | ||
| Charging cutoff condition | Voltage, current, time, capacity | ||
| Discharge | constant current | ||
| Discharge cut-off condition | Voltage, time, capacity | ||
| Defensive function | Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc | ||
| Time range | Set it anywhere from 0 to 30,000 minutes | ||
| Time accuracy | ≤±1‰ | ||
| Sampling inspection period | ≤3S | ||
| Minimum frequency of data recording | ≤5S | ||
| Battery sorting | By capacity, time, discharge platform, etc | ||
| Data processing | Data, graphs, and loop diagrams | ||

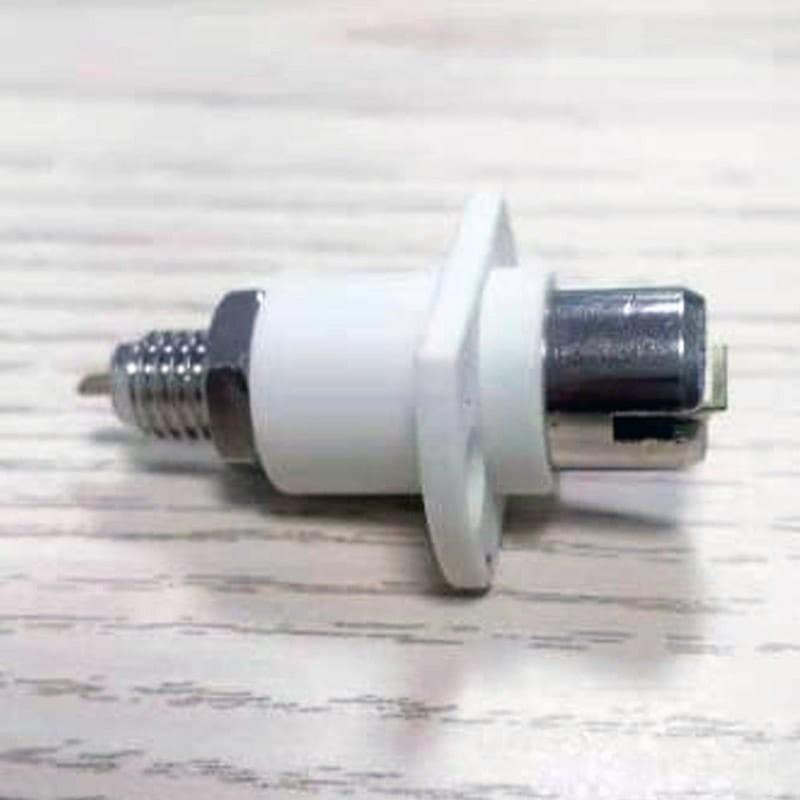

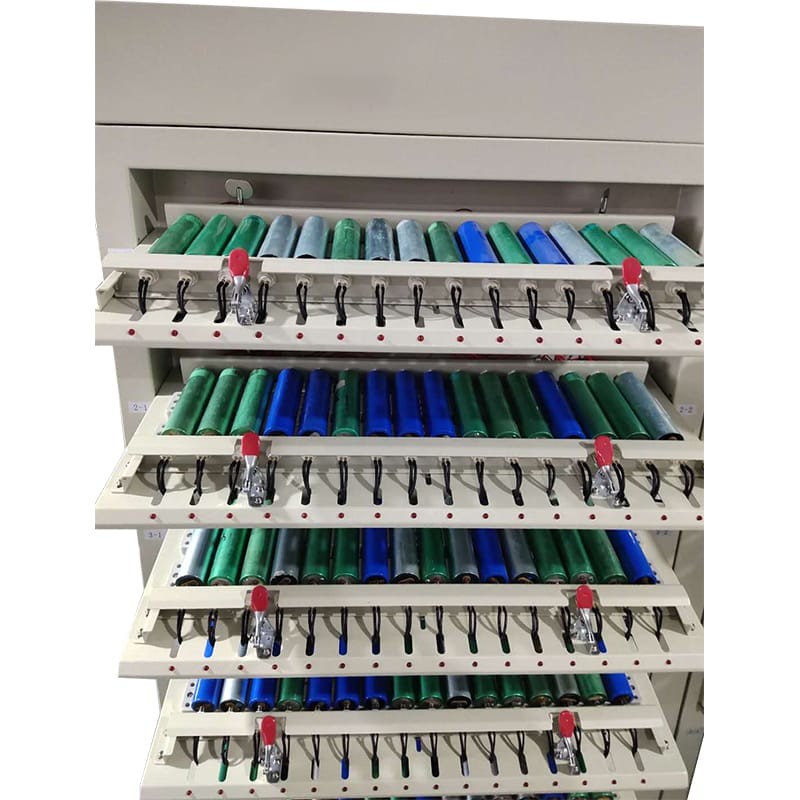

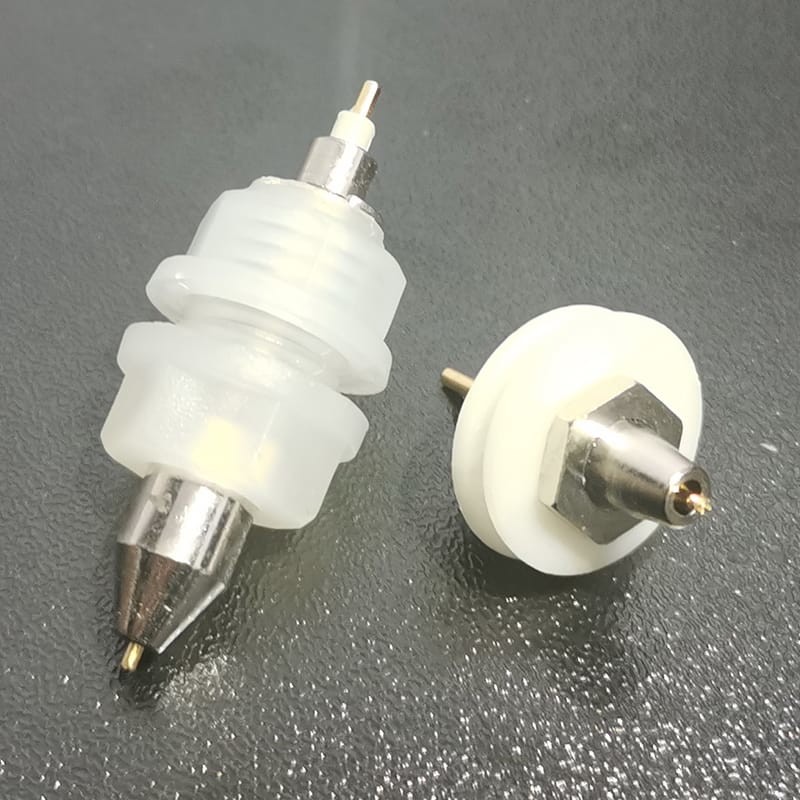

XWELL can provide different fixtures for different types of cells
|
