Arc Target Ultrasonic Indium Plating Coating Inner Tube 20Khz 1500w

Categories Ultrasonic Indium Coating
Brand Name: FUNSONIC
Model Number: FSY-2015-IC
Certification: CE
Place of Origin: CHINA
MOQ: 1 UNIT
Price: Negotation
Payment Terms: T/T, Western Union
Supply Ability: 1000 unit per month
Packaging Details: Packed by carton
Production Name: Ultrasonic Inner Circle Indium Coating Machine
Frquency: 20Khz
Max Power: 1500W
Temperature Range: 150-400℃
Working Amplitude: 3-15μm
Input Voltage: 20V± 10%,50/60Hz,8A
Indium Coated Head Material: Titanium Alloy
Application Direction Flat, inner hole, outer circle, etc: Flat, inner hole, outer circle, etc
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Arc Target Ultrasonic Indium Plating Coating Inner Tube 20Khz 1500w

Arc Target Ultrasonic Indium Plating Coating Inner Tube 20Khz 1500w


Description:


Ultrasonic inner circle indium coating machines usually use spray or brush coating techniques for coating. Spray coating technology can spray coating liquid onto the inner surface of an object through a nozzle or spray gun, while brush coating technology uses a coating brush to apply the coating liquid onto the inner surface of the object. The selection of appropriate coating techniques depends on specific application requirements and the geometric shape of the object.

The ultrasonic inner circle indium coating machine can be used for coating various materials, including metals, plastics, ceramics, etc. The indium material in the coating solution can be indium powder or indium compound, which can be selected according to specific application requirements and requirements


Parameters:


ModelFSY-2015-IC
Name20Khz Ultrasonic Inner Indium Coating
Frequency20Khz
Power500-1500w
Temperature Range150-400℃
Working Amplitude3-15μm
Input Voltage220V±10%,50/60Hz, 8A
Control ModeSupport I/O or 485 communication control, can be integrated with automation operations

Product TypePlanar Indium CoatingInner Hole Indium CoatingOuter Circle Coated with Indium
Rated Power100-1000W500-2500W300-1500W
Frequency20,28,30KHz20KHz20KHZ
Temperature Range150-400℃
Working Amplitude3-20μm3-15μm3-20μm
Input Voltage220V± 10%,50/60Hz,4A220V± 10%,50/60Hz,8A220V± 10%,50/60Hz,6A
Indium Coated Head MaterialTitanium Alloy (other materials can be customized)
Working ModeIntermittent/Continuous switchable
Control ModeManual Button or External Control

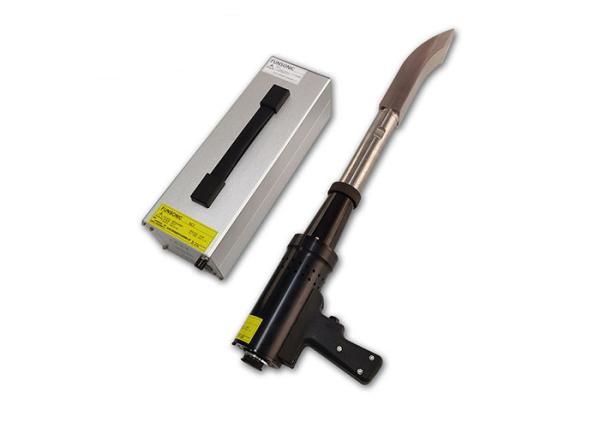

Composition AccessoriesUltrasonic Generator,Transducer, Specialized Amplitude Lever, Indium Coated Head, Shell, etc
Ultrasonic GeneratorSize180*120*360mm
Weight5kg
CharacteristicFully digital frequency tracking system, temperature automatic adjustment system, capable of working 24 hours a day

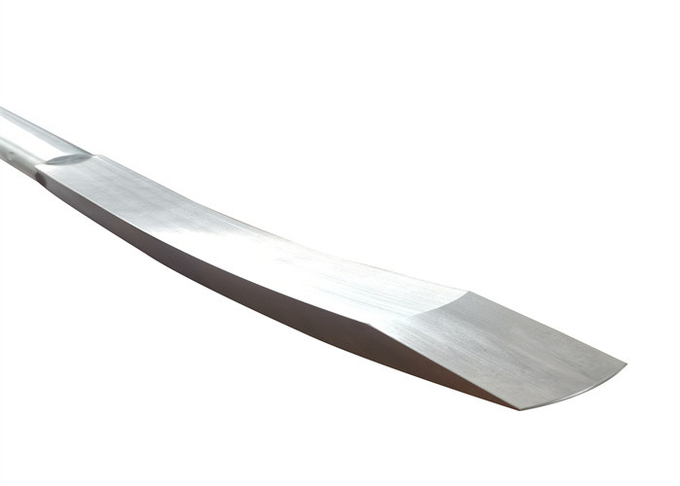

Vibration Head SizeΦ16cap shaped round head,50*10mmsquare head50*30mm(inner diameter of curved fitting pipe)80*20mm (outer diameter of curved fitting pipe)
Processable MaterialsITO glass, aluminum, molybdenum, copper, indium, etc
Application DirectionFlat, inner hole, outer circle, etc

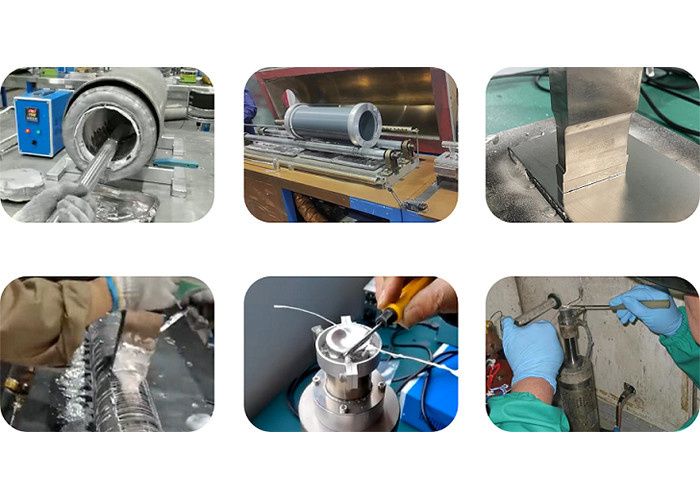

Application field:


Ultrasonic inner circle indium coating machine has been applied in many fields. For example, in the petroleum and chemical industries, it can be used for internal coating of pipes and fittings to improve their corrosion resistance. In the automotive manufacturing industry, it can be applied to the inner circle coating of engine components to improve their wear resistance and high temperature resistance. In addition, ultrasonic inner circle indium coating machines can also be used in electronic components, aerospace and other fields.
