2500kva Three Phase Pad Mounted Transformer ANSI IEEE Standard Electric Power 12.47kv To 4160V

Categories Oil Type Transformer
Brand Name: WINLEY
Model Number: S-2500/25
Certification: UL/cUL,CE,ISO
Place of Origin: CHINA
MOQ: 1unit
Price: $5000-$150000
Payment Terms: T/T
Supply Ability: 1000set/month
Delivery Time: 30days
Packaging Details: Plywood case
Phase: Three Phase
Capacity: 2500 KVA
Primary Voltage: 12.47KV
Secondary Voltage: 4160V
Frequency: 60HZ
Temperature Rise: 65°C
Cooling Class: KNAN/ONAN
Standards: lEEE C57.12.34
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2500kva Three Phase Pad Mounted Transformer ANSI IEEE Standard Electric Power 12.47kv To 4160V

2500kva 3 Phase Pad Mounted Transformer ANSI IEEE Standard Electric Power 12.47kv To 4160V


WINLEY ELECTRIC specialize in the production of three-phase pad-mounted transformers. Our products comply with ANSI, IEEE, DOE, CSA and other standards. The rated power is usually 75kva to 5500kVA, and the voltage can reach 34.5 kV. Our products are exported to North America and other places in large quantities. We have rich experience in design, production, and after-sales service.



Main data


Transformer TypePad Mounted, Compartmental-Type
PhaseThree Phase
Capacity2.5 MVA (2500 KVA)
Vector GroupYnD1
Primary Voltage12470GrdY/7200
Secondary Voltage4160V
Secondary PhasorDelta
Secondary BIL60 KV
Frequency60 Hz
Temperature Rise65°C
Insulation RatingClass E Insulation - 120°C, 248°F
Cooling ClassKNAN; Self-Cooled
Impedance (Typical)5.75%
Efficiency Standard(s)Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)K-1 (Standard)
Insulation FluidBiodegradable Natural Vegetable Oil Ester Insulating Fluid - Non-PCB Fluid
Winding MaterialCopper
Ambient Temperature Rating40°C
Sound Level60 dBA
Dimensions*75''-W x 73''-D x 73''-H
Dry Weight (w/o Oil)*4,217 Lbs
Total Weight (Liquid Filled)*9,800 Lbs
Efficiency %99.30%

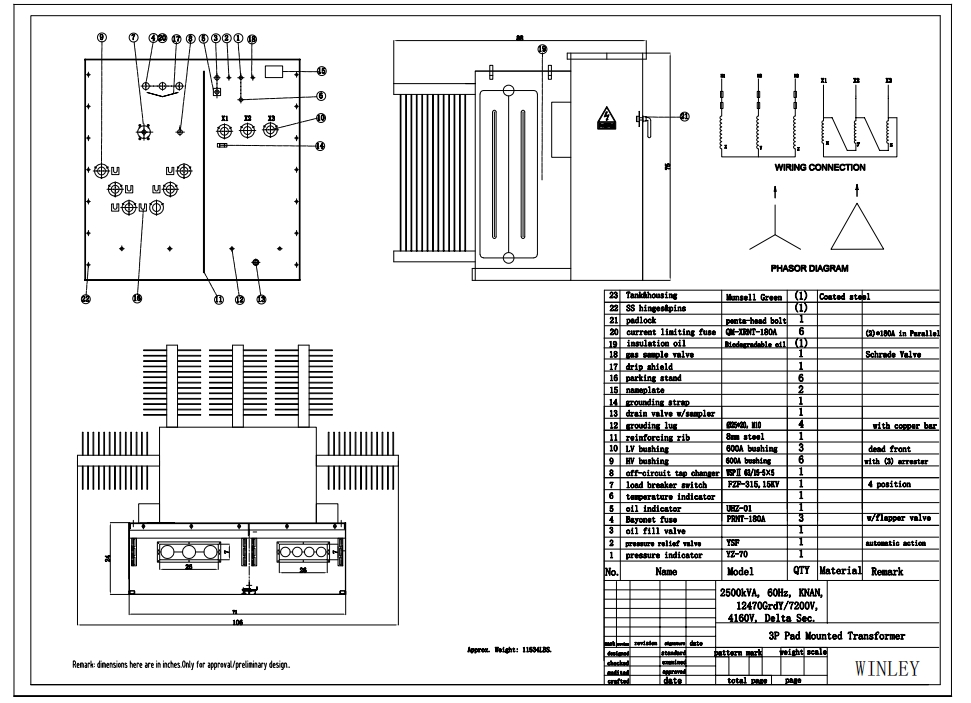

Technical drawings



Standard Features


• 60 Hz operation.
• 65°C average winding rise.
• Radial & loop feed arrangements.
• Dead and live front type of HV terminals.
• HV BIL 45 – 150 kV (Dead Front) 200 kV (Live Front).
• LV BIL 30 – 60 kV.
• Three-point latching of low-voltage door.
• High-voltage door, which can be opened only after the low-voltage door is opened.
• Rigid steel partition.
• Transformer tank welded from cover to base.
• Permanent nameplate.
• One-inch NPT pipe cap filling provision.
• ANSI tank ground pads.
• One-inch drain valve and sampler.
• Automatic pressure-relief valve (35 SCFM).
• Tap changer with (2) 2.5% full capacity taps above and below nominal.
• One 10”x18” (or 14”x25”) hand hole in transformer tank cover.
• Painted olive-green color (Munsell 7GY 3.29/1.5).
• Designed, manufactured and tested in accordance with the latest ANSI standards

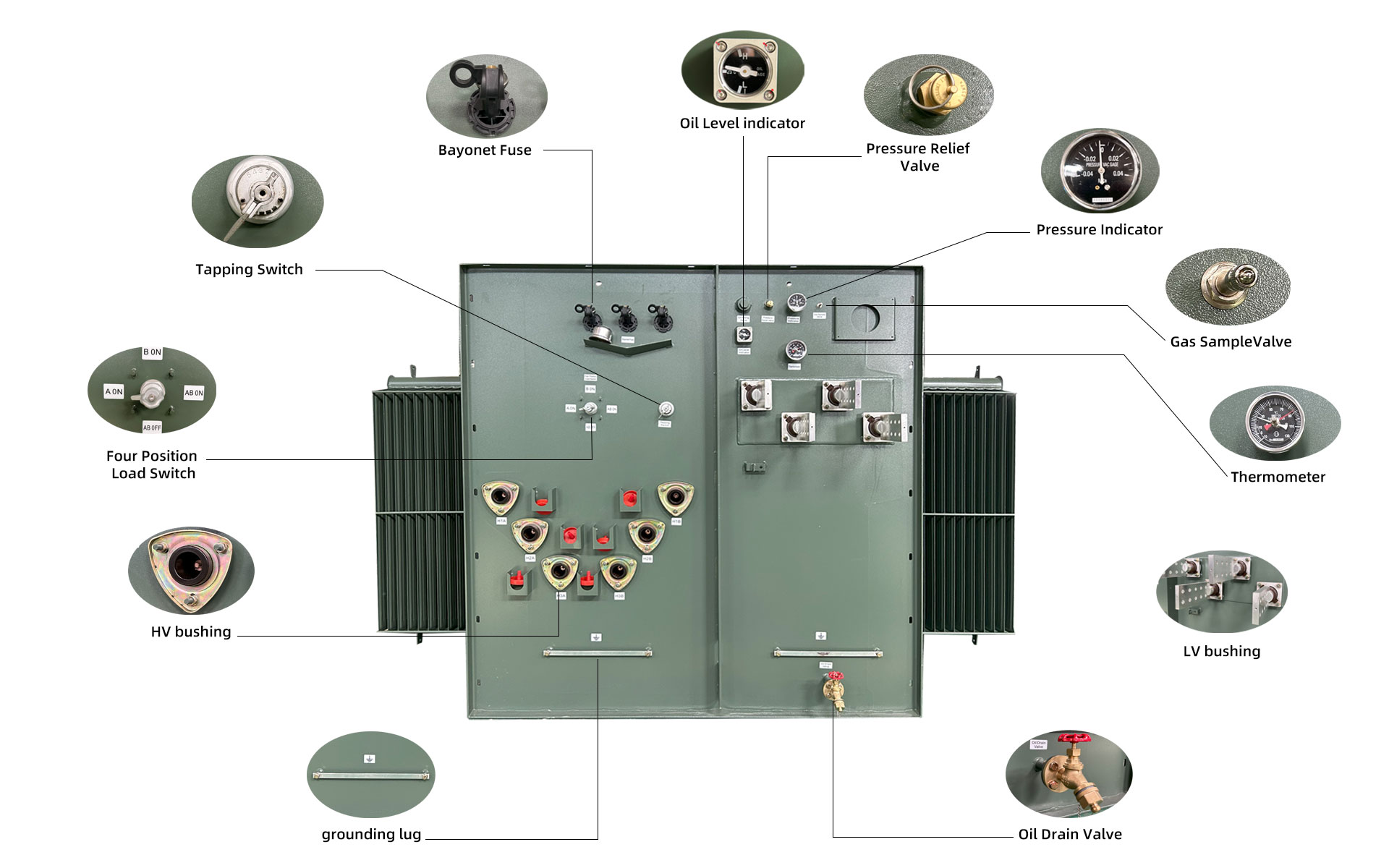

Optional accessories



Specification


PRODUCT SPECIFICATION
Rated Power
(KVA)
High Voltage
(KV)
Low Voltage
(V)
No-load Loss
(W)
On-load Loss
(W)
Height
(mm)
Depth
(mm)
Width
(mm)
Weight
(kg)
7534.5KV
4.160KV
12.47KV
13.2KV
13.8KV
24940GrdY/14400
1247Grdy/7200
4160GrdY/2400
or others
277V
347V
480V
600V
120/240V
208GrdY/120
415GrdY/240
480GrdY/277
600Y/347
180125014309101930645
150280220015309801510989
30048036501680108016601415
50068051001790116018101905
75098075002030130020302755
10001150103001854154916513235
15001640145002150157022105835
20002160206452220160023806430
25002680237862330165030708865
300033003030024601850326011300
373541253787526802060408014400

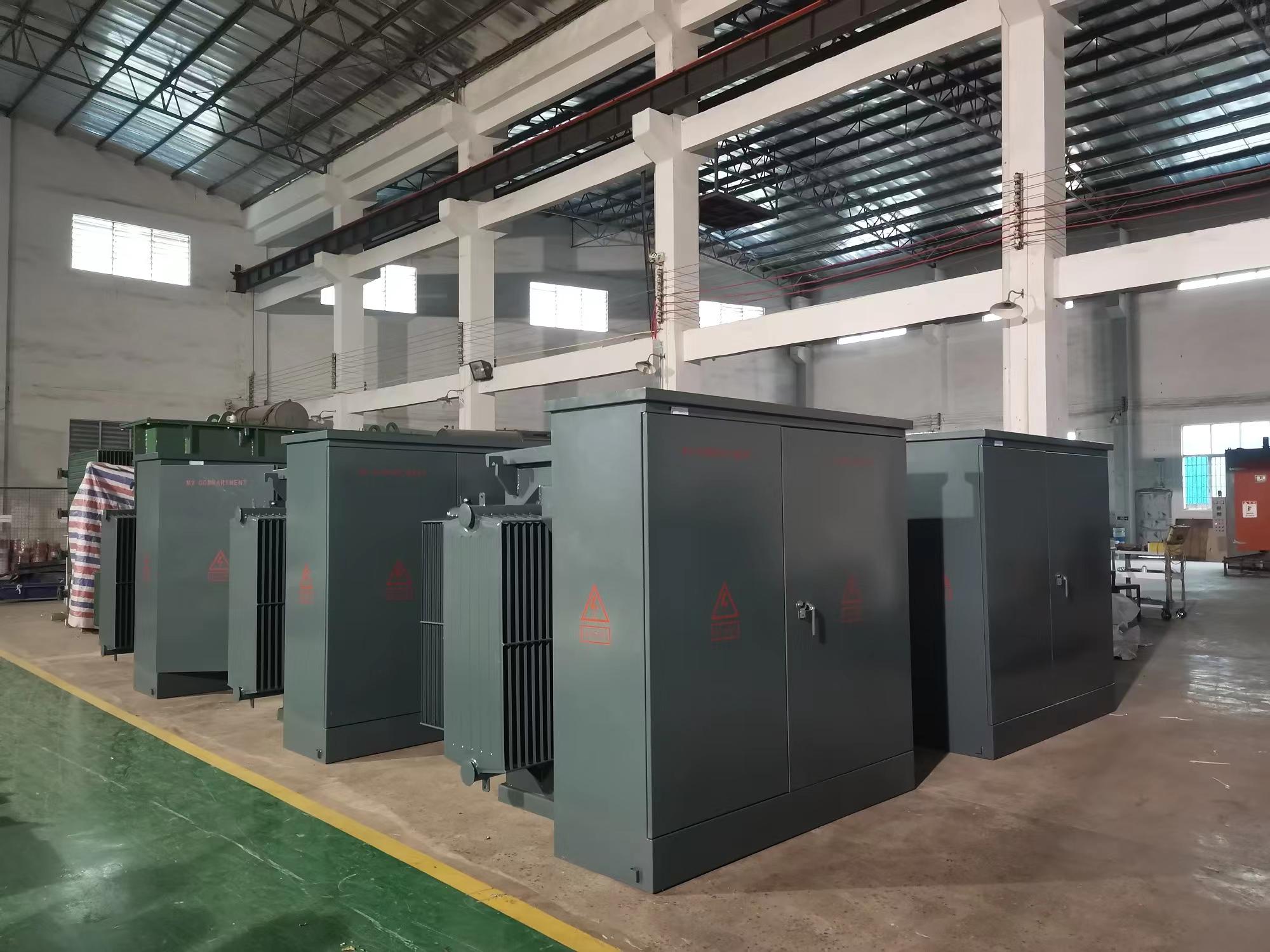

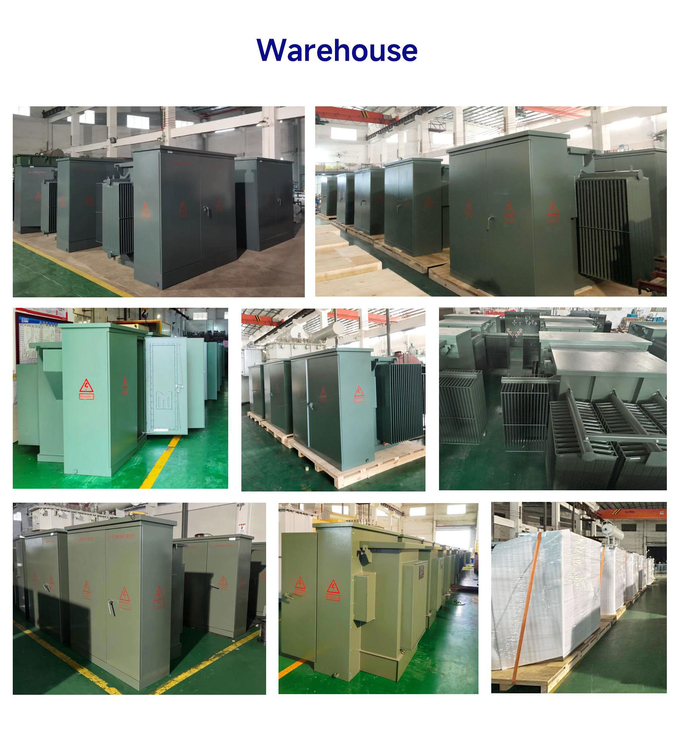

Product Photos

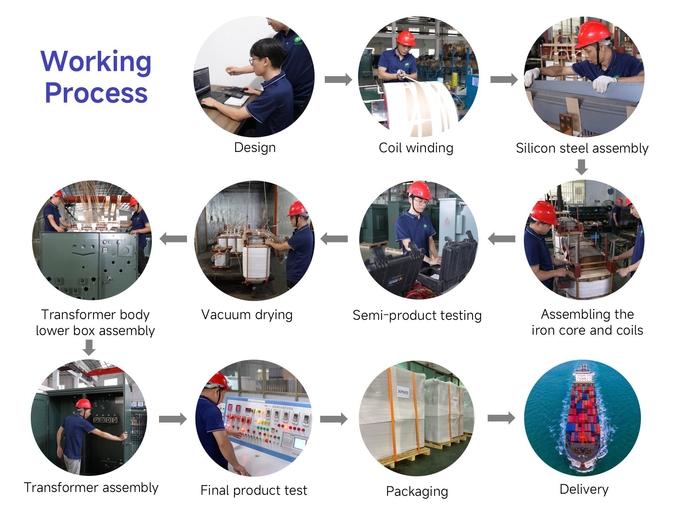

Production process


500 Kva 3 Phase Pad Mounted Power Distribution Transformer Dual Voltage 12470V & 4160V UL Certified 2

500 Kva 3 Phase Pad Mounted Power Distribution Transformer Dual Voltage 12470V & 4160V UL Certified 3500 Kva 3 Phase Pad Mounted Power Distribution Transformer Dual Voltage 12470V & 4160V UL Certified 4


FAQ


1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
