Bergquist Gap Pad 2500S20/TGP2400 Thermal Conductive Silicone Pad

Bergquist Gap Pad 2500S20/TGP2400 Thermal conductive silicone pad

• Gap Pad 2500S20 is a glass fiber based thermal conductive material with a thermal conductivity of 2.4W/m.K. The polymer material has unusual softness and elasticity. The use of glass fiber substrate is easier to process and die cutting, and the insulation effect and tear resistance are better.

Product features/Applications:

• Between processors and heat sinks,Between graphics chips and heat sinks,DVD and CDROM electronics cooling,Areas where heat needs to be transferred to a frame, chassis or other type of heat spreader.

PRODUCT PARAMETERS

Test item	Test method	Unit	Imperial value	Meteic value
Color	Visual	-	Light Yellow	Light Yellow
Reinforcement Carrier	-	-	Fiberglass	Fiberglass
Thickness	ASTM D374	inch / MM	0.010 ~ 0.250	0.254 ~ 6.350
Inherent Surface Tack	-	1 sided	2	2
Density	ASTM D792	g/cc	3.1	3.1
Heat Capacity	ASTM E1269	J/g-K	1.0	1.0
Hardness(1)	ASTM D2240	Shore 00	20	20
Young's Modulus (2)	ASTM D575	psi / kPa	5	35
Dielectric Breakdown Voltage	ASTM D149	Vac	＞ 3000	＞ 3000
Volume Resistivity	ASTM D257	Ohm-meter	1×1011	1×1011
Continuous Use Temp	-	°F / ​℃	-76 ~ 392	-60 ~ 200
Flame retardant rate	UL 94	-	V - 0	V - 0
Dielectric constant	ASTM D150	1000 MHz	6.6	6.6
Teat conductivity coefficient	ASTM D5470	W/m·K	2.4	2.4

THERMAL PERFORMANCE vs. STRAIN

Deflection (% strain)	10	20	30
Thermal Impedance (°C-in2/W) 0.040" (3)	0.75	0.68	0.61

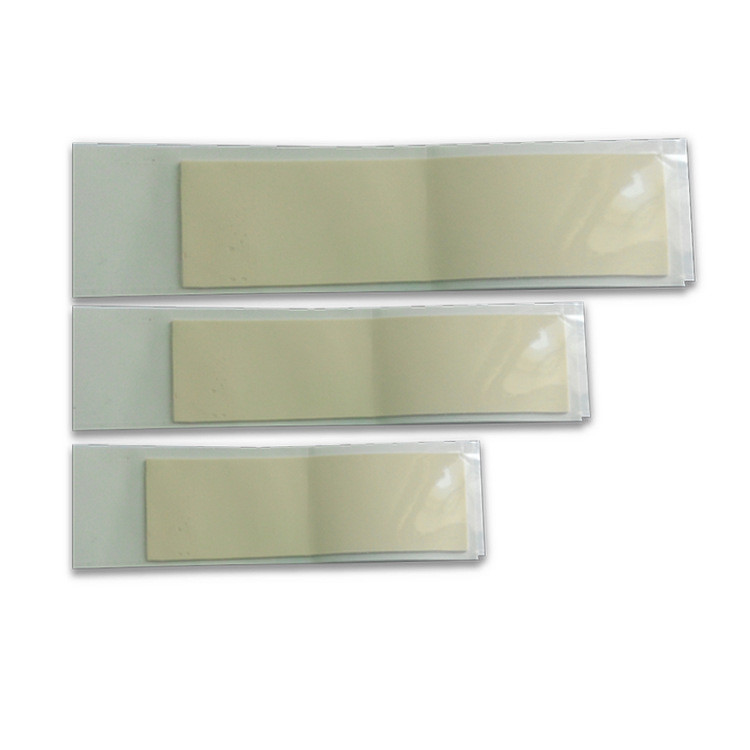

PRODUCT DISPLAY

PACKING OF TRANSPORT
