503.9MHz RF SAW Band Pass Filter

503.9MHz LT-SF series RF SAW Band Pass Filter

Quick Detail:

· Aluminum Housing

· Customizable Frequency

· -40℃~+85℃ Operating Temperature

· Sourface Mount Package

· Small Size

· Low Cost

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-SF-504M-22M-3030 from ZR is a Band Pass Filter with Frequency 492.60 to 515.20 MHz, Bandwidth 22.6 MHz, Center Frequency 503.9 MHz,Insertion Loss 3.8 to 4.5 dB, Rejection 35 to 45 dB. Tags: Surface Mount, RF SAW Filter. This filter is widely used in various Wireless Communication.More details for LT-SF-504M-22M-3030 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

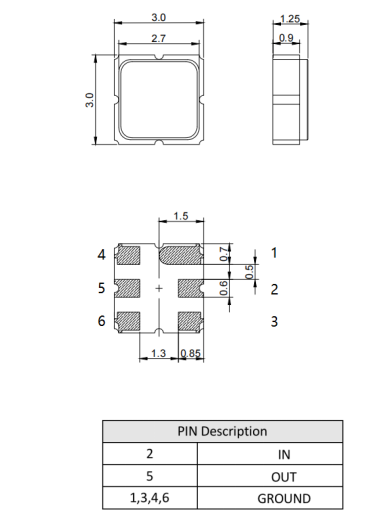

Outline Drawing (Unit: mm):
