High Gain 12dBi Signal Blocker Tiny Size 50W Yagi Antenna 1100-1300MHz

Categories High Gain Antenna
Brand Name: TeXin OEM
Model Number: TX008-1113-12D50VBM
Certification: CE ISO
Place of Origin: Shenzhen,China
MOQ: 1
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T,
Supply Ability: 100000/month
Delivery Time: Within 3 work days
Packaging Details: Durable case or box
Brand: TEXIN
Application: Signal booster
Power: 50W
Frequency: 100-1000MHz 4000-5000MHz(Customized)
Size: 450*120*55mm
Weight: 0.4 kg
Material: Aluminium
Gain: 12dBi
Maximum input power: 50W
Rated Wind Velocity: 31m/s
Mechanical tilt(º): 0-10º
Polarization: Vertical
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

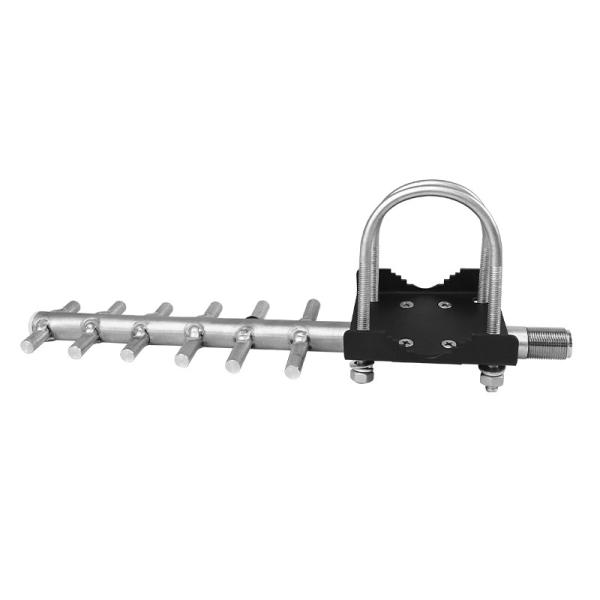

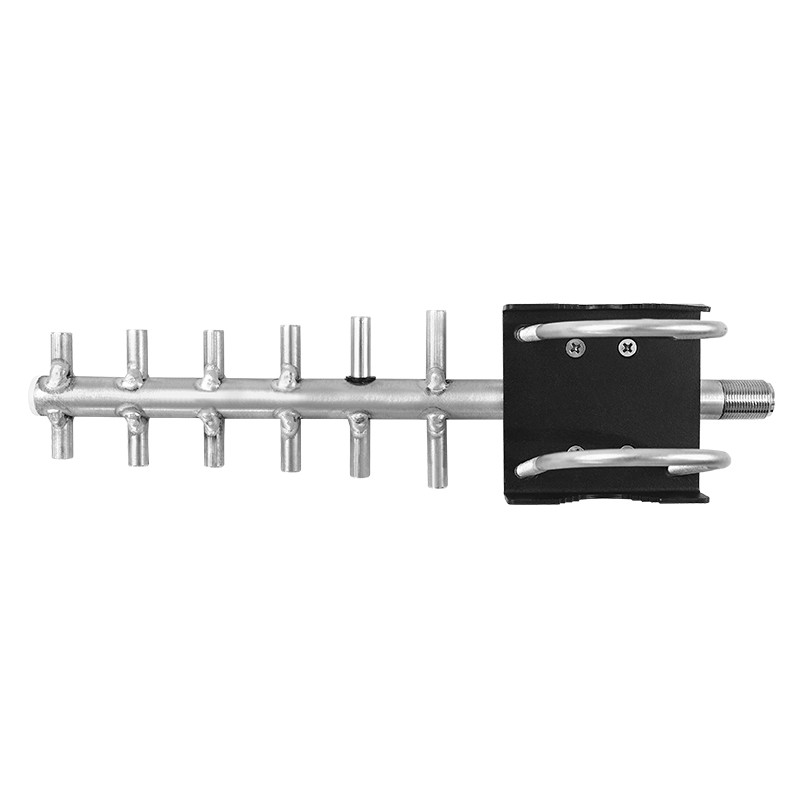

High Gain 12dBi Signal Blocker Tiny Size 50W Yagi Antenna 1100-1300MHz

High gain 12dBi signal blocker tiny size 50W Yagi antenna 1100-1300MHz

This is high gain 12dBi siganal blocker Yagi antenna ,it produce by Shen Zhen Texin Electronics Co.,Ltd .that the company has over 10years of producing antennas.Providing high-quality services products to customers around the world .this antenna is used in signal booster,set lightning protection when installed out side the antenna transmition not unaffected .And it produced by manufactureso that frequency band can be customized.

parameter:

Electrical Specifications
FrequencyRange1100-1300MHz
Gain(dBi)12dBi
VSWR≤2
PolarizationVertical
Horizontal Beamwidth(0º)50±10º
Vertical Beamwidth(0º)30±10º
Front-to-back ratio(dB)≥18
Input Impedance(Ω)50Ω
Maximum input power(W)50W
Inpur connector typeN-K
Lightning ProtectionDC Ground
Mechanical Specifications

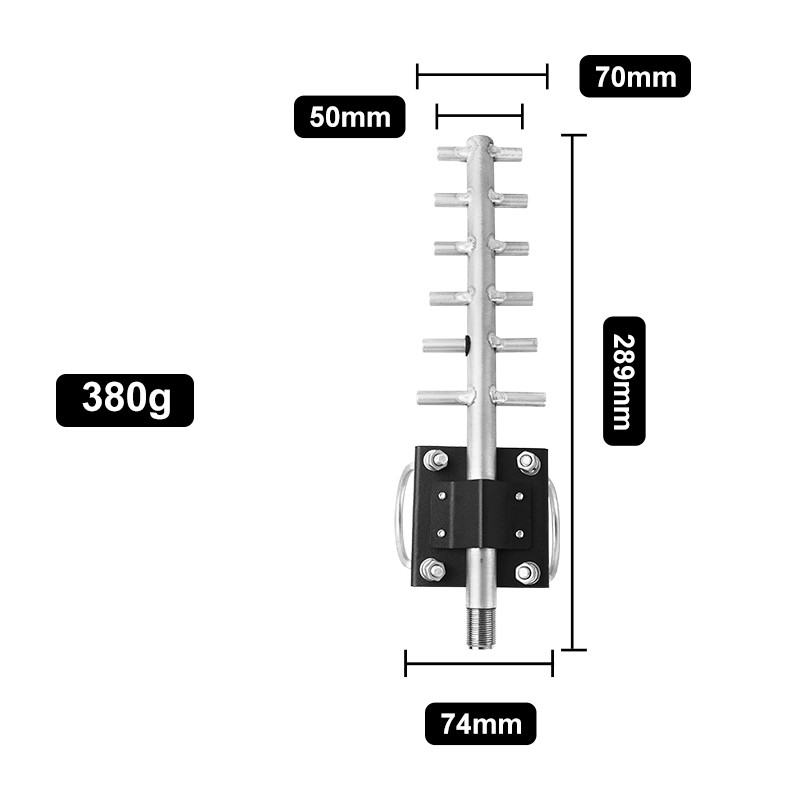

Dimensions­mm(Height/Width/Depth)450*120*55mm
Packing size(mm)Mm(depend on real case)
Antenna weight(kg)0.4K
Rated Wind Velocity(m/s)31m/s
Operational Humidity(%)10- 95
Radome ColorBlack
Radome materialaluminum
Operating temperature(ºC)-40~55 º
Installution MethodPole installation
Mounting hardware(mm)Φ30~Φ50mm

Features :

1.High gain around 12dBi

2.Tiny size light weight and high quality

3. Designed lightning protect can use in out doors

4.Directional sthrong signal

Application

Television Reception: Yagi antennas have been traditionally used for receiving television signals, particularly in rural areas where broadcast towers are not nearby.

Security Operations: Suitable for use in high-security areas, events, and critical infrastructure protection against potential drone threats.

Wireless Communication: In various wireless applications, Yagi antennas are used to establish point-to-point communication links.

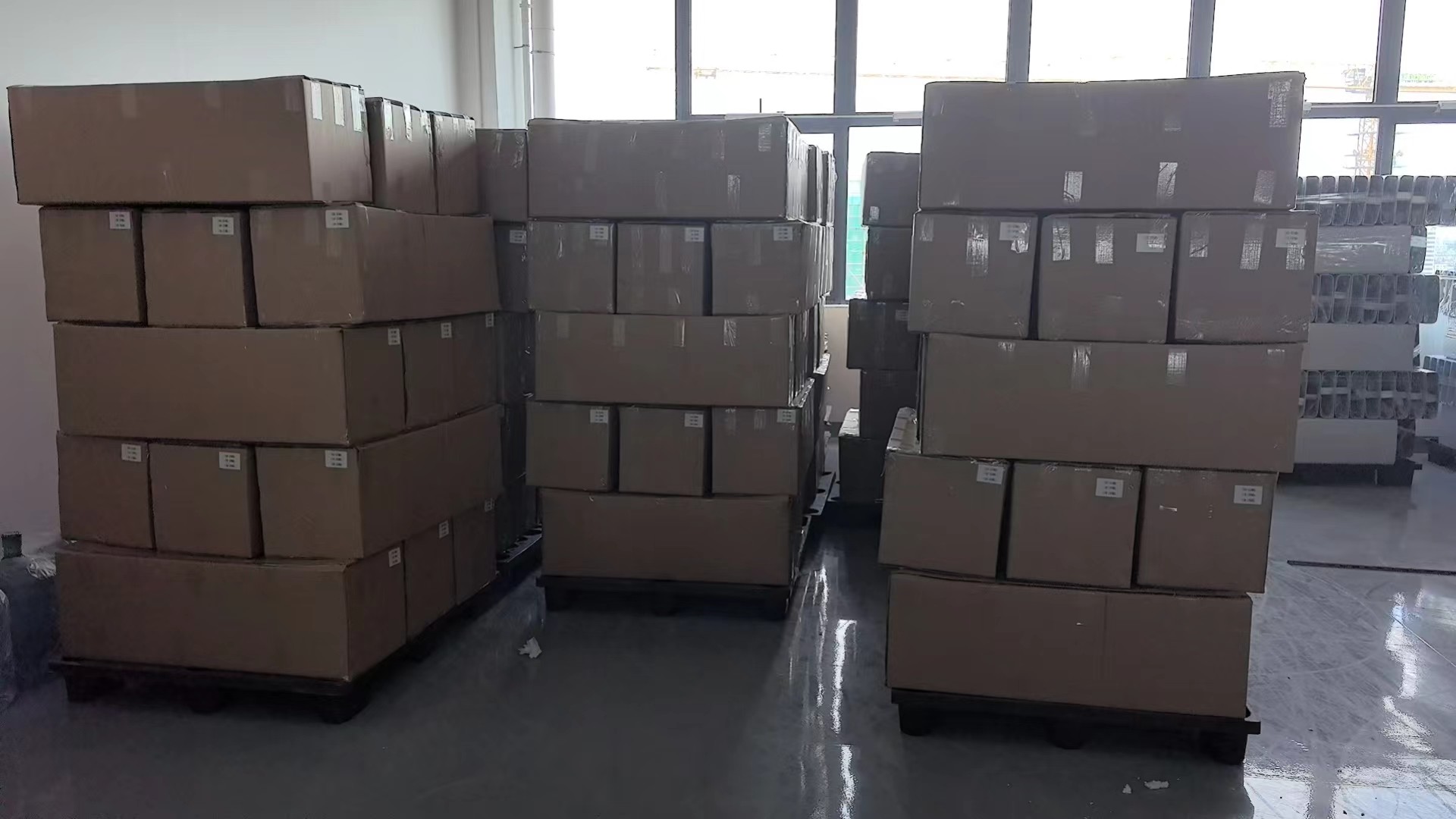

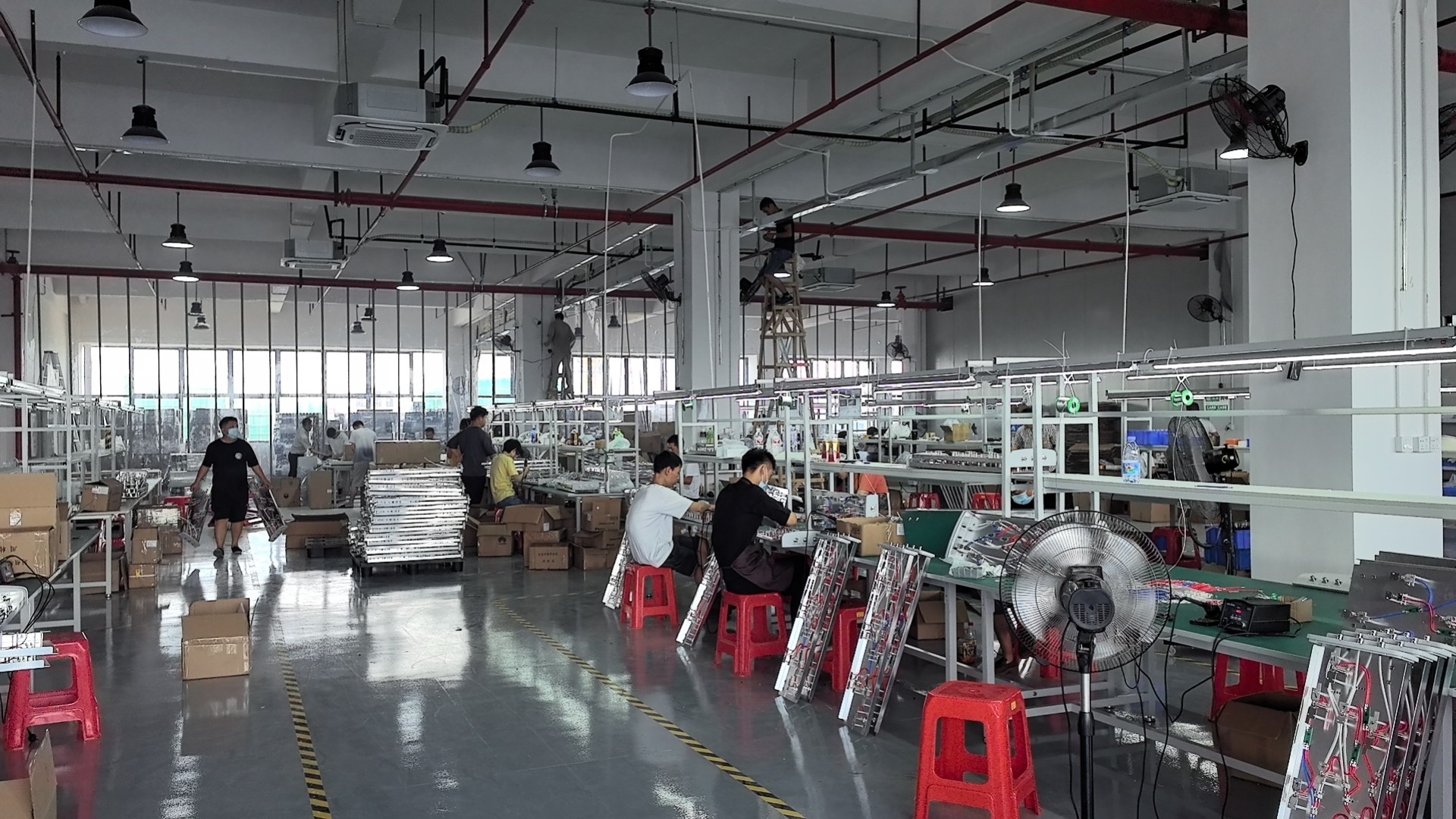

Factory real display
