KZ-2T Full Automatic Carton Packing Machine For Regular Round Or Square Glass Bottles And Plastic Bottles

Categories Carton Packing Machine
Brand Name: Jinwang
Model Number: KZ-2T
Certification: CE, ISO9001
Place of Origin: Made in China
MOQ: 1 set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 1 set per month
Delivery Time: 15-90 Working Days
Packaging Details: Wooden Case Packing
Capacity: ≤6 cartons/min (Packed in a carton without centerboard) ≤8 cartons/min (Packed in two cartons without centerboard)
Carton Size: L 300-500mm W 200-400mm H 100-300mm
Passing Rate: 99.9%
Weight: About 1200Kg
External Dimension: 2000×2200×2800-3600mm (L×W×H)
Adhesive Type Size: Φ40-95mm H80-230mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

KZ-2T Full Automatic Carton Packing Machine For Regular Round Or Square Glass Bottles And Plastic Bottles

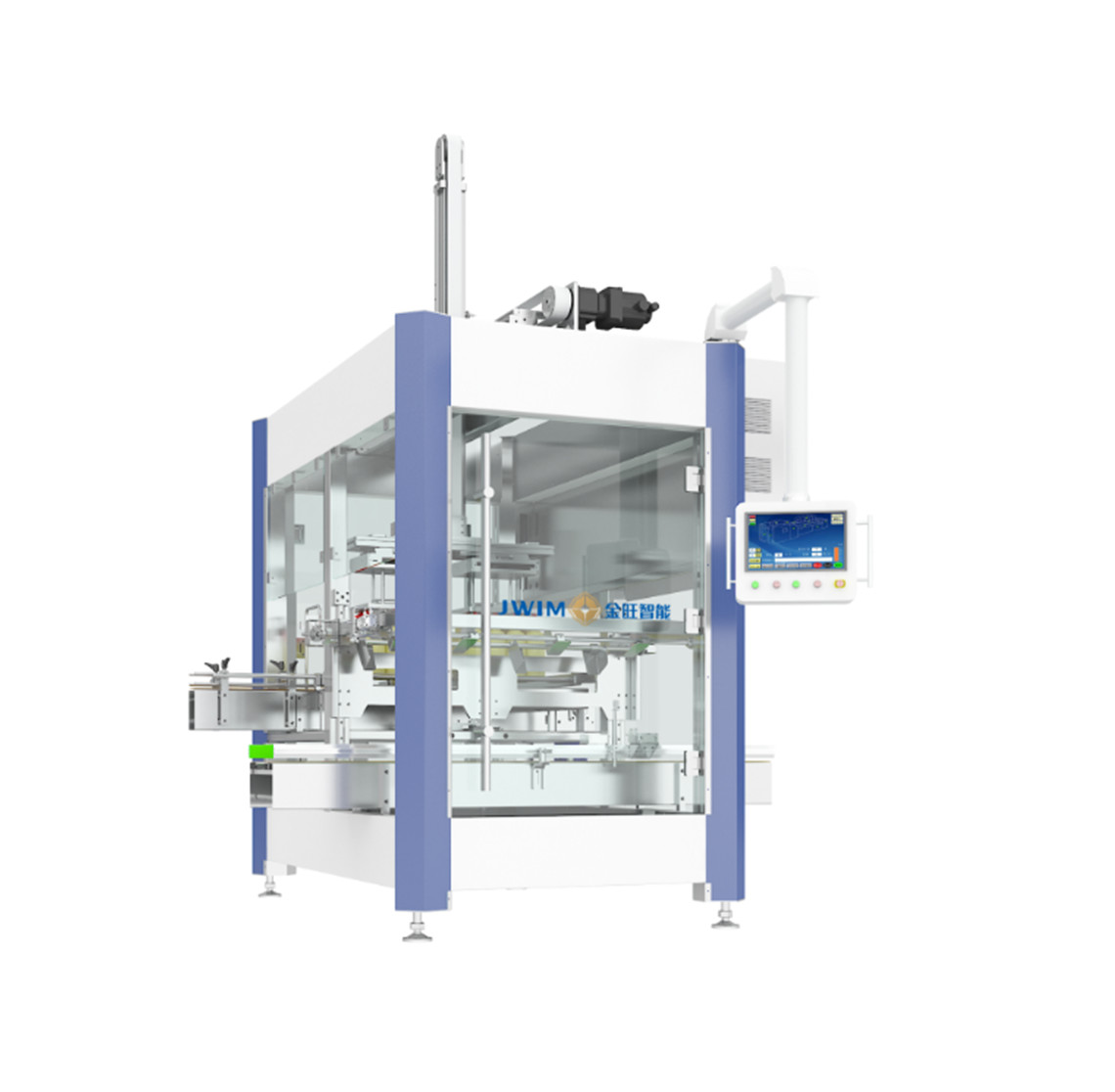

KZ-2T Full Automatic Carton Packing Machine

1.Introduction

This machine is suitable for automatic carton of regular round or square glass bottles and plastic bottles, realizing fully automatic secondary packaging of cartons, which can be applied to automatic carton of bottled products in agrochemical, veterinary medicine, food, daily chemical, pharmaceutical, and other industries. According to the demand of production capacity, it can choose one carton or two cartons.

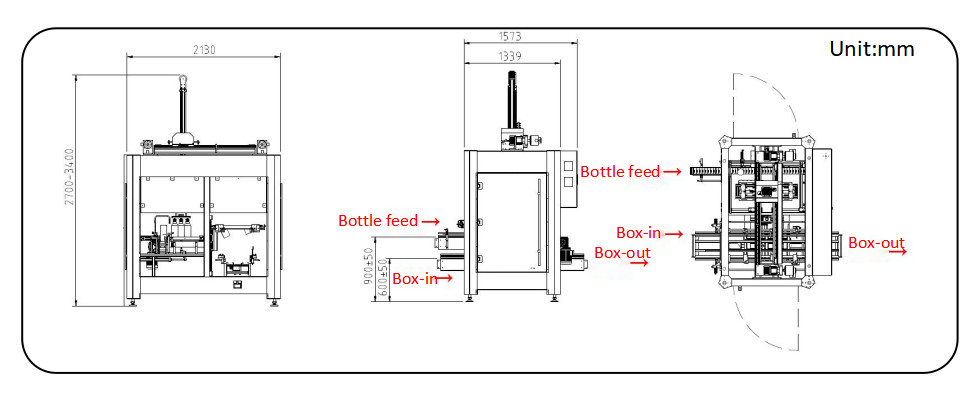

2.Machine Dimension


3.Technical Parameters


1Packing Speed

≤6 cartons/min (Packed in a carton without centerboard)

≤8 cartons/min (Packed in two cartons without centerboard)

*Actual capacity varies depending on product size, package material, etc.

2Carton SizeL 300-500mm W 200-400mm H 100-300mm
3Bottle SizeΦ40-95mm H80-230mm
4Passing Rate99.9%
5Air Pressure0.6-0.8MPa
6Power Source~380V 50Hz/3.3KW
7Lifting LimitLift the highest point to the ground 3400mm
8External Dimension2000×2200×2800-3600mm (L×W×H)
9WeightAbout 1200Kg


4.Electrical Configuration


S/NNameBrands
1Programmable ControllerSchneider
2TouchscreenSchneider
3Frequency ConverterSchneider
4Servo SystemSchneider

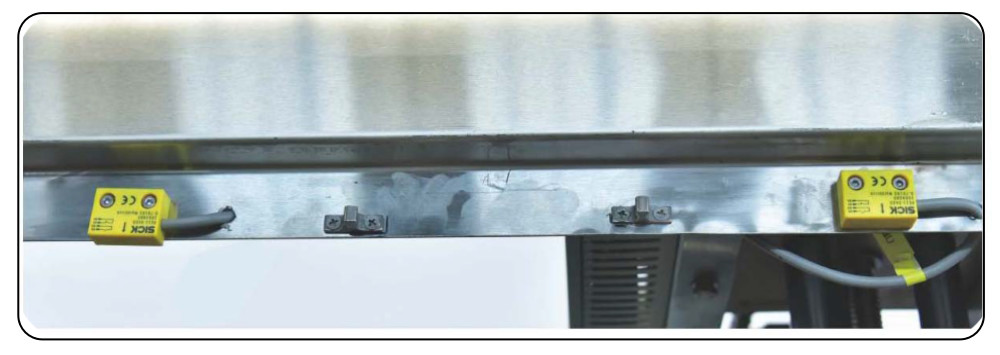

5Counting SenorSick
6Proximity SwitchSchneider
7Power SwitchSchneider
8Pressure SwitchSMC
9CylinderFTEC/Air TAC
10Solenoid SwitchFTEC/Air TAC
11ButtonSchneider
12Alarm LightSchneider
13BreakerSchneider

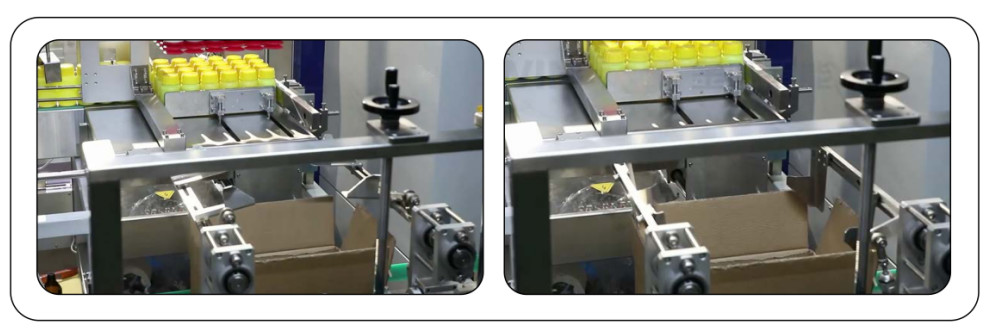

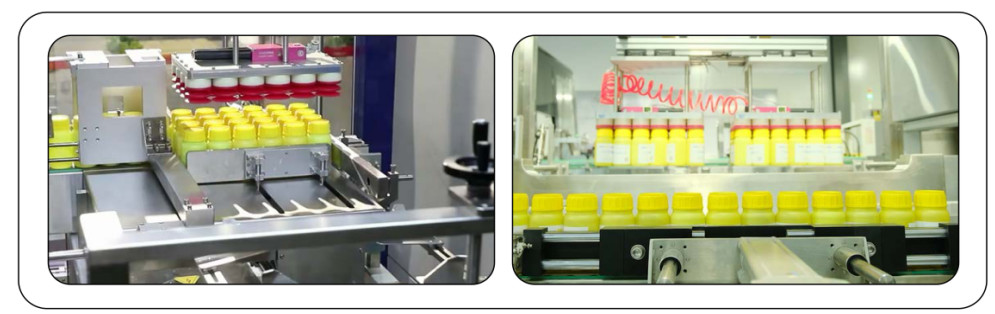

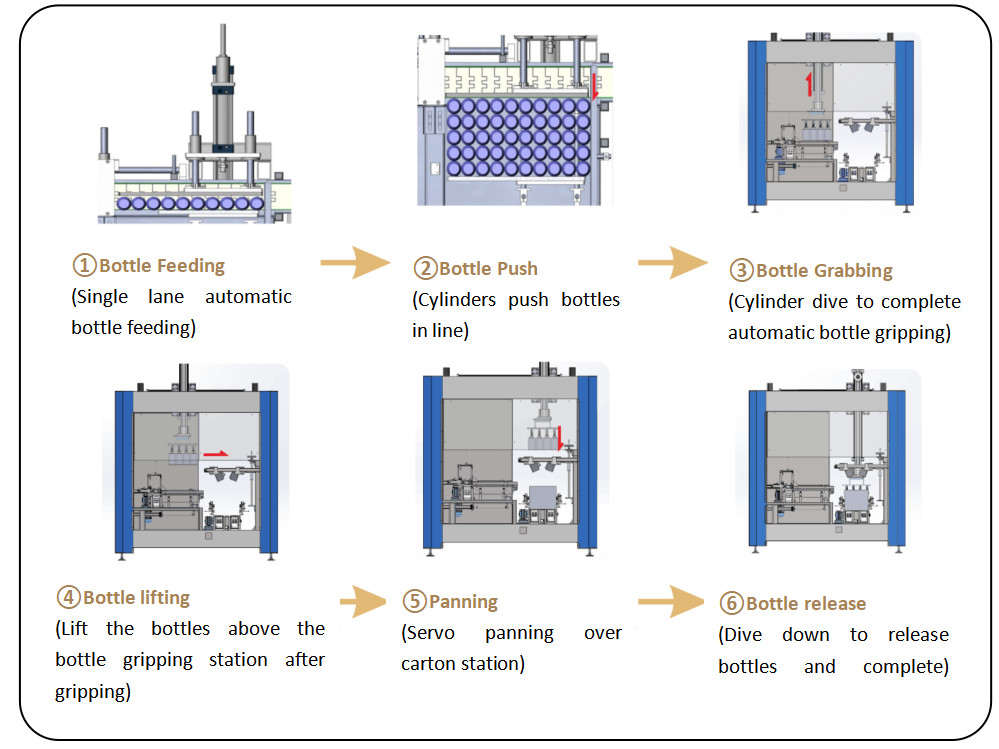

5.Working Process

6.Advantage

6.1 Saving production cost: save labor, improve production efficiency, can replace 2-3 carton workers.

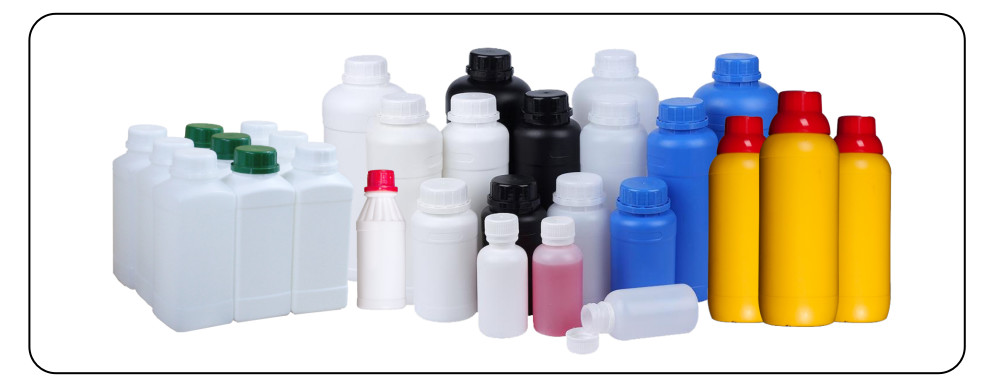

6.2 Wide range of applications: suitable for carton plastic bottles, glass bottles, aluminum bottles, cartons and other packaging materials.

6.3 Adopting automatic carton-supporting mechanism, the range of carton-supporting can be adjusted, and the process of box-loading is more reliable.

6.4 Adopting front and rear clamping plate to clamp and push, no bottle falling down, more accurate positioning.

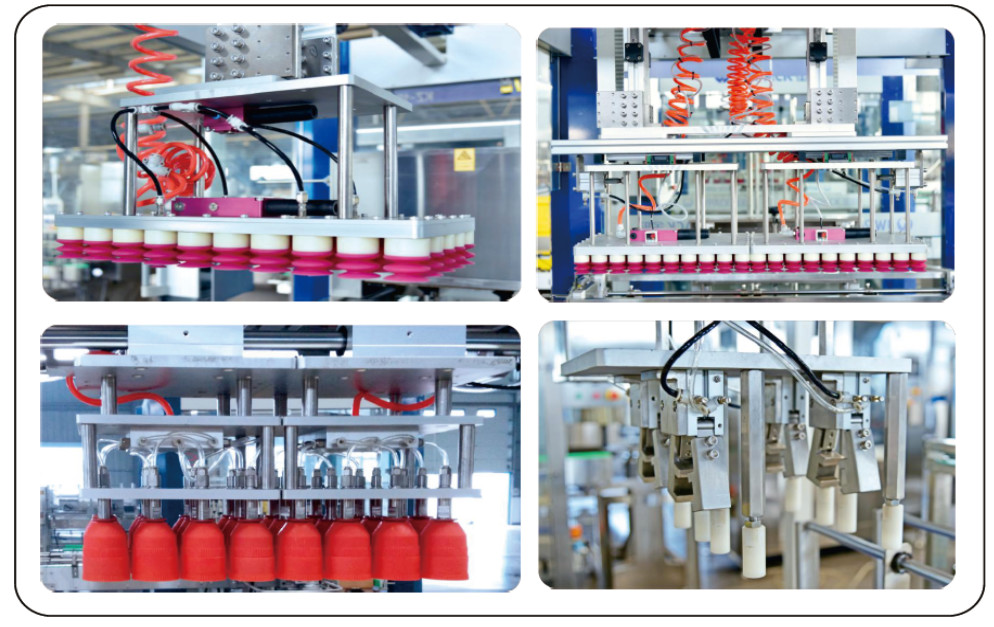

6.5 Easy to adjust the specification: through the replacement of different carton molds (bottle gripper, suction cup, gripper, etc.) with quick-fit connection, the specification can be switched quickly. The owner is required to provide bottles, caps and matching cartons, and our company is required to make the carton molds according to the package materials and cartons.

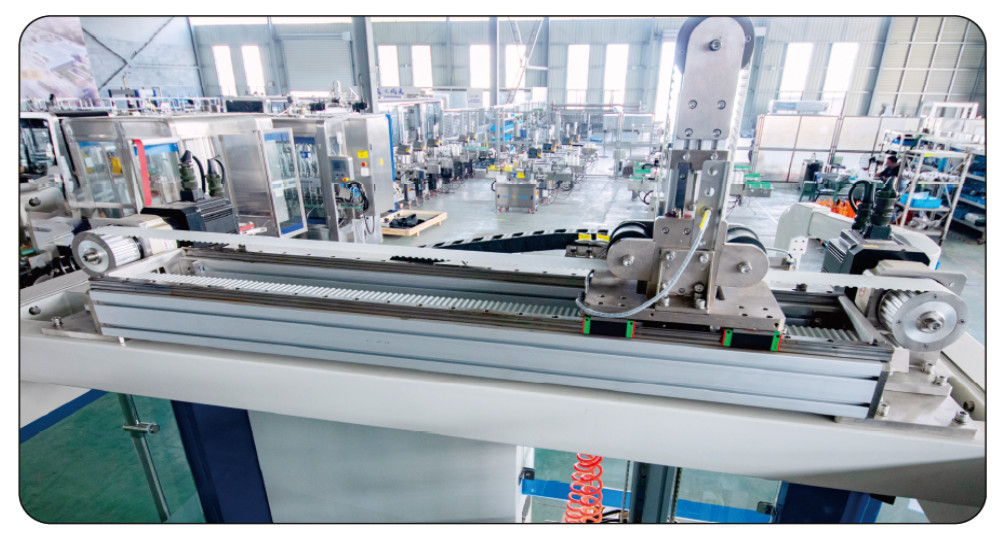

6.6 Dual servo-driven "cross-shaped" movement mechanism to realize the picking and loading of bottles, patented design, flexible and convenient adjustment.

6.7 Equipment to increase the safety door switch, open the door to stop when production, to protect personnel and equipment safety. (This function is optional)

6.8 The whole electrical control system of the equipment adopts French Schneider configuration uniformly, with good compatibility and low energy consumption, ensuring the stability and reliability of the equipment.

7.Support and Services:

Carton Packing Machine Technical Support & Services

Our technical support and services for the Labeling Machine are designed to provide the most comprehensive assistance for our customers. Our team of experienced engineers and technicians are available to provide assistance with installation, maintenance, troubleshooting, and repair services.

We offer in-house training on the operation and maintenance of the machine to ensure that our customers can get the most out of their purchase. Additionally, we provide online support through our website, which includes FAQs, product manuals, and other helpful resources.

If you ever have any questions or concerns about the Labeling Machine our team of experts are available to help. We believe that customer satisfaction is our top priority, and we strive to provide the best technical support and services possible.

8.Packing and Shipping:

Packaging and Shipping

The Carton Erector will be securely packaged in a cardboard box to protect it during shipping. We will use a reliable carrier to ship the product to the customer's address.

9.FAQ:

Q1: What is the Brand Name of the Packing Machine?
A1: The Brand Name of the
Packing Machine is JWIM.
Q2: What is the Model Number of the
Packing Machine?
A2: The Model Number of the
Packing Machine is KZ-2T .
Q3: Where is the
Packing Machine manufactured?
A3: The
Packing Machine is manufactured in China.
Q4: Does the Carton
Packing Machine require special maintenance?
A4: The Carton
Packing Machine requires regular maintenance to ensure proper operation.
Q5: What is the capacity of the Carton
Packing Machine?
A5: The capacity of the Carton
Packing Machine is determined by the size of the container to be filled.
