Heat Exchanger Tube Bundle D-E1 A ASME SA213 T11 U Bend Tube With ASME SA-516 GR.70 (N, FGP) Tubesheet ASME U STAMP

Categories Heat Exchanger Tube Bundle
Brand Name: YUHONG
Model Number: U Bend Tube Bunde ASME SA213 T11
Certification: ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Place of Origin: China,Korea
MOQ: 1Set
Price: 2000 ~ 10M usd
Payment Terms: L/C, T/T
Supply Ability: 50SETS/MONTHS
Delivery Time: 45---150 DAYS
Packaging Details: Pallet
Heat Exchanger Tube: ASME SA213 T11 U Bend Tube
Heat Exchanger Head: ASME SA516 GR.70N
Tubesheet: ASME SA-516 GR.70 (N, FGP)
Baffle: ASME SA-516 GR.70
Spacers: ASME SA-213 T11 SMLS TUBE
Certificate: ASME U certificate & Stamp
IMPINGEMENT PLATE: ASME SA-516 GR.70
Weight: 22700kgs
Company Info.
Yuhong Group Co.,Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

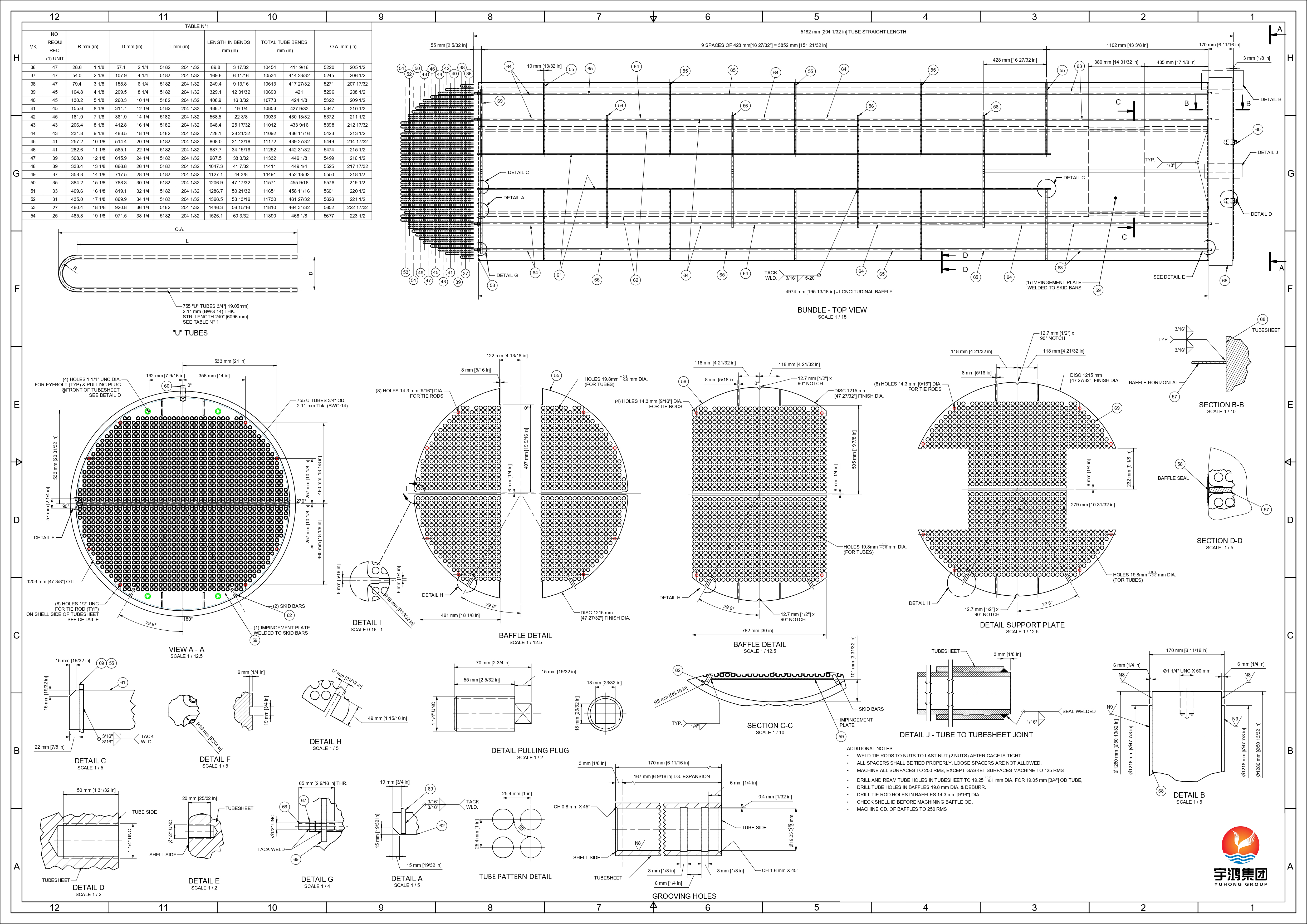

Heat Exchanger Tube Bundle D-E1 A ASME SA213 T11 U Bend Tube With ASME SA-516 GR.70 (N, FGP) Tubesheet ASME U STAMP

Heat Exchanger Tube Bundle, D-E1 A, ASME SA213 T11 U Bend Tube with ASME SA-516 GR.70 (N, FGP) Tubesheet, ASME U STAMP


Yuhong Holding Group deal with tube bundle, heat exchanger, Air cooler, Cooling Tower, Pressure Vessel, Tank, boiler, Per-Heater, Furnace more than 35 years , till now export more than 85 countries, the products material contain: Stainless Stee, Duplex Steel , Super Duplex Steel , Nickel Base Alloy Steel , Titanium , Copper & Copper Alloy, Carbon Steel , Chromium Molybdenum, ...

The Tube bundle finished assembling , we will arrange tube side pressure test according to design pressure, and witness by buyer/ TPT/ASME INSPECTOR (A.I.).


All of our equipments can accept ASME inspection , and final aslo can support ASME U STAMP.

ITEMDESPRITIONStandard And GradeSIZES (MM)QTYUNIT
1SMLS TUBE U TYPEASME SA213 T11O.D.19.05 X 2.11(Min.) X L755PCS
2TUBESHEETSA-516 Gr. 70 *(N,FGP)DISC 1280 mm FINISH DIA.1PC
3TUBESHEET///PCS
4TIE ROD & 2 NUTSAISI 10181/2" X 5020MM8SETS
5SPACERSA-213 GR. T11 SMLS19.05 X 2.11 X L MM62PCS
6BAFFLESA-516 Gr. 701211 mm X 4974 mm X 10MM10PCS
7IMPINGEMENT PLATESA-516 Gr. 70380 mm X 556 mm1PC
8SUPPORT PLATESA-516 Gr. 70DISC 1216 mm FINISH OD1PC
9TIE RODSCarbon Steel1/2" UNC16PCS
