M12 Connector Ultrasonic Sensor U18 Analog Output 0-10V 4-20mA

Ultrasonic Sensor U18 Analog Output 0-10V 4-20mA Detection 50-500mm M12 Connector

Product Description

Ultrasonic sensor U118-D500UIT-R00A has detection range 50-500mm, it supply voltage 10-30VDC,reverse-polarity protection. Output type 1 analog voltage output 0-10V + 1 analog current output 4-20mA, up/down.Ultrasonic sensors use ultrasonic waves for things like detecting the distance to an object, detecting the presence or absence of objects, and detecting the movement of objects.

Main Feature

• M18 mounting thread sleeve
• Easy to install

Basic Feature

• 1 Analog voltage output 0-10V and 1 analog current output 4-20mA
• Detection distance learning function is realized throught gray lines
• Temperature compensation
• Standard working voltage DC 10-30V

Technical Data

Model	U18-D500UIT-R00A
Dection range	50-500mm
Blind zone	0-50mm
Resolution	0.15mm
Repeatability	±0.15%F.S.
Accuracy	±1%(built-in temperature drift compensation)
Response time	32ms
Initialization time	＜ 500ms
Supply voltage	10-30V DC, reverse-polarity protected
Red LED	no object detected:Lights up, teaching-in when no object detected:Flashes
Green LED	object detected:Lights up, teaching-in when object detected:Flashes
Overcurrent protection	200mA,Red LED and Green LED flashing at the same time
Load impedance	I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
No-load current	≤30mA
Input type	Teach-in and synchronization
Material	Copper nikel-plated,plastic fittings,glass epoxy resin.
Enclosure rating	IP67
Connection type	5pin, M12 connector
Ambient temperature	-25℃ ~+70℃(248~343K)
Storage temperature	-40℃ ~+85℃(233~358K)
Weight	35g
Output type	UI: 1 analog voltage output 0-10V + 1 analog current output 4-20mA, up/down

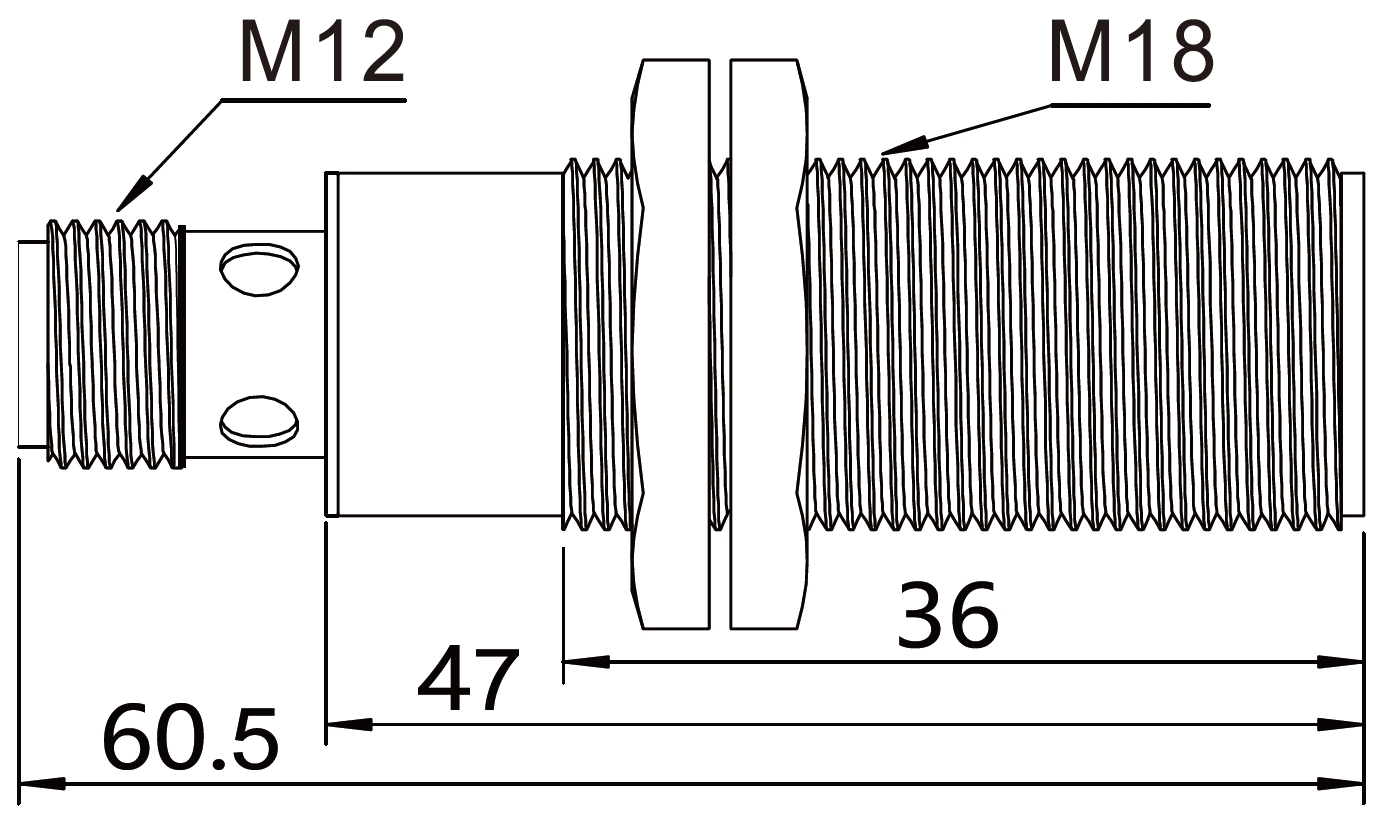

Dimensional drawing
