Anti Drone Detection System 3D Pulsed Doppler Radar

Categories Drone Detector
Brand Name: PTC
Model Number: RD-Z03
Certification: ISO 9000
Place of Origin: Shenzhen China
MOQ: 1set
Price: Contact Us
Payment Terms: T/T, Western Union
Supply Ability: 50000
Delivery Time: 10-20days
Packaging Details: Carton
Product Name: KU Band -Security Radar
Part number: PTC-RD-Z03
Function: UAV Detection
Detection Range: 3km
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Anti Drone Detection System 3D Pulsed Doppler Radar



Product Details:

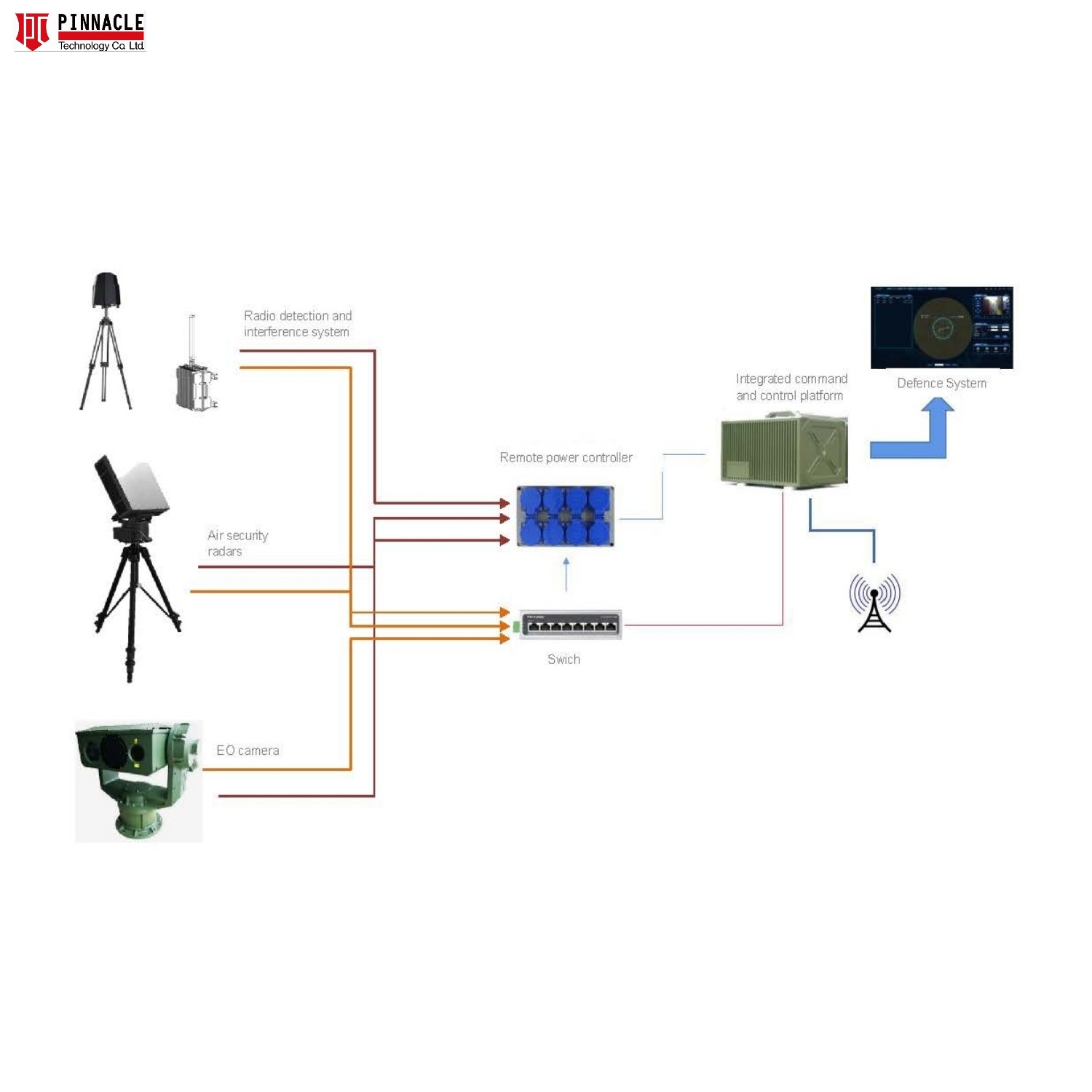

The 3-dimentional pulsed Doppler radar is a medium-range air security radars optimized for the detection of small UAVs. It can be equipped with photoelectric system, radio interference equipment, laser weapons and drone navigation deception system. Ku band all solid state T/R module and fractional Fourier transform digital signal processing technology are adopted. Adaptive clutter suppression algorithm and target matching algorithm are used for radar clutter and target echo. allows drones to be detected while reducing false alarms from birds by adaptive target matching algorithm and tracking algorithm.


Device

Item

Index

Radar

System

3-D Active Phase Array

Band

Ku band(16.1GHz~16.5GHz)

Power

≤100w

Detection range

Maximum range:3km (RCS=0.01m²)

Minimum range: 200m

Range resolution

≤10m

Azimuth resolution

elevation resolution

range resolution

20m

Antenna scanning cycle

6~10 rpm

Directional coverage

Horizontal: 360°, (≤7s)

Vertical: 42°

Scanning range

360° mechanical scanning

Weight

≤30kg

Dimension(Radar antenna)

422mm (L) x 422mm (W) x 124mm (D)

Power supply

DC 24V, 10A

Power consumption

≤120W

IP

66


Product Features and Advantages:

  • 3km UAV detection distance (DJI Phantom 4)
  • 360° scan
  • Radiation safety distance requirement compliance
  • Radiation hardening & ECCM compliance
  • 24/7, weather-proof operation
