Electric Multi Pulse Gantry Precision Lithium Battery Spot Welding Machine

Electric Multi Pulse Gantry Precision Lithium Battery Spot Welding Machine

● This lithium battery point welding machine is designed with pure electric air cylinder with low noise and stable pressure.

● Motor driver, precision control of the control box, three modes can be adjusted: single point/semi -automatic/automatic.

● CBLD-26 multi-pulse lithium battery spot welding machine adopts self-developed output energy optimization algorithm. The output voltage and output current are reasonable, the welding ability is strong, the welding point is strong, the welding is weak, the cremation is small, and the surface quality is excellent.

● Independent development of precision welding heads, accurate pressure adjustment control.

● Microcomputer technology control, control power grid voltage, and automatically track compensation.

● Applicable battery specifications: minimum is not less than 50mm, and the maximum is not more than 130mm.

● The welding platform uses high -quality tempered glass to protect the desktop without wear during welding.

● The vertical welding method is welding, and the pressure depth is manually controlled.

● Digital LED display, device parameters adjustment is more intuitive, easy to learn and easy to operate.

● Welding machine can pre -store multiple programs and can be changed and called at will.

● Compact structure, small volume, large power, large industrial circuit design, welding process is safe and reliable

1. battery welding case

1. Electric precision welding head

Motor driven welding, without external solenoid valve and cylinder, low noise.
Horizontal welding structure, double-wire guide rail design, left and right pressure can be adjusted separately.
Built-in pressure sensor to achieve accurate control and stable pressure application.

2. Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Various heights and types of batteries can be welded.

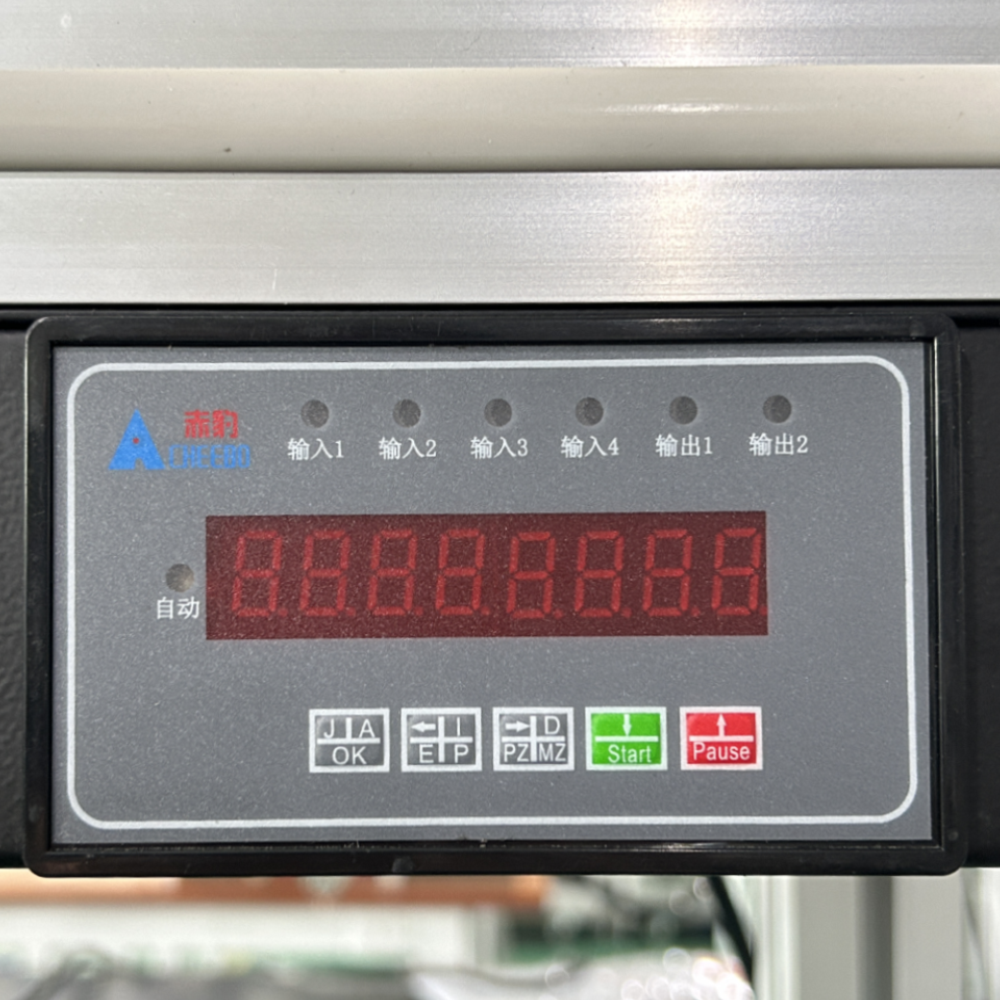

3. Electric control

No additional air source, low noise, fast welding speed, stable pressure.

Power on -- display 600 OE self-test screen -- press the up arrow to enter the system -- Turn on the power of the motion control system -- welding

head action -- Find the origin position -- Place the product to be welded on the desktop -- Step on the pedal -- welding head down -- spot welding

completed -- welding head back

Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.

Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.

Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.

Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.

Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
