| Categories | IPS TFT LCD Display |
|---|---|
| Brand Name: | RGH |
| Model Number: | RT18QQ005A |
| Place of Origin: | Shenzhern,China |
| MOQ: | 3PCS |
| Price: | Negotiable |
| Certification: | ISO9001/ISO14001 |
| Payment Terms: | L/C, T/T,Paypal |
| Supply Ability: | 3.5kk |
| Delivery Time: | 3-5weeks |
| Packaging Details: | Standard Exportation Package |
| Screen Size: | 1.8 inches |
| Resolution: | 128*160 |
| Brightness: | 320 cd/m² |
| Backlight Type: | LED |
| Interface: | MCU 16Bit |

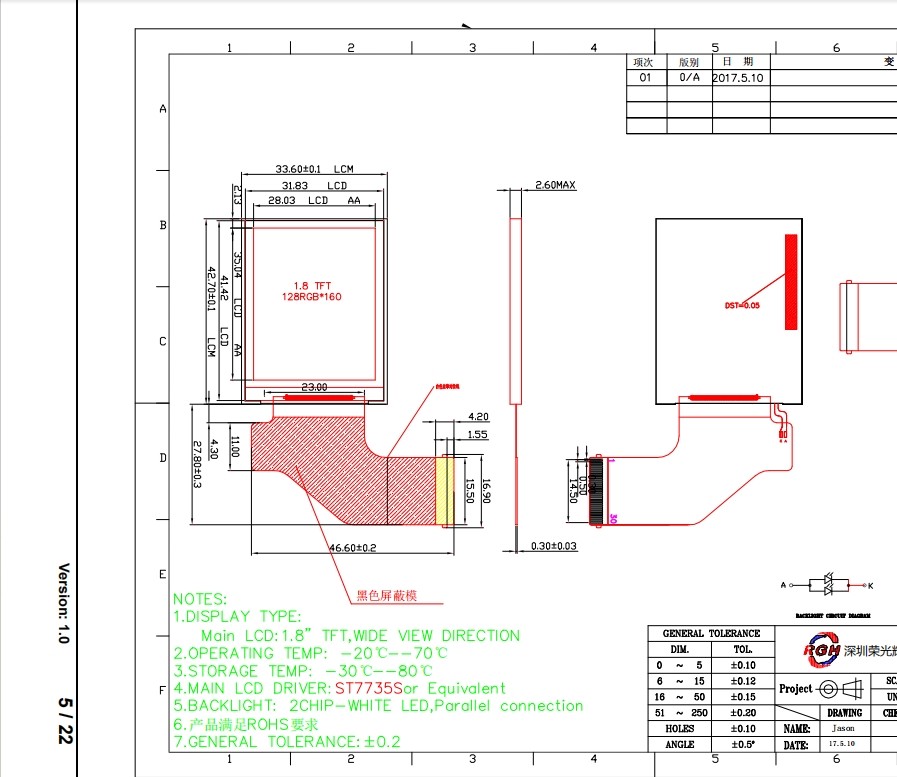

| Dimensions: | 33.60(W)X42.70(H)X2.6(T) |
| Viewing Angle: | ALL o' clock |
| Display Type: | Display Type |
| Company Info. |
| Rongguang Hui Optoelectronics Science and Technology |
| Verified Supplier |
| View Contact Details |
| Product List |
| NO. | Symbol | Level | Function |
| 1 | GND | Ground | |
| 2 | VCC | 2.8V | Power Supply for Analog,Digital System and Booster Circuit. |
| 3 | RESET | -This signal will reset the device and it must be applied to properly initialize the chip. -Signal is active low. | |
| 4 | CS | -Chip Selection Pin -Low Enable. | |
| 5 | RS | -Display data/command Selection Pin in MCU Interface. -D/CX=’1’:Display Data orParameter. -D/CX=’0’:Command Data. | |
| 6 | RD | -Read Enable in 8080 MCU Parallel Interface. -If not used,please fix this pin at VCC or GND level. | |
| 7 | WR | -Write Enable in MCU Parallel Interface. | |
| 8 | GND | Ground | |
| 9-24 | D15-D0 | -D[15:0]are used as MCU parallel interface data bus. | |
| 25 | LEDA | ||
| 26 | LEDK1 | Backlight- | |
| 27 | LEDK2 | Backlight- | |
| 28 | IOVCC | 1.8V | Power Supply for Analog,Digital System and Booster Circuit. |
| 29 | NC | ||
| 30 | GND | Ground |
 |  |
FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and
3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the LCM?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 21.5 inch TFT LCD display we can provide.
7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.
8. What shipping ways do you support?
A: We can consult with it.
|
