Brand Name: | Trancar Industries |
Model Number: | TCM-PM |
Certification: | CE/ISO |
Place of Origin: | China |
MOQ: | 1 set |
Price: | USD 9000-50000 Dollar per set |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 25 sets per Month |
Delivery Time: | 35 work days |
Packaging Details: | Custom design plywood box |
Product Name: | Steel Flat plate sheet automatic polishing machine |
Dimension: | 6500x3000x1200 mm |
Weight: | 3800kg |
Voltage: | 380V 400V 415V etc |
Usage: | Steel sheet surface polishing brushing |
Condition: | 100% new |
Control system: | Semi-automatic button control with PLC program |
Polishing efficiency: | 8-15 m2 per hour |
Warranty: | 18 Month |
Provide: | ODM & OEM |
Company Info. |
HEFEI TRANCAR INDUSTRIES CO.,LTD |
Verified Supplier |
View Contact Details |
Product List |

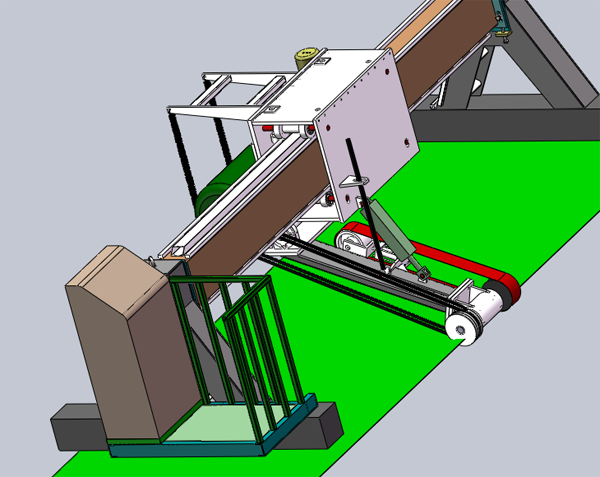

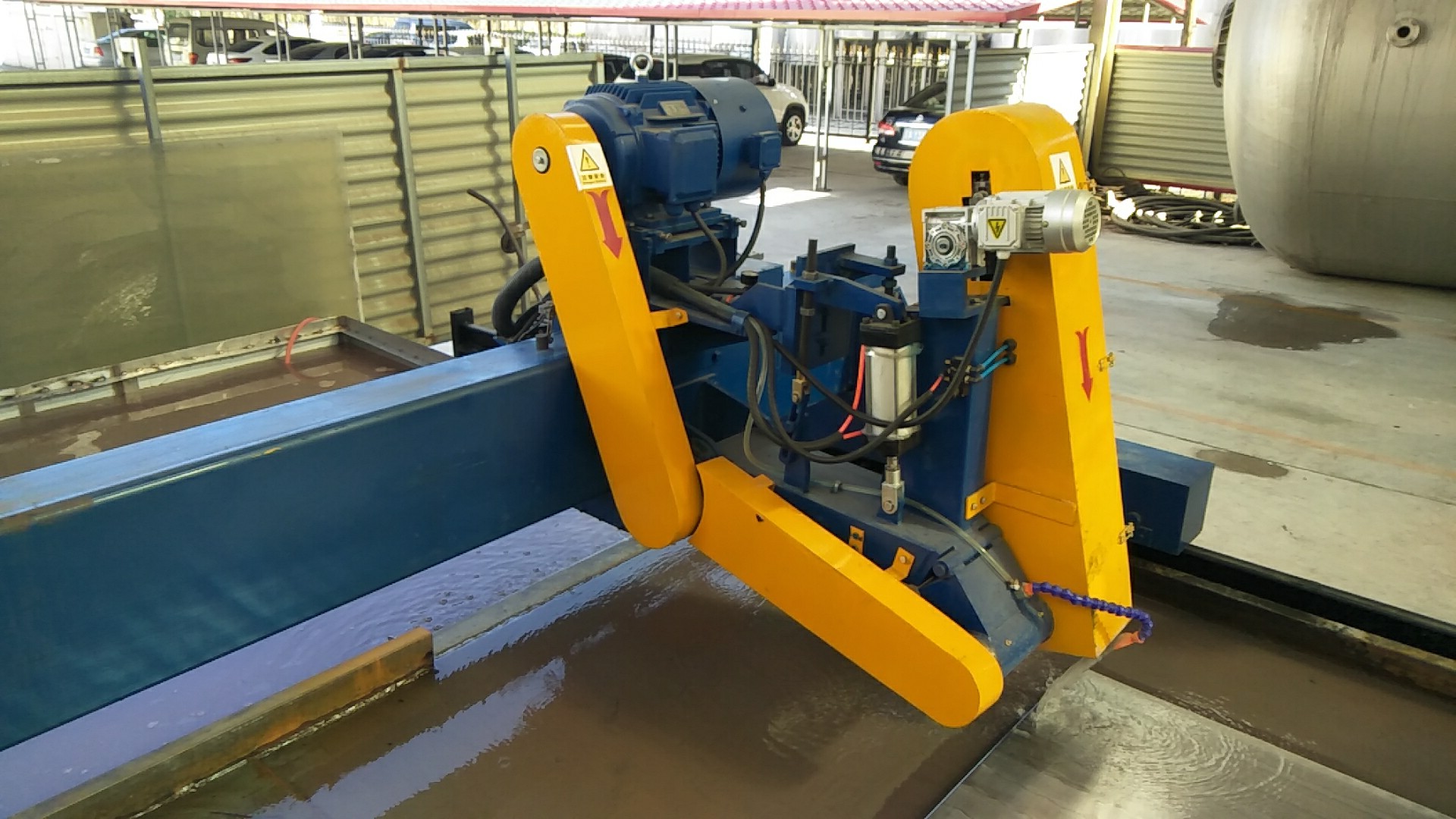

Trancar Industries TCM-PM polishing machine is a type of stainless steel surface finishing machine,it could do dust removing,welded joint’s surface grinding and mirror surface buffing for steel metal flat plate sheets.
It’s mainly used to polish & grind various materials of large plate sheets, such as the polishing of composite sheets and carbon steel plate before the composite grinding & surface finishing after sheet compounding.It’s especially suitable for the polishing,grinding and drawing of stainless steel plate.Due to the movement of the grinding head and the grinding method of the flat plate sheet,the length of the sheet is less than 10 meters,and the machine guide rail can be revised accordingly.Flat sheet automatic polishing machine are widely used in the field of Food processing,catering,brewing and chemical.
TCM-PM Steel Flat plate sheet automatic polishing machine parameter:
Normal configuration(customer design acceptable) | ||
Steel metal sheet size | Max.Available Width | 800 / 1500 / 2000 mm |
Thickness | ≧1.5 mm | |
Length | ≦10,000 mm | |
Machine Dimension | (L×W×H) 6500×3000×1200 mm | |
Polishing Precision | Surface roughness(Ra) | <=0.8μm |
Production Efficiency | Polishing working speed | 6~12 m2/h |
Input total Power | 8Kw/12Kw /20kw | |
Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization | |
Machine Weight | / | 3800kg |
Color | Grey/Green/Blue/Red/Yellow Custom design | |
Suitable Polishing Materials | Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) |
