Automatic Large Vertical Seam Welding Machine For Carbon Steel Tank Construction

EGW vertical gas-electric welder is an efficient automatic welding equipment according to the current feedback closed-loop to control the welding carriage improve. In a single weld pass forced by water-cooled once molding thickness from 10mm to 50mm is the main characteristic of it. Molten pool liquid level automatic control at the same time, And the length of wire stretched out is automatic adjusted. With the small volume, light weight welding carriage and flexible modular easy to update, it's used convenient. Widely used in petroleum, chemical industry, the blast furnace of thick plate welding and shipbuilding and other industries.

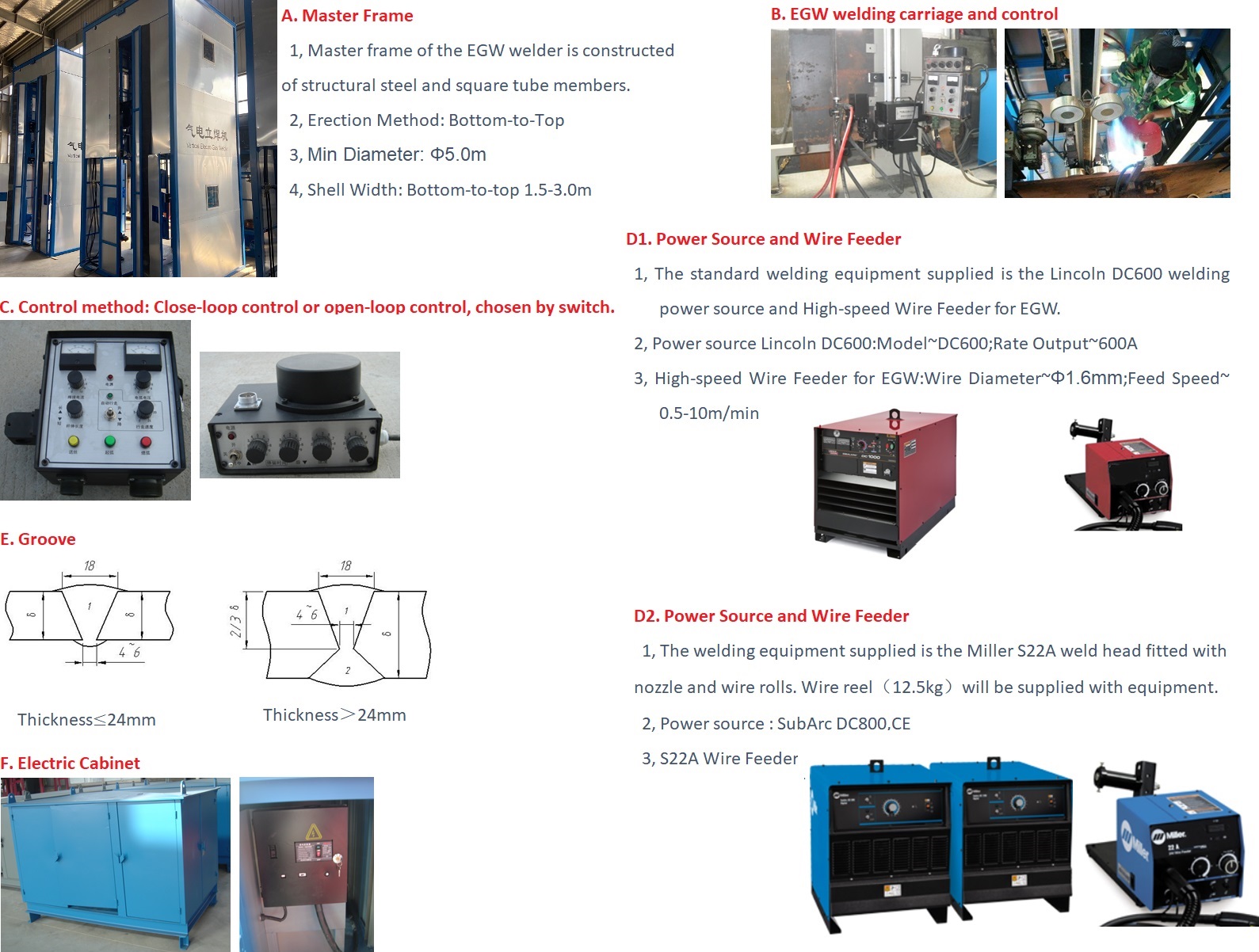

Reference Specification

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.

We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.

Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.

To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.

Our products covers tank welding machine, tank hydraulic jacking system, pipelayer, paywelder, pipeline groove machine, pipeline bending machine and other tank/pipeline construction equipment, etc.

To familiarize clients fast to use equipment/lines/system we supplied, we can arrange engineers to implement installation, training, and commission. Meanwhile, to better support client to finish their projects, we provide operators for construction, operation or we are able to undertake such work as subcontractor.


We can provide OEM service, all the equipment/lines supplied we can produce with client’s brand.

To verify what we supply can well satisfy clients’ requirement, we sincerely would like to invite client to visit us before issuing order. We prefer to set factory acceptance test process before shipment to remove clients’ concerns.

Your support is our forward motivation.



Win + Cooperation= WINCOO
