| Categories | LiFePO4 Lithium Battery |
|---|---|
| Brand Name: | Ecolite/OEM/ODM |
| Model Number: | 25.6v 100Ah |
| Certification: | UN38.3 MSDS CE |
| Place of Origin: | China |
| MOQ: | 1000pcs |
| Price: | Inquiry |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 units/month |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Carton Pallet Container |
| Nominal Voltage: | 25.6V |
| Rated Capacity: | 100Ah |
| Energy: | 2560wh |
| Resistance: | ≤45mΩ |
| Efficiency: | ≥0.98 |
| Cycle Life: | >4000cycles @1c,80% DOD |
| Self Discharge: | ＜5% per Month |
| Max, Modules in Series/Parallel: | 8S/1P |
| Dimension（W×D×H）: | 507×201.5×215mm |
| Company Info. |
| HEFEI ECOLITE ENERGY CO., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

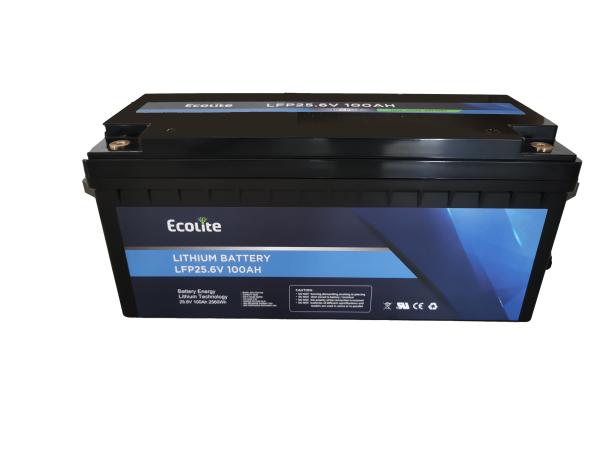

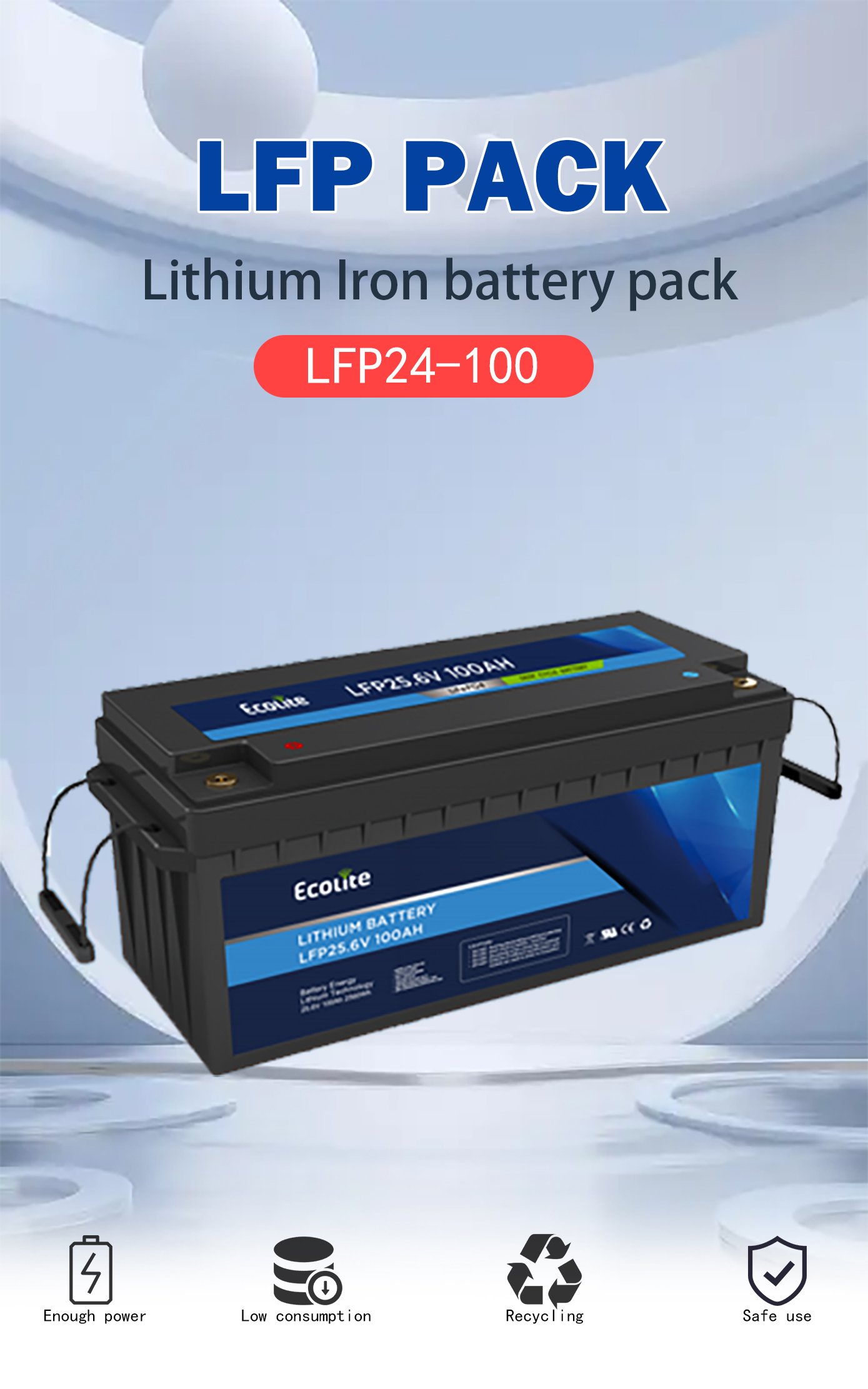

Household Solar Energy Storage System 25.6v 100Ah LFP Battery Pack With BMS LifePO4 Lithium Battery
Lithium Iron Phosphate(LiFePO4).The Safest Lithium Technology.Integrated Battery Management System(BMS).Maximum support 4 in series or 4 in parallel.
Long Cycle Life＞4000cycles@80%DOD.
High Density,High Discharge Current,High Temperature Range.
Low Weight,Free Maintenance.
Fast Charging.
Environment Friendly.
| Electrical Parameters | Mechanical Parameters | |||
| Nominal Voltage | 25.6V | Dimension(W×D×H) | 507×201.5×215mm | |
| Rated Capacity | 100Ah | Dimension(W×D×H) | 19.96×7.93×8.46'' | |
| Energy | 2560Wh | Weight | 23kg | |
| Resistance | ≤45mΩ | Terminal Type | M8 | |
| Efficiency | ≥0.98 | Battery Housing | ABS | |
| Cycle Life | ＞4000cycles@1C,80%DOD | Housing Protection | IP65 | |
| Self Discharge | ＜5%per Month | Cell Type-Chemistry | LiFePO4 Cell | |
| Max.Modules in Series/parallel | 8S/1p | Communication | Bluetooth | |
| Discharge Parameters | Charge Parameters | |||
| Continuous Discharge Current | 100A | Charge Method | CC-CV | |
| Pulse Discharge Current | 150A(＜10s) | Charge Voltage | 28.4~29.2V | |
| Recommended Volt.Disconnect | 20V | Recommended Float Voltage | 26.6~26.8V@100% | |
| BMS Discharge Cut-off Voltage | 20V | Recommended Charge Current | 50A | |
| Reconnect Voltage | 21.6V | Maximum Charge Current | 100A | |
| Short Circuit Protection | 300-800us | BMS Charge Cut-off voltage | 29.6V | |
| Temperature Parameters | ||||
| Discharge Temperature | -20℃ to 60℃ | |||
| Charge Temperature | 0℃ to 55℃ | |||
| Storage Temperature | -20℃ to 60 ℃ | |||
| BMS High Temperature Cut-off | 65℃ | |||
Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be
charged
Q: what is the warranty?
A: one year
Q:What is your payment term ?
A: T/T,L/C
Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design
of outlook for your special battery pack
Q :How many cells you can produce per month?
A: 1.8million
Q :What is the mode of transport?
A: usually by sea
Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
