| Categories | High Frequency Slip Rings |
|---|---|
| Brand Name: | JINPAT |

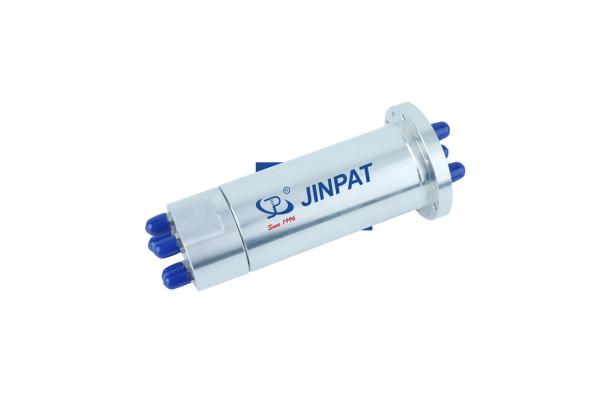

| Model Number: | LPFO-05D |
| Certification: | ISO9001.ISO14000.CE.UL.FCC.RoHS |
| Place of Origin: | China |
| MOQ: | 1PCS |
| Price: | Negotiable |
| Payment Terms: | TT/CC/Paypal |
| Supply Ability: | 500 pieces / week |
| Delivery Time: | 2 weeks ARO |
| Packaging Details: | Standard/On Request |
| Number of Circuits: | 5 |
| Lsolation, min.: | 55dB |
| Case surface finish: | Chromate conversion coat |
| Life Time, in.: | 5milion revolutions |
| IP Protection Level: | IP40 |
| Rotating Speed, Max.: | 30rpm |
| Company Info. |
| JINPAT Electronics Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Description
JINPAT Electronics is a well-established slip ring company. In the 25 years since its establishment, JINPAT has devoted itself into producing various kinds of slip rings. JINPAT has offered numerous successful rotary transmission solutions for different industries. JINPAT slip rings are broadly applied in automated producing industry, surveillance systems and offshore platforms, etc. To solve the uprising needs in transmitting large data while allowing 360-degree rotation, JINPAT has made great effort in the R&D of fiber optic rotary joints.
| Specifications | |||
| Lsolation, min. | 55dB | Operation Temperature | -40~+65℃ |
| Starting Torque | 0.3Nm | Storage Temperature | -50~+70℃ |
| Continuous Rotational Torque | 0.1Nm | Humidity(Operation ) | 95% |
| Rotating Speed, Max. | 30rpm | Humidity(Storage ) | 95% |
| Life Time, in. | 5milion revolutions | Number of Circuits | 5 |
| Body Material | Alurinum alloy | IP Protection Level | IP40 |
| Case surface finish | Chromate conversion coat | Weight, approx | 0.5kg |
