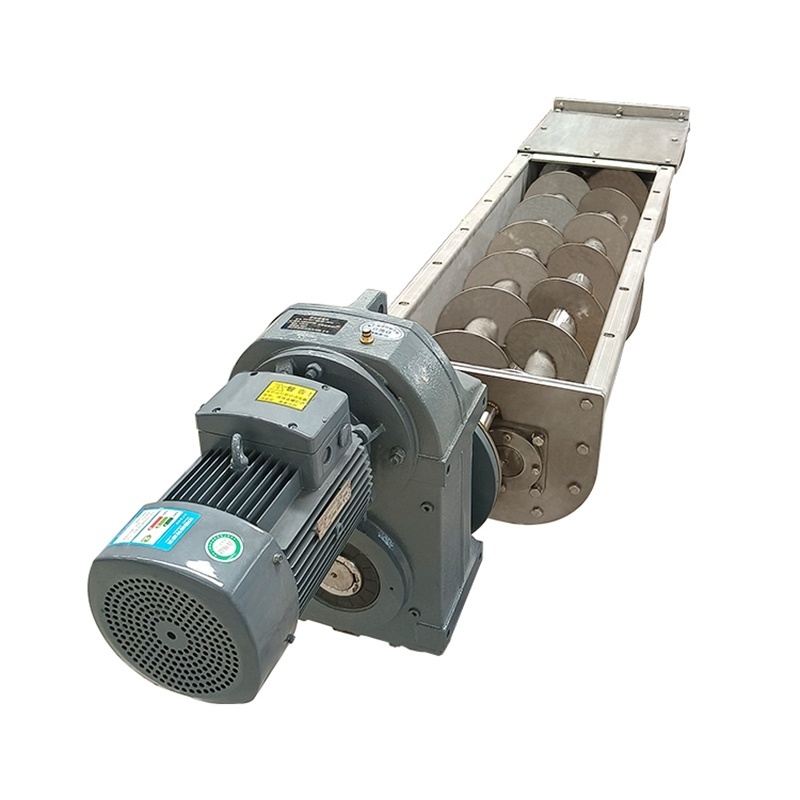

Heat Resistant Thermal Screw Conveyor Customized Double U Shape with OEM Customization

Heat Resistant Thermal Screw Conveyor Customized Double U Shape with OEM Customization

Heat Resistant Thermal Screw Conveyor Customized Double U Shape with OEM Customization
Heat Resistant Thermal Screw Conveyor Customized Double U Shape with OEM Customization
Categories Screw Auger Conveyor
MOQ: 1 set
Price: US$8000~US$30,000/set
Payment Terms: T/T, Western Union
Supply Ability: 500000/Year
Delivery Time: 20~35 working day
Packaging Details: Wooden Case
Brand Name: WeSeW
Model Number: AC0001
Certification: CE,UL
Place of Origin: China
Model NO.: AC0001
Material: Stainless Steel
Material Feature: Heat Resistant, Fire Resistant
Application: Chemical Industry, Grain Transport, Mining Transport, Power Plant
Condition: New
Applicable Industries: Manufacturing Plant, Energy & Mining
Machinery Test Report: Provided
Core Components: Motor, Engine
Dimension(L*W*H): Customized
Transport Package: Wooden Box
Specification: Customized
Trademark: WESEW
Origin: China
Package Size: 800.00cm * 80.00cm * 50.00cm
Package Gross Weight: 150.000kg
After-sales Service: Provided
Warranty: 1 Year
Structure: Conveyor System
Customization: Available Customized Request
Shipping Cost: about shipping cost and estimated delivery time.
Currency: US$
Return&refunds: You can apply for a refund up to 30 days after receipt of the products.
Contact Now
Company Info.
Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Heat Resistant Thermal Screw Conveyor Customized Double U Shape with OEM Customization

Product Description


OEM Custom Double U Shape Feed Horizontal Auger Screw Conveyor

Applicable IndustriesFood & Beverage Factory, Construction works , Ceme...
MaterialStainless steel
StructureConveyor System
Warranty1 Year
Machinery Test ReportProvided
Core ComponentsMotor, Bearing
Feeding materialPower or granule
LengthCustomized 1~30m
ProcessingPainting, burnishing, Bead blasting
SpeedAdjsutable Speed
Material FeatureHeat Resistant
Dimension(L*W*H)Depends on the model
Video outgoing-inspectionProvided
After Warranty ServiceVideo technical support, Online support
After-sales Service ProvidedOnline support
TypeTube, trough, shaftless, vertical

Product Description:
The double-shaft screw conveyor is equipped with a solid screw in a U-shaped groove, one of which is left-handed and the other is right-handed. When working, the two screws are rotated through a pair of gears at the shaft extension position. The rotation of the spiral body makes the material move axially, so as to achieve the purpose of conveying.

Working Principle:
The material flows in from the feed port. When the rotating shaft rotates, the material is subjected to the normal thrust of the helical blade. The radial component of the thrust and the friction force of the blade on the material may drive the material to rotate around the axis, but due to the material itself Due to the gravity of the material and the friction of the trough to the material, it does not rotate with the helical blade, but moves along the axial direction of the trough under the axial component of the normal thrust of the blade.

Features:
1. Left-handed and right-handed combined conveying;
2. The cross-sectional area is large, and the conveying capacity is larger;
3. It has physical properties such as conveying, stirring, crushing, and pushing.

Technical Parameters:
Serial No.Modelconveyance capacity(m³/h)Power(kw)Groove inner width(mm)Material
1SLS1000.1-0.5Specifically customized according to material, conveying volume and angle.198carbon steel/stainless steel
2SLS1500.3-1.5294
3SLS2000.8-4.0388
4SLS2501.5-7.5486
5SLS3005.0-13.00576

Scope of application:
It is suitable for powdery, granular and small block materials in chemical industry, environmental protection, food and other industries.

Drawing:
OEM Custom Double U Shape Feed Horizontal Transmission System Auger Screw Conveyor
Product Display

OEM Custom Double U Shape Feed Horizontal Transmission System Auger Screw ConveyorOEM Custom Double U Shape Feed Horizontal Transmission System Auger Screw ConveyorOEM Custom Double U Shape Feed Horizontal Transmission System Auger Screw Conveyor
OEM Custom Double U Shape Feed Horizontal Transmission System Auger Screw Conveyor
OEM Custom Double U Shape Feed Horizontal Transmission System Auger Screw Conveyor
OEM Custom Double U Shape Feed Horizontal Transmission System Auger Screw Conveyor

Related Products

OEM Custom Double U Shape Feed Horizontal Transmission System Auger Screw Conveyor

Certifications

OEM Custom Double U Shape Feed Horizontal Transmission System Auger Screw Conveyor
Company Profile


Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd was established in 2005. "Kaixi makes and serves the whole world" is the common pursuit and goal of all Kaixi people. Our company will honor our promise to customers with the business philosophy of "better technology, higher quality and better service", and make Kaixi manufacturing become the benchmark of Chinese manufacturing and go global! Welcome people from all walks of life to visit our company for on-the-spot investigation and negotiation.


OEM Custom Double U Shape Feed Horizontal Transmission System Auger Screw ConveyorOEM Custom Double U Shape Feed Horizontal Transmission System Auger Screw Conveyor

We are factory and doing traditional export business more than 15 years!
If you have any demand for our products, please feel free to contact me.


Packaging & Shipping

OEM Custom Double U Shape Feed Horizontal Transmission System Auger Screw Conveyor
FAQ

Q1: Are you trading company or manufacture?
A: We are metal factory only for oversea trading.

Q2: How long is your delivery time?
A: Generally 5~10 days for sample.and 20-40 days for mass production. it is depends on order quantity.

Q3: Do you provide samples?Is it free or extra?
A: Yes, we could offer the sample for free charge once customer place batch order.

Q4: What is your terms or payment?
A: Payment<1000USD shall be 100% T/T in advance. Payment>USD1000, 50% T/T in advance, pay balance before shippment.

Q5: Can you produce order and according to the samples?
A: Yes, we can produce by your samples .

Q6: How to get the quote ?
A: Please send your 3D drawings(PDF,STP, IGS, STL...) to us by email with the material, surface treatment and QTY, then offer the best price for you within 12 hours.

Q7: What are your shipping way?
Sample order: by air freight with 7-15 days.
Batch order: by sea ship( or by train to Europe) with 30-40 days.
