Categories | Tinplate Sheets |
---|---|
Brand Name: | QuanJiang |
Model Number: | tinplate SPTE TFS |
Certification: | SGS, Mill certificate |
Place of Origin: | China |
MOQ: | 25tons |
Price: | Negotiated |
Payment Terms: | T/T |
Supply Ability: | 50000MT/Month |
Delivery Time: | negotiated |
Packaging Details: | thin plastic film + rust-proof paper+metal cover+metal angles+straps+pallet |
material grade:: | MR prime tinplate |
Hardness:: | DR8CA,DR9CA, DR8,DR9,T5BA,T5CA, DR7CA,TH550,T4CA,T4BA, L T5CA K,T3BA, T2.5BA, T2.5CA |
Annealing:: | BA CA |
Thickness:: | 0.15-0.45mm,0.17mm,0.15mm,0.16mm,0.18mm,0.19mm,0.20mm customized |
Width: | 600-1030mm,925mm,945mm,1041mm,998mm and customized |
Length: | 600-1030mm,901mm,955mm,956mm,935mm or as coils |
Tin Coating:: | 1.1/1.1, 2.8/2.8,5.6/5.6, etc. or customerized |
Surface:: | Bright,Stone,Matte, Sliver, rough stone |
Application:: | Food Cans, Beverage Cans, Aerosol Cans, Paint Cans, Chemical Cans |
Package:: | thin plastic film + rust-proof paper+metal cover+metal angles+straps+pallets |
Company Info. |
SHANGHAI QUANYE METAL PACKAGING MATERIALS CO.,LTD |
Verified Supplier |
View Contact Details |
Product List |
Corrosion-Resistant Tinplate Coils and Sheets for Long-Lasting Packaging
Characteristics
1. Good corrosion resistance:
The protective effect of the tin layer: The tin layer on the
surface acts as a corrosion-resistant barrier, isolating oxygen,
moisture and other corrosive substances in the external environment
from contact with the steel matrix. This feature is crucial for
packaging purposes because it prevents the contents of the package
from chemically reacting with the tinplate, while protecting the
tinplate itself from corrosion.
2. Electrochemical protection: Even if the tin layer is partially
damaged, due to the electrochemical relationship between tin and
iron, tin will be corroded preferentially as a cathode, thereby
playing a certain protective role on the iron matrix and slowing
down the corrosion rate of iron.
3. Strong machinability:
Suitable for forming processing: Tinplate rolls and sheets can be
made into packaging containers of various shapes, such as round
cans, square cans, boxes, etc., through stamping, bending,
stretching and other processing processes. This good machinability
enables it to meet the shape and structure requirements of
different product packaging.
4. Easy to seal: When making packaging containers, tinplate is easy
to perform sealing operations such as welding and crimping to
ensure the sealing of the packaging, which is especially important
for products that need to be stored for a long time.
Reasons for being suitable for durable packaging
1. Physical barrier
The tin-plated layer and the base steel layer of tinplate form a
solid physical barrier. For the products in the package, whether it
is food, medicine or other environmentally sensitive items, this
barrier can prevent the intrusion of external light, moisture,
oxygen and microorganisms, thereby maintaining the stability of
product quality and extending the shelf life of the product.
2. Mechanical strength
Tinplate itself has a certain mechanical strength and can withstand
a certain amount of pressure, collision and friction. During the
transportation, storage and handling of the product, this
mechanical strength can protect the product in the package from
physical damage. For example, in the packaging of canned food,
tinplate cans can withstand the extrusion during stacking and
transportation without easily deforming or breaking.
3. Chemical stability
Due to its corrosion resistance, tinplate will not react chemically
during long-term contact with the contents of the package, will not
release harmful substances into the contents, and will not be
corroded by the contents. This is very critical for the packaging
of products such as food and medicine that have extremely high
safety requirements.

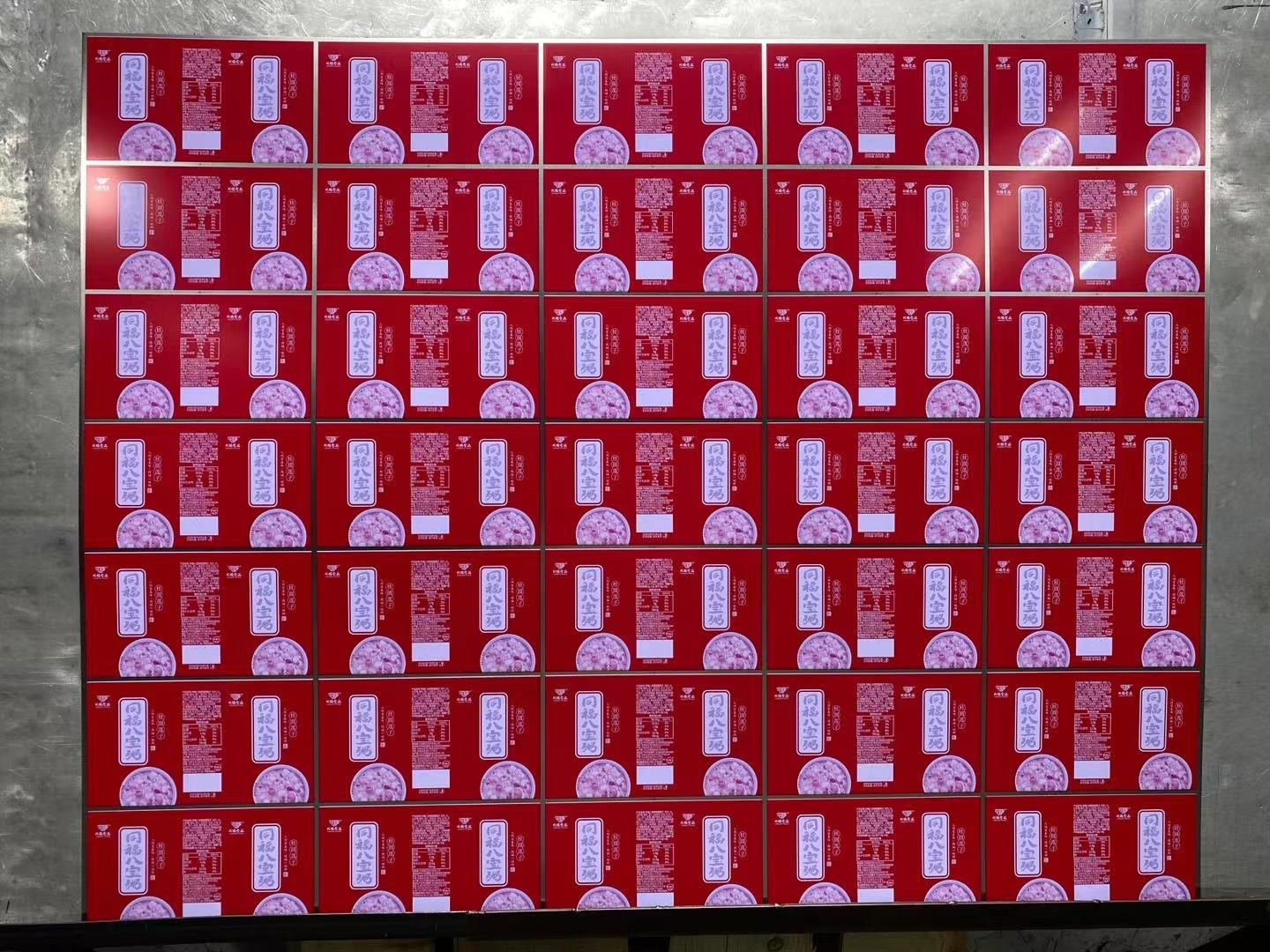

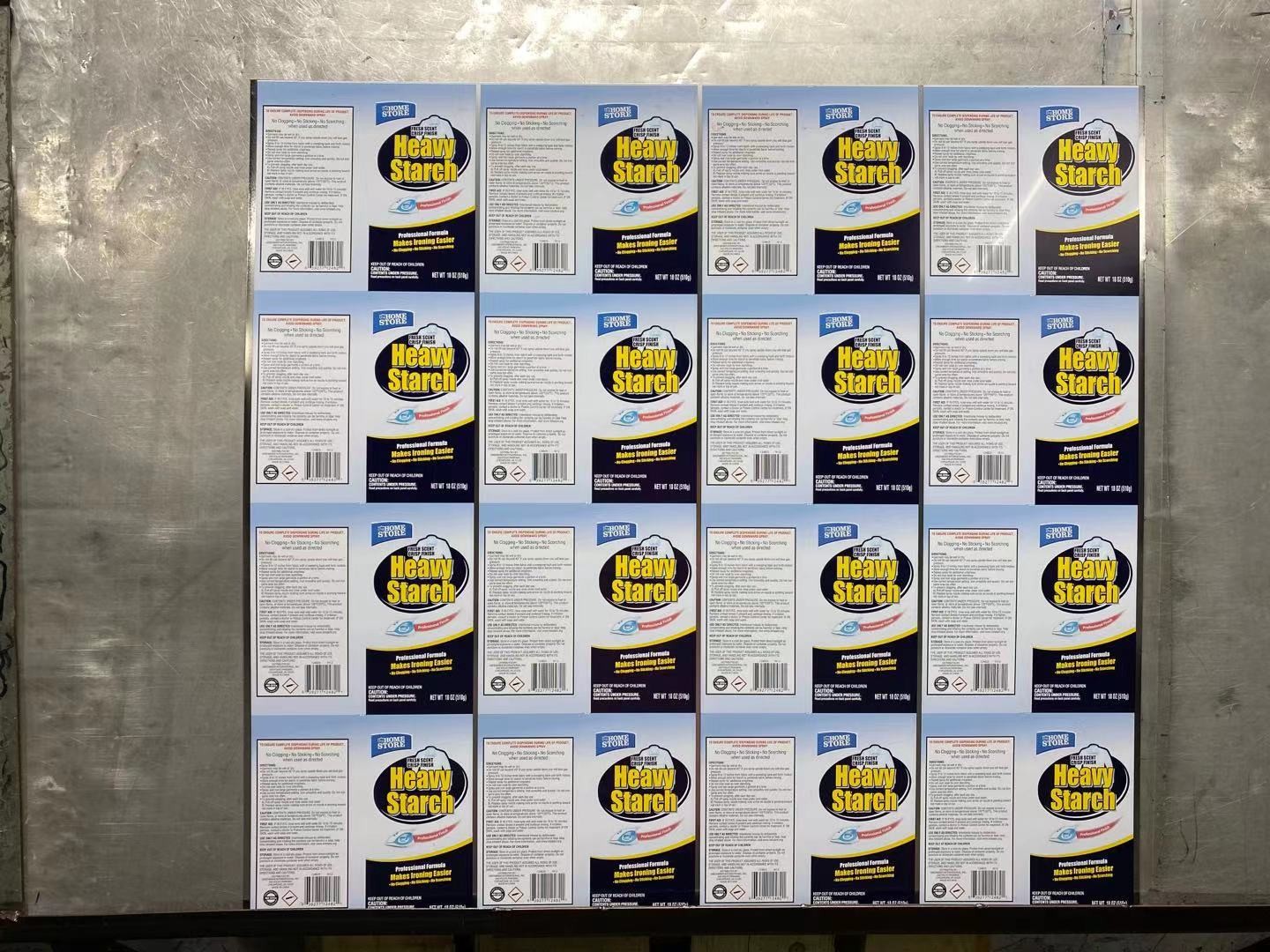

4. Decorativeness
The surface of tinplate is smooth and flat, which is suitable for
decorative operations such as printing and painting. By printing
exquisite patterns, logos and product information on the surface of
tinplate, the attractiveness of the product can be improved. At the
same time, these surface treatments can further enhance the
corrosion resistance and wear resistance of tinplate, which helps
the packaging to be durable.
Features of TFS Products | |
Excellent paint adhesion | TFS has excellent paint adhesion properties that far surpass those of ETP, allowing its use for making DRD cans and adhesive bonded cans. |
Excellent heat resistance | High-temperature baking causes neither discoloration nor deterioration in material properties. |
Excellent resistance to Sulphur Blackening | The metallic chromium in TFS has excellent sulphide resistance property when canning protein-rich foodstuff such as fish. TFS compensates for the expensive sulphur resistant lacquer. |
Excellent filiform rust resistance | TFS has a excellent under film corrosion resistance. |
Excellent alkali resistance | The coating in TFS is not amphoteric. Alkaline products such as detergents and dispersion colours can be packed in TFS with advantage. |

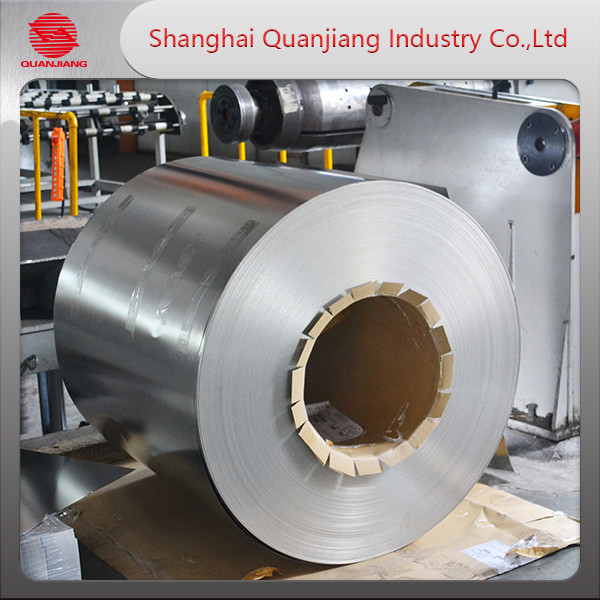

TINPLATE COILS SHOW

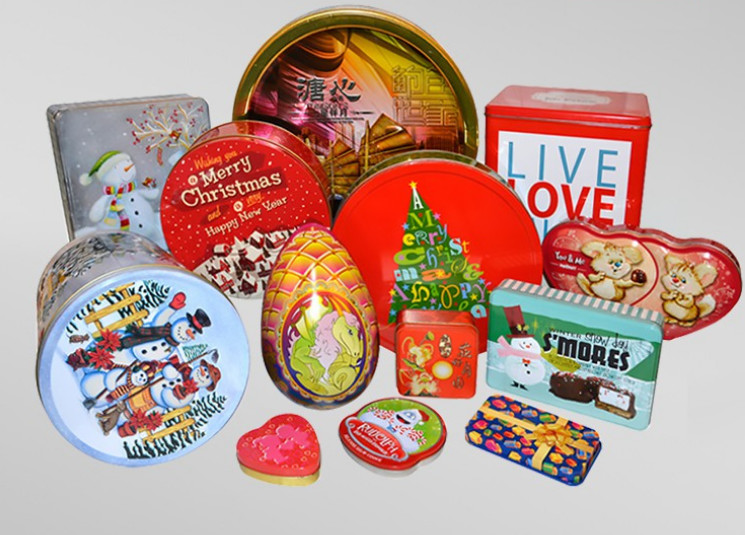

Application:
Tinplate is widely used for the packaging of products. Such as food cans,
beverage cans, pet cans, closures,general line cans and so on.
Classion | Main Applications | |
Food Cans | Cans for preserved food | Preserved fishery and agricultural products, etc. |
Cans for beverages | Juice, carbonated soft drinks, other beverages, etc. | |
General Cans | 4L Cans | Automobile oil, mechanical oil, etc. |
18L Cans | Industrial containers for paint and oils | |
Pail Cans | Industrial containers for paint and oils | |
Aerosol Cans | Cosmetics, butane gas, pesticide, etc. | |
Crown | Crown Caps | Liquor, soft drink bottle caps |
Others | Electronic Components | Electronic items such as TV, tuner cases, etc. |
Electronic Jar | Electronic items such as electric cookers, etc. | |
Others | Other shell of batteries, toys, stationeries, etc. |
