Brand Name: | TINKO/OEM |
Model Number: | TK18650 2S1P |
Certification: | CE/ROHS/MSDS/UN38.3 |
Place of Origin: | China |
MOQ: | 1000PCS |
Price: | Negotiable |
Supply Ability: | 100pcs/day |
Packaging Details: | parer carton |
Voltage: | 7.4 |
Capacity: | 2600mah |
Battery Connection: | 2S1P |
Protection: | PCM/PCB |
Material: | Lithium ion |
Dimension: | 37*67*20mm |
Company Info. |
Dongguan KunTeng New Energy Technology Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |

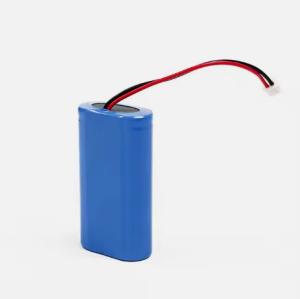

high capacity 18650 Lithium-ion Battery Pack 7.4V for Toys and Power Tools
Battery Description
TINKO 7.4V 18650 battrey pack 2600mah with PCM board is a common model which is widely used bu customer for their electric product such as fans, toys and lights. The lithium-ion batteries are widely used due to their advantageous features. They have a high energy-to-weight ratio, so they can store more energy in a smaller, lighter package compares to other. They also can work hundreds to thousands of charge and discharge cycles, making them durable for long-term use. Their low self-discharge allowed them to retain charge for extended periods when not in use. With these features the lithium battery used in a variety of applications, from consumer electronics (smartphones, laptops) to electric vehicles. Their voltage and capacity also can be designed through different usage.
Battery Parameters
NO. | Item | Specifications | |||||
1 | Typical Capacity | 2600mAh @ 0.2C Discharge | |||||
Minimum capacity | 2580mAh @ 0.2C Discharge | ||||||
2 | Nominal voltage | 7.40V | |||||
3 | Standard Charge | CC/CV,0.2C5A,8.40V | |||||
4 | Standard Discharge | CC,0.2C5A, 6.00V | |||||
5 | End-of-charge Voltage | 8.40V±0.1V | |||||
6 | End-of-charge Current | 0.02C5A (At CV mode) | |||||
7 | End-of-discharge Voltage | 6.00 V | |||||
8 | Charging Time | 8.0hours(standard charge) | |||||
9 | Quick Charge Current | 2600mA (1.0C5rate) | |||||
10 | Quick Discharge Current | 5200mA (2.0C5rate) | |||||
11 | Max Discharge Current | 7800mA (3.0C5rate) | |||||
12 | Initial Impedance | Max: 180mW | |||||
13 | Weight | Approx:96±2g | |||||
14 | Operating temperature | Charging: 0℃~45℃ Discharging:-20℃~60℃ | |||||
15 | Storage temperature | -5℃~35℃ | |||||
16 | Storage Humidity | ≤75% RH | |||||
17 | Appearance | Without scratch, distortion, contamination and leakage | |||||
18 | Standard environmental condition | Temperature: 25±2℃ Humidity : 45-75%RH Atmospheric Pressure: 86-106 KPA | |||||
19 | Temperature Dependence of Discharge Capacity @ 0.2C Discharge | ||||||
Charge temperature | Discharge temperature | ||||||
25℃ | -10℃ | 0℃ | 15℃ | 25℃ | 40℃ | ||
Relative Capacity | 50% | 80% | 90% | 100% | 100% |

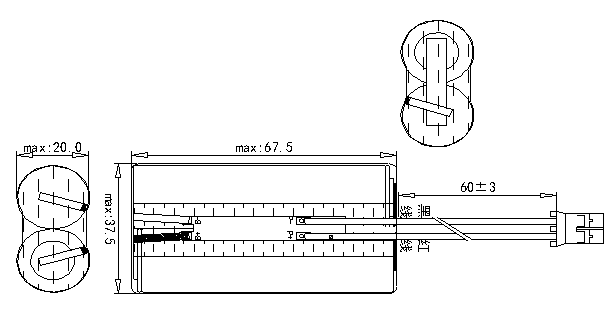

Product Drawing
Product Applications
![]() |
