IC200ALG321 GE Analog Output Module

Categories GE PLC
Brand Name: GE
Model Number: IC200ALG321
Place of Origin: US
MOQ: 1pc
Price: $500
Payment Terms: T/T
Supply Ability: 999pcs
Delivery Time: 5-7days
Packaging Details: New and original factory, individual box packing
Name: IC200ALG321 GE Analog Output Module
Product ID: IC200ALG321
Quality: 100% Brand New
Warranty: 1 year
Product Net Length: 250mm
Product Net width: 50mm
Product Net hight: 300mm
Product Net Weight: 3kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

IC200ALG321 GE Analog Output Module

IC200ALG321 GE Analog Output Module


IC200ALG321.pdf


Product Details:

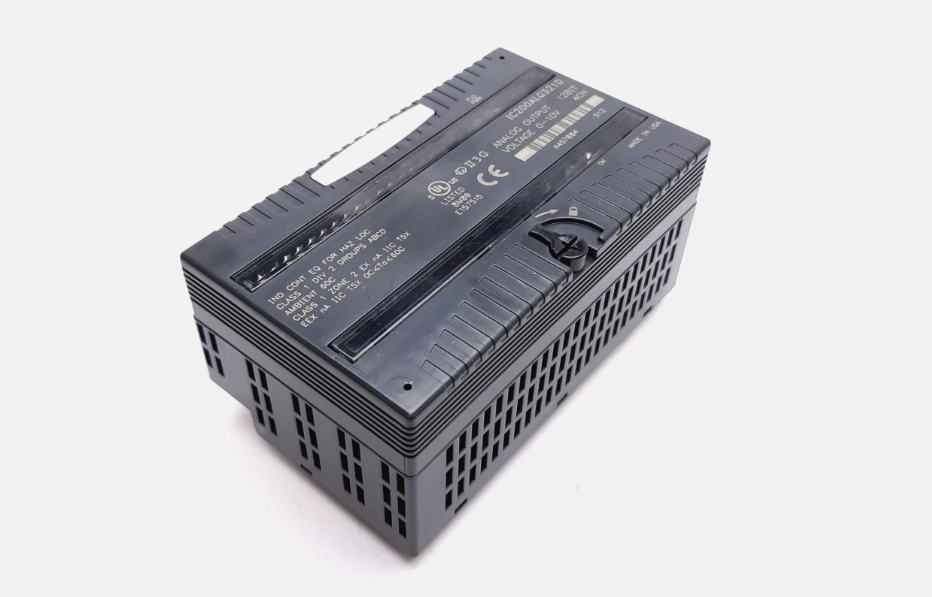

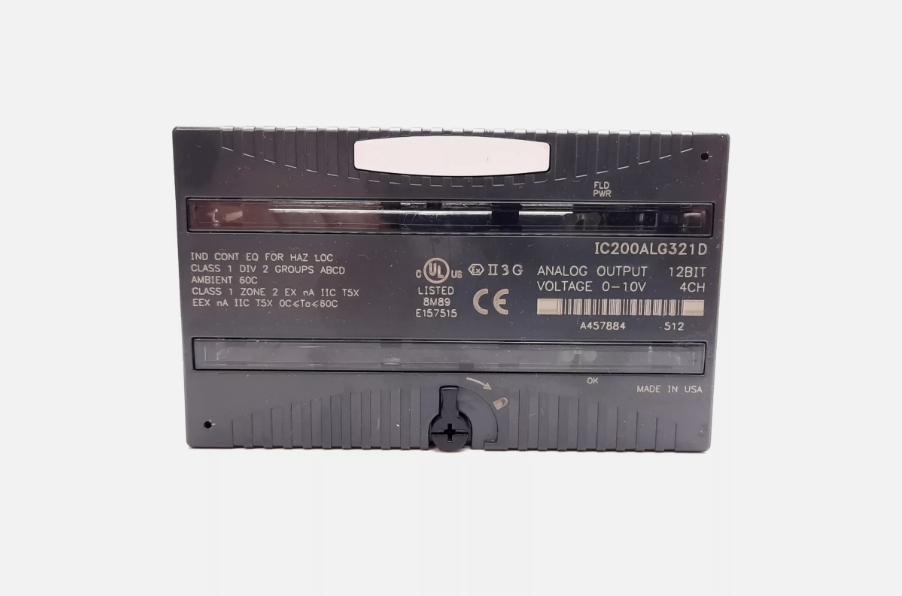

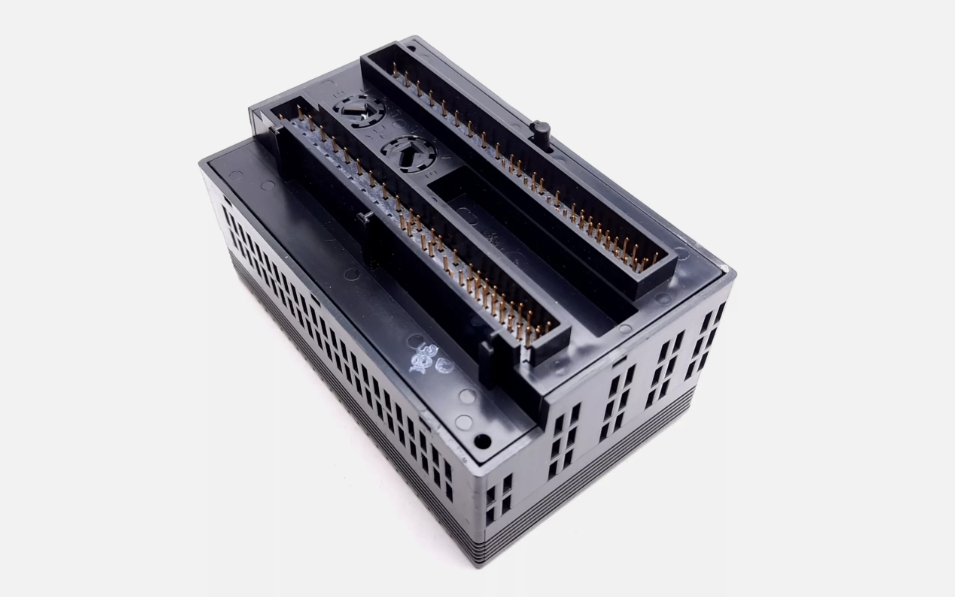

The IC200ALG321 is an analog output module consisting of four analog voltage outputs in the GE Fanuc Versamax Series. The IC200ALG321


has an output voltage range of 0 to 10 VDC with a resistive of 5000 Ohms minimum and a capacitive of 1.0µF maximum. The IC200ALG321


analog module has four channels that are single-ended and in one group. The external power supply of the IC200ALG321 module consists of a


suggested range including ripple of +18 to +30VDC and 160mA max current consumption at the suggested range.The IC200ALG321 module is


setup conveniently with a jumper for the outputs to either keep their last states or default to 0V if backplane power communications are interrupted


or the PLC has quit. It is necessary for external user power not to be interrupted. Outputs will continue to be in default or previous state until the


IC200ALG321 receives different output data from the backplane or field power is removed.
