Warranty: | 2 years |
Place of Origin: | Guangdong, China |
Brand Name: | Visench |
Model Number: | ECO 1825 |
Phase: | Single Phase |
Protection: | Short Circuit |
Weight: | 0.4KG |
Type: | High Capacity, PORTABLE, LED Display, DC UPS |
Application: | Networking |
Electric Energy: | 0.2 Wh |

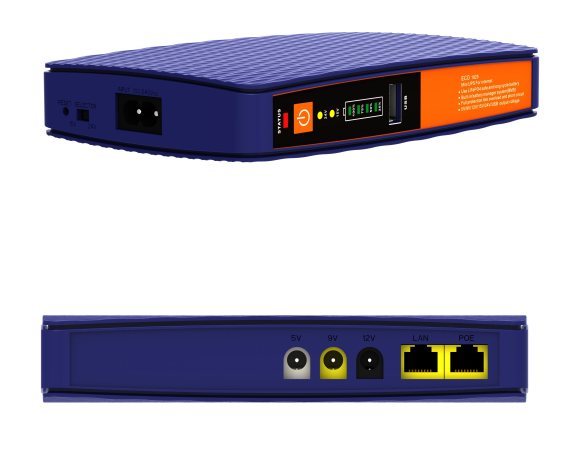

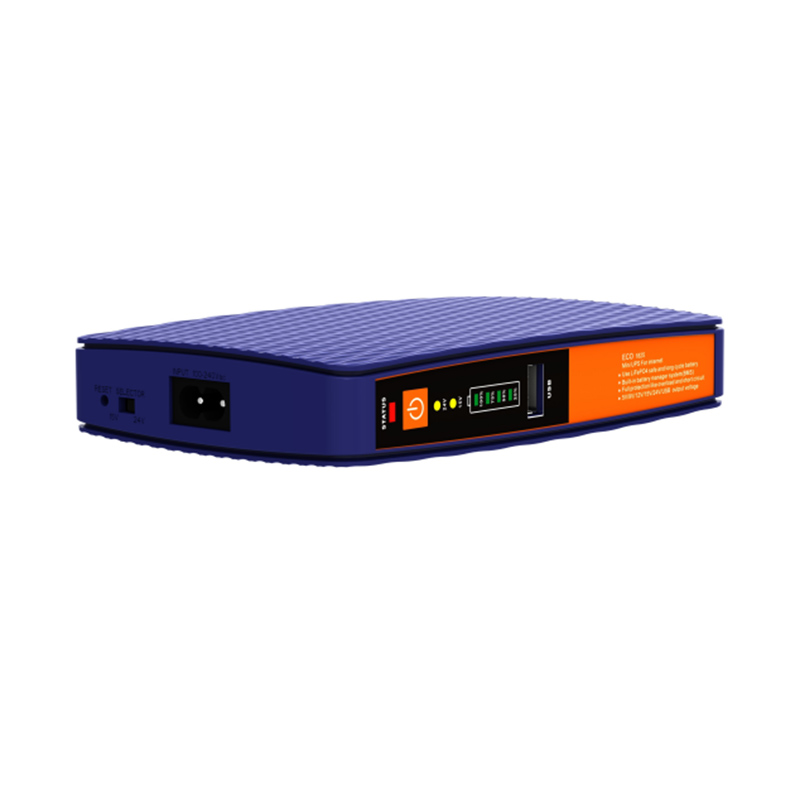

Product name: | 18W Mini DC UPS |
Rated power: | 18W |
Input voltage: | 100~240vac/ 50Hz~60Hz |
Output voltage: | USB+5V+9V+12V+15V/24V (POE) |
Battery type: | LiFePO4 battery |
Battery capacity: | 2000mAh*4(8000mAh) |
Size (mm): | 160*105*28mm |
Weight (kg): | 0.4kg |
Certification: | CE |
MOQ: | 2 units |
Price: | $10.80/units 2-199 units |
Company Info. |
Visench Technology Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |
Brand Name | Visench |
Model Number | ECO 1825 |
Product tpye | Mini DC UPS |
Rated power | 18W |
Input voltage | 100~240Vac/ 50Hz~60Hz |
Output voltage | 5VDC/9VDC/12VDC POE:15VDC/24VDC |
Battery type | LiFePO4 battery |
Battery capacity | 2000mAh*4(8000mAh) |
Size (mm) | 160*105*28mm |
Weight (kg) | 0.4KG |
Certificates | CE |
Model | ECO 1825 | |||||||
INPUT | ||||||||
Input voltage | 100~240vac/ 50Hz~60Hz | |||||||
OUTPUT | ||||||||
Output power(Max.) | 18W | |||||||
Output | USB interface | DC interface | POE interface | |||||
Output Voltage | 5VDC | 9VDC | 12VDC | 15VDC / 24VDC | ||||
Output polarity | standard | +4,5 pins-7,8 pins | ||||||
Power & current | 2.0A /10W | 1.0A/ 9W | 1.0A/ 12W | 0.5A/12W | ||||
Battery type | LifeP04 Lithium batteries | |||||||
Battery capacity | ( 2000mAH*4 )8000mAh | |||||||
CHARGE | ||||||||
Charging period | Typical:2-3 Hours | |||||||
Unit dimension(mm) | 160*105*28mm | |||||||
Net weight(Kg) | 0.4kg | |||||||
ENVIRONMENT | ||||||||
Environment of performance | Temperature 0℃~40℃, Humidity 20%~90% | |||||||
Noise level | less than 40dB |
![]() |
