| Categories | AGV Batteries |
|---|---|
| Brand Name: | OEM & ODM |
| Model Number: | OEM & ODM |
| Certification: | CE UN38.3 MSDS |
| Place of Origin: | China |
| MOQ: | 50 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000per |
| Delivery Time: | samples: 8days, bulk order: 30days |
| Packaging Details: | According to Stardard Export Packing. Carton box, wooden box, wooden pallet |
| Battery Size: | 36V 200AH |
| Weight: | 75KG |
| Application: | Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies |
| LiFe cycle: | >8,500cycles |
| Inverter compatible: | ALL 48 Hybrid Inverter |
| Company Info. |
| DongGuan BYingPower Technology Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

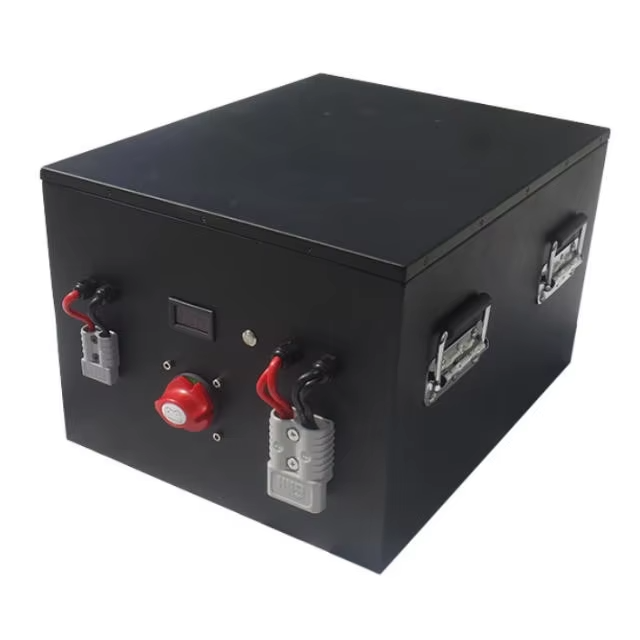

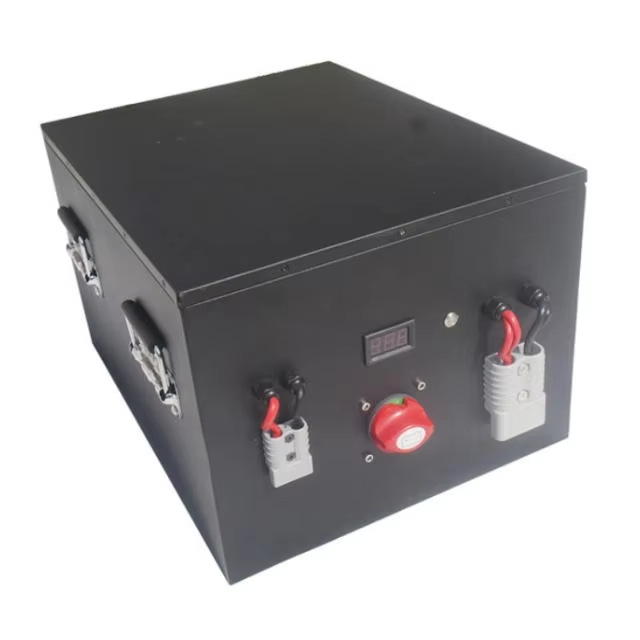

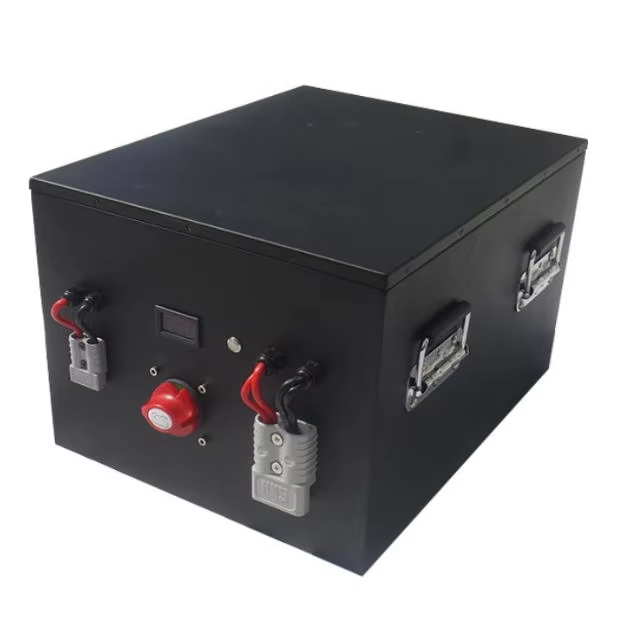

36V 200Ah LiFePO4 Lithium Battery for High-Power Electric Robotic Machines
Introducing our 36V 200Ah lithium LiFePO4 battery, designed for high-power applications in electric robotic machines.
Key Features:
High Capacity: With a 200Ah capacity, this battery provides robust power for demanding robotic applications.
LiFePO4 Technology: Offers superior safety, thermal stability, and an extended lifespan compared to conventional battery types.
High Power Output: Engineered to deliver consistent and reliable power for high-performance electric machines.
Low Maintenance: Designed for maintenance-free operation, ensuring hassle-free use over time.
Versatile Applications: Ideal for a range of electric robotic machines, enhancing their operational efficiency and reliability.
Lightweight Design: Optimized for easy integration without adding excessive weight to your robotic systems.
This 36V 200Ah LiFePO4 battery is the perfect solution for powering your electric robotic machines with efficiency and reliability.
Specification
| Norminal Power(KWh) | 7640Wh |
| Norninal Capacity(Ah) | 200Ah |
| Norninal Voltage(V) | 36V |
| Type | LiFePO4 Battery |
| Dimensions (mm) | Customized |
| Weight(Kg) | 76Kg |
| Cut off Discharging Voltage(V) | 30V |
| Cut off Cischarging Voltage(V) | 43.8V |
| Charging Current | 100A |
| Discharging Current (A) | 100A/200A(Peak) |
| Working Temperature(℃) | 0~55℃ |
| Shelf Temperature(℃) | -20~70℃ |
| Humidity | 0-95% RH(Non-condensing) |
| IP Grade (IP) | IP65 |
| Altitude | ≤3000m |
| Authentication Level | TuV/CE/UN38.3 |
| Design Life(year) | 30+ years (@25℃/77℉) |
| Cycle Life (cycle) | >8000Times |
Built-in BMS
| No. | Item | Test Item | Criterion |
| 1 | Voltage | Charging Voltage | DC:29.4V CC/CV |
| Balance voltage for single cell | 3.50±0.025V | ||
| 2 | Current | Balance voltage for single cell | 35±5mA |
| Current consumption | ≤50μA | ||
| Charging current | 150A | ||
| Rated continuous discharging current | 150A (Peak 300A) | ||
| 3 | Over charge Protection | Over charge detection voltage for single cell | 3.65V±0.025V |
| Over charge detection delay time | 0.7S—1.3S | ||
| Over charge release voltage for single cell | 3.550±0.05V | ||
| 4 | Over discharge Protection | Over discharge detection voltage for single cell | 2.50V±0.07V |
| Over discharge detection delay time | 1.6±0.5S | ||
| Over discharge release voltage for single cell | 3.00±0.75V | ||
| 5 | Over current Protection | Over current detection current | 500±50A |
| Over current detection delay time | 1.6±0.5S | ||
| Release condition | Cut load | ||
| 6 | Short Protection | Detection condition | Exterior short circuit |
| Detection delay time | 230uS—500uS | ||
| Release condition | Cut load | ||
| 7 | Resistance | Protection circuitry (MOSFET) | ≤60mΩ |
| 8 | Temperature | Operating Temperature Range | -40~+85℃ |
| Storage Temperature Range | -40~+85℃ |
The AGV batteries come in a sturdy cardboard box with foam inserts to ensure safe transport and storage. The box is labeled with the product name, specifications, and handling instructions for the convenience of the user.
Shipping:
Our AGV batteries are shipped via reliable courier services to ensure timely delivery and safe handling. The batteries are securely packed in a protective box and labeled with all necessary shipping information. We offer free shipping within the United States and international shipping at an additional cost.
Q1: What is the brand name of AGV Batteries?
A1: The brand name of AGV Batteries is OEM & ODM.
Q2: Where is the place of origin of AGV Batteries?
A2: AGV Batteries are manufactured in China.
Q3: What certifications do AGV Batteries have?
A3: AGV Batteries have CE, UN38.3, and MSDS certifications.
Q4: What is the minimum order quantity for AGV Batteries?
A4: The minimum order quantity for AGV Batteries is 50.
Q5: What are the payment terms for AGV Batteries?
A5: The payment terms for AGV Batteries are L/C and T/T.
Q6: What is the supply ability for AGV Batteries?
A6: The supply ability for AGV Batteries is 10000per.
Q7: What is the delivery time for AGV Batteries?
A7: The delivery time for samples is 8 days, and for bulk orders, it is 30 days.
Q8: What are the packaging details for AGV Batteries?
A8: According to standard export packing, AGV Batteries are packaged in carton boxes, wooden boxes, or wooden pallets.
|
