Brand Name: | AIRSUSTECH |
Model Number: | 3H7829 |
Certification: | ISO/TS16949:2009 |
Place of Origin: | Guangzhou,China |
MOQ: | 5 |
Price: | Negotiable |
Payment Terms: | T/T, Western Union, Paypal or Others |
Supply Ability: | 1000PCS/Week |
Delivery Time: | 5-8 Working Days |
Packaging Details: | Strong Carton Box or as Customers Requirement |
Product Name: | AIRSUSTECH |
Product NO.: | 3H7829 |
Firestone Number: | W01-358-7274 |
Minimum Height: | 4.6 Inches |
Maximum Height: | 18 Inches |
Bellows Type: | Triple Convoluted |
Ships To: | Worldwide |
Sample: | Available |
Company Info. |
Guangzhou Guomat Air Spring Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |
Suspension Air Springs are air shocks designed to provide superior quality, durability and load capacity for a range of automotive applications. Made with high-grade rubber and steel, they are engineered to provide superior performance in temperatures ranging from -40℃ to +70℃. With their superior load capacity and durability, these air shocks are ideal for vehicles of all sizes, shapes and types. They are designed to provide superior shock absorption and stability, resulting in a smoother and safer ride. In addition, they are easy to install and require minimal maintenance, making them a great choice for any vehicle.
3H7829 Specifications
Top Cover Plate Diameter: 17.75 in.
Screw Center Distance of Top Cover Plate: 16.50 in.
Bottom Cover Plate Diameter: 17.75 in.
Screw Center Distance of Bottom Cover Plate: 16.50 in.
Top Cover Plate Screw(Nut) Tooth: 24×3/8-24 bolts
Bottom Cover Plate Screw(Nut) Tooth: 24×3/8-24 bolts
Rubber Bellow Max. Diameter: 20.5 in.
Minimum Height: 4.5 in.
Maximum Height: 18 in.
The Same Rubber Bellow Style 324 With High Strength Bellows
Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers W01-358-7829, W01 358 7829, W013587829, WO1-358-7829, WO1 358 7829, WO13587829 |
Rubber bellows only W01-358-0324, W01 358 0324, W013580324, WO1-358-0324, WO1 358 03241, WO1350324 |
Cross References
W01-358-7274, W01 358 7274, W013587274, WO1-358-7274, WO1 358 7274, WO13587274 |
W01-358-7823, W01 358 7823, W013587823, WO1-358-7823, WO1 358 7823, WO13587823 |
W01-358-7921, W01 358 7921, W013587921, WO1-358-7921, WO1 358 7921, WO1358792 |
Air Spring Introduction
An air spring is a carefully designed rubber/fabric bellows which
contains a column of compressed air. The rubber bellows itself does
not provide force or support load. This is done by the column of
air.
AIRSUSTECH air springs are highly engineered elastomeric bellows
with specially designed metal end closures. Our standard
two ply air spring bellows is actually made up of four layers:
a. An inner liner of calendered rubber.
b. One ply of fabric reinforced rubber.
c. A second ply of fabric-reinforced rubber (with the cords at
a specific bias angle to the first ply).
d. An outer cover of calendered rubber.
Many of our air springs are also available in high strength
construction for higher pressures. In this case, there are four
plies of fabric-reinforced rubber, with an inner liner and outer
cover.

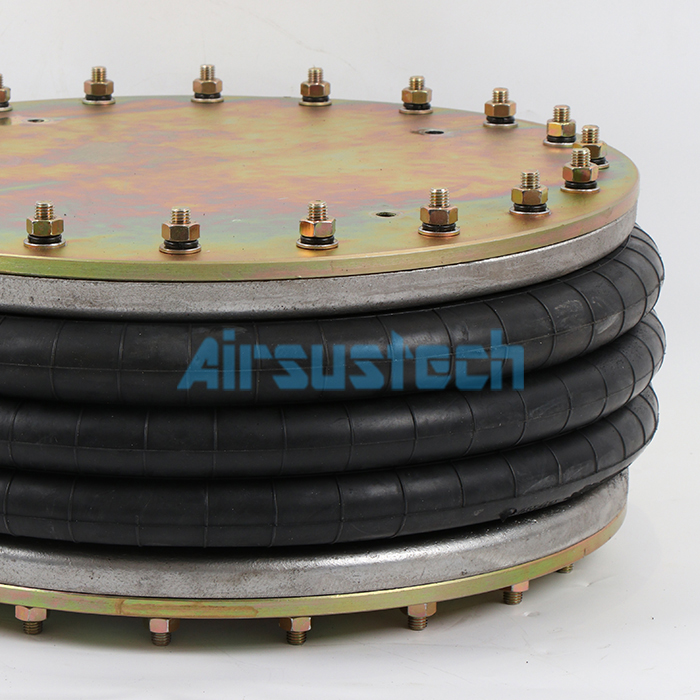

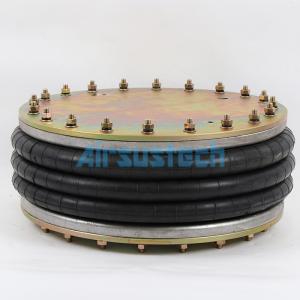

The Related Pictures of 3H7892
![]() |
