High Performance Textile Flame Retardant Ultrasonic Coating Technology

Categories Ultrasonic Spray Coating Machine
Brand Name: FUNSONIC
Model Number: FS2000-8
Certification: CE
Place of Origin: CHINA
MOQ: 1 UNIT
Payment Terms: T/T, Western Union
Supply Ability: 1000 unit per month
Packaging Details: Packed by Wooden Case
Production Name: Intelligent Ultrasonic Precision Spraying Machine
Frequency: 20-200Khz (Normally use 60/100/110/120Khz)
Max Power: 1-15w
Continuous Spraying Volume Max: 0.01-50ml/min
Effective Spraying Width: 2-100mm
Spray Uniformity: <5%
Solution Viscosity: ≤30cps
Input Voltage: 220V±10%/50-60Hz
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

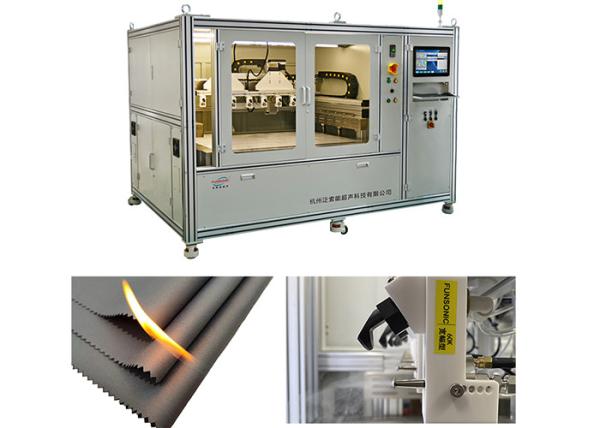

High Performance Textile Flame Retardant Ultrasonic Coating Technology

High Performance Textile Flame Retardant Ultrasonic Coating Technology


Description:


High performance textile flame retardant ultrasonic coating technology is mainly applied in the field of textiles and can be used for functional coating processes of coatings and high-performance textiles. High performance textile flame retardant ultrasonic coating technology is suitable for various fabrics, such as cotton, linen, synthetic fibers and other fabrics. By using ultrasonic spraying technology, functional coatings such as waterproof, breathable, antibacterial, and flame-retardant are formed on the surface of fabrics.
Compared with traditional immersion or immersion rolling processes, high-performance textile flame retardant ultrasonic coating technology precisely controls the deposition of coatings, forms uniform nano films, and significantly reduces the use of water, chemicals, and energy, with high environmental performance.


Parameters:

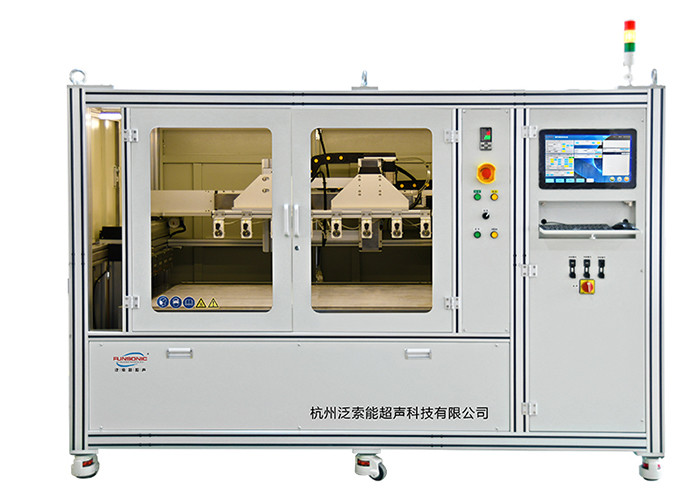

Product TypeIntelligent Ultrasonic Precision Coating Machine Type FS2000-8
Spray Nozzle Operating Frequency20-200KHz (Normally use 60100110120K)
Nozzle Power1-15W
Continuous Spraying Volume Max0.01-50ml/min
Effective Spraying Width2-100mm
Spray Uniformity≥95%
Solution Conversion Rate≥95%
Dry Film Thickness20nm-100μm
Solution Viscosity≤30cps
Temperature Range1-60℃
Atomized Particles (Median Value)10-45μm (distilled water), determined by the frequency of the nozzle
Diversion Pressure Max≤0.15MPA
Input Voltage220V±10%/50-60Hz

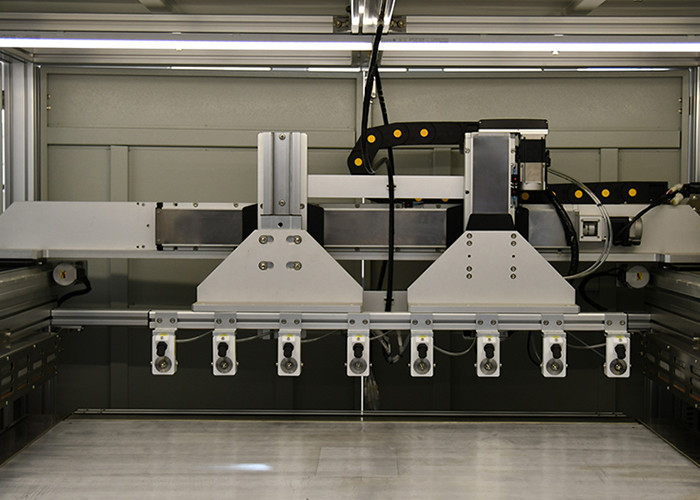

Exercise ModeXYZ three-axis, independently programmable
Control ModeFUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen
Control ContentUltrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems

Application :


1. Firefighting suit: a clothing worn by professional firefighters to enhance safety.
2. Industrial workwear: Suitable for workers in high-risk environments, providing additional protection.
3. Household items: such as curtains and sofa fabrics, to increase fire safety.
