Tipping Load 1500kg WS50 Xinchai 50hp Engine Weight 3003kg Wheeled Skid Steer

Categories Skid Steer Loader
Brand Name: Harvest
Model Number: WS50
Certification: CE/ISO9001
Place of Origin: China
MOQ: 1 unit
Price: Negotiable
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Delivery Time: 15 days
Packaging Details: nude package
Attachment: sweeper
Engine Brand: Xinchai
Power: 36.8kW
Machine Weight: 3003kg
Dimension: 2700*1469*2007mm
Hydraulic Pump: BOSCH REXROTH
Warranty: 12 months
High Flow: 110 L/min
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Tipping Load 1500kg WS50 Xinchai 50hp Engine Weight 3003kg Wheeled Skid Steer

Multi-Function 4x4 Skid Steer Loader WS50 with Sweeper Xinchai 50hp Diesel Engine

Multi-Function, High Cost Performance

New and high-performance Skid Steer Loader has been formally put into production, is the domestic top-notch loader, no matter from the appearance of products, heightlifting, weightlifting to comfort. Owing to its easy operation, convenient maintenance and wide applications, the loader has been stage for the use of engineering work especially municipal engineering.

Main Features

1. Safe and comfortable operating environment
2. Daily maintenance and maintenance
3. World-class core accessories
4. Maximize machine productivity with the full range of tools.

Main configuration

Chinese skid steer loader With the full range of working tools, a variety of skid steer loader accessories are available to maximize the skid steer loader's productivity. This maximizes the versatility and flexibility of our skid steer loader.

Standard configuration: bucket, air conditioning, vacuum tires.

Optional Configuration:

solid tires, Auger, backhoe, shovels (bull horns), buckets (universal, high capacity, dust, practicality, lightweight materials, versatile, industrial grabs, practical grabs), cleaning tools (corners, Extraction, practicality), lawn Mower, cold milling machine, fork (tray, industrial grab, practical grab, practicality), hydraulic hammer, garden tillage machine, garden hoe, material processing arm, power box ripper , hydraulic shears, snow remover, stump grinder, trencher, etc Can be customized according to customer requirements.

Specification

ItemWS50
Engine
ModelXinchai
Rated power (hp)36.8
Rotation speed (rpm)2650
Coolingwater
Steering controls2levers
Performance
Rate Operating capacity (kg)800
Tipping load(kg)1500
Operating weight (kg)2835
Bucket capacity (m3)0.4
Speed (km/h)11.6
Tire10-16.5
Pump Flow (l/min)65
pump pressure(bar/mpa)180
High Flow(l/min)110
Oil Tank Capacity(l)88
Fuel tank Capacity(l)70
Dimensions
Overall operating height4058
Bucket hinge pin3077
Height to cab top2007
bottom of level bucket, loader arm full raised2908
Overall length w/o attachment2641
Overall length with bucket3413
Dump angle at max height43
Dump height loader arm full raised2303
Bucket on ground30°
Bucket angle at max.height99°
Reached loader arm full raised645
Wheelbase999
Ground clearance185
Clearance circle front less bucket1230
Clearance circle front W/72 dirct bucket2075
Clear circle1627
Rear Length1042
Trend width1469
Overal width(wheel edge)1740
Width of bucket edge1780

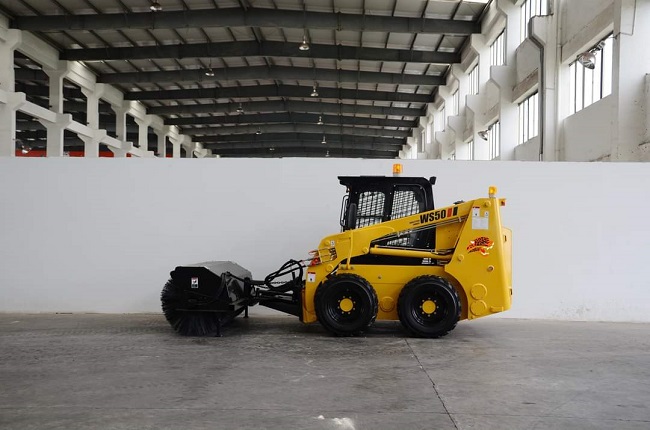

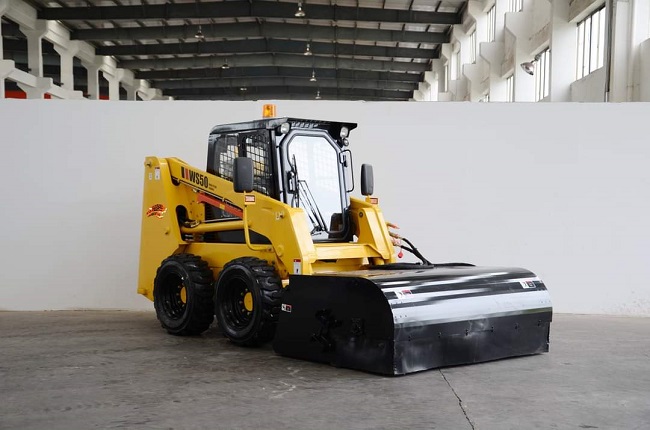

Pictures

Cheap Tipping Load 1500kg WS50 Xinchai 50hp Engine Weight 3003kg Wheeled Skid Steer for sale
