Automatic 3 Roller Cnc Plate Rolling Machine Sheet / W11 6mm Metal Roller Bending Machine

Categories W11F 3 Roller Mechanical Asymmetrical Series
Brand Name: Hoston
Model Number: W11F-6×1500
MOQ: 1
Max. bending thickness: 6mm
Max. bending width: 1500mm
Yield limit: 245mm
Top roller diameter: 150mm
Botton roller diameter: 150mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Automatic 3 Roller Cnc Plate Rolling Machine Sheet / W11 6mm Metal Roller Bending Machine

Automatic 3 Roller Cnc Plate Rolling Machine Sheet / W11 6mm Metal Roller Bending Machine

Benefits:

  • Economical: Cost-effective solution for various bending tasks.
  • Versatile: Handles a wide range of materials and shapes.
  • Efficient: Easy to operate and maintain with reliable performance.
  • Durable: Built to withstand rigorous industrial use.
W11F 3-Roller Mechanical Asymmetrical Plate Rolling Machine

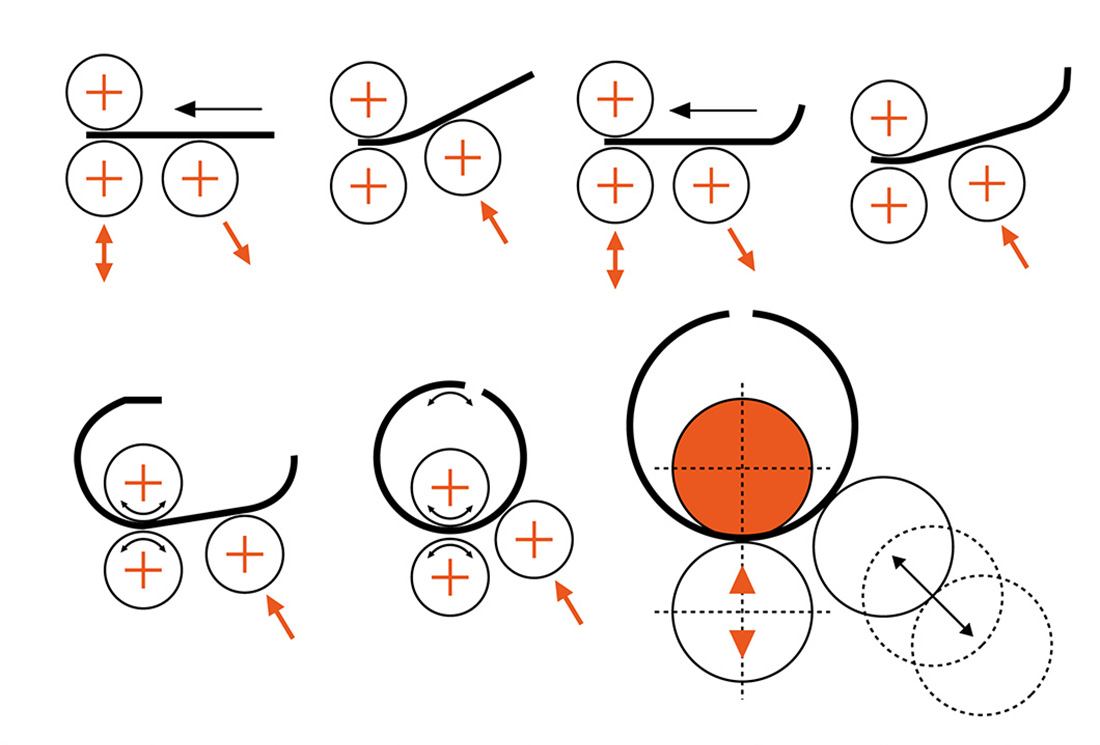

Working Principle
Structure Style
The structure of this machine is 3 roller asymmetrical. Top roller and botton roller are all main drive roller. The botton roller lifting up and down to clamp the tight. Through the meshing between top roller gear and botton roller gear to drive the top roller. The side roller move titling to pre-bend the plate and circle. It's compact and easy to operate and maintain.

ModelMax.Bending thickness(mm)Pre.Bending thickness(mm)Max.Bending width(mm)Yield limit(mm)Top roller diameter(mm)Bottom roller diameter(mm)Side roller diameter(mm)Main power
W11F-2*10002210002451101101102.2
W11F-2*15002215002451201201202.2
W11F-2*20002220002451301301302.2
W11F-3*10003310002451201201202.2
W11F-3*15003315002451301301302.2
W11F-4*10004410002451301301302.2
W11F-4*15004415002451351351353
W11F-4*20004420002451501501504
W11F-6*10006610002451401401403
W11F-6*15006615002451501501504
W11F-6*20006620002451701701705.5
