N Male To N Male RF Coaxial Adapter With Brass Material

Categories N Connector
Brand Name: SIPU
Place of Origin: China
MOQ: 50
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Model Number: N-50JJ-2
Certification: ISO9001
Price: Discuss
Packaging Details: Carton
Supply Ability: 100000pcs
Delivery Time: 5-8work days
Characteristic impedance: 50Ω
Durability: 500 times
Product name: N-male to N-male RF coaxial adapter
Gender: Male
Type: Straight
Material: Brass
Plating: Nickel
High light: N-male to N-male RF coaxial adapter
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

N Male To N Male RF Coaxial Adapter With Brass Material

N Male to N Male RF Coaxial Adapter

Product introduction


RF coaxial adapters of various specifications are the guarantee of correct transfer of connectors between different series and within the same series, and usually play the role of a bridge connection.
Scope of application: It is used for the conversion and connection of the system, and is generally used in test cables and test instruments.
Product features: Both ends are mated with N series female connectors, which have the characteristics of strong environmental resistance, high reliability and excellent performance.

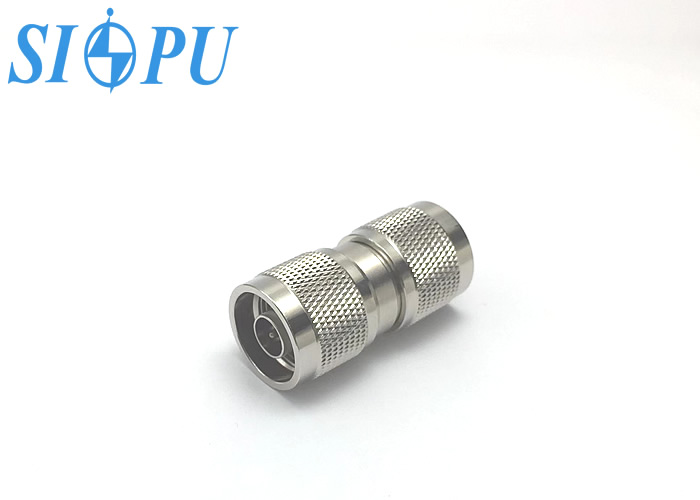

Product appearance

Important technical parametersr



Electrical property


Temperature range-65~+125℃

Characteristic impedance


50ΩFrequency rangeDC-11GHz

Dielectric withstanding voltage


1500VVSWR≤1.3

Insulation resistance


≥5000MΩInsertion loss≤0.06√F(GHz)dB
Contact resistanceCenter conductor≤1.5mΩMechanical property
Outer conductor≤0.2mΩDurability500 times

Materials and surface treatmen



Center conductor


Brass,silver platingInsulating mediumPTFE

Outer conductor


Brass,nickel platingSealing ringSilicon rubber

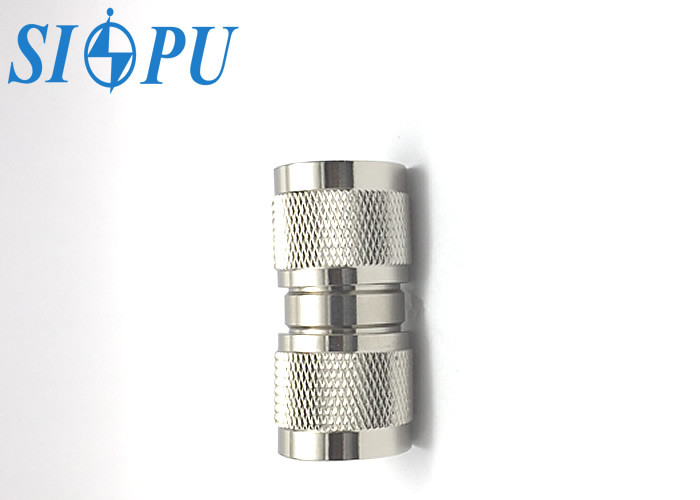

Picture display
