| Categories | POGO Pin Connector |
|---|---|
| Place of Origin: | China |
| Brand Name: | HONSHI |
| Model Number: | A20082XXSHX01 |
| MOQ: | 1000 pieces |
| Price: | $0.039 - $0.19/pieces |
| Certification: | ROHS/SGS/UL |
| Payment Terms: | T/T,Paypal |
| Supply Ability: | 800000kpcs |
| Delivery Time: | 5-8 Day |
| Packaging Details: | Tray/Tube/Reel |
| Type: | F |
| Application: | PCB |
| Gender: | Male |
| Product name: | POGO PIN |
| Contact Material: | Brass |
| Plating: | Gold Flash(can customized) |
| Rated Voltage: | DC12V,2A |
| Contacts Resistance: | 50mohm Max |
| Spring force: | 120g±20%(customized) |
| Cycle life: | 10,000 times |
| Salt fog: | 72H |
| Sample: | Free Samples(within 10pcs) |
| Packing: | PE.Bag/Tape&Reel |
| Company Info. |
| Dongguan Honshi Electronics Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Male Brass Pogo Pin Dual Header Type Spring Loaded Pins With Customized Contact Material
| Specific material electrical parameters | |||
| Electrical Performance: | Mechanical Performance: | ||
| Rated Current: | 1.5/2.0/3.0AMP | Spring force: | 100g±20g or Customized |
| Contact Resistance: | 50mΩ Max | Work Stroke: | Customized |
| Rated Voltage: | DC 12V | Maximum Working stroke: | Customized |
| Operation Temperature: | -40°c to +105°c | Mechanical Life | 100,000 cycles |
| Resistance To Solder Heat: | 260℃±5℃ 20s±2s | ||
| All materials comply with"ROHS" environmental protection standards | |||
| Customized POGO PIN Warmly welcome W/LOW MOQ. | |||
POGO
PIN-Product selection Catalogs.pdfPogo Pin Connector
Pogo Pin is a precision connector used in mobile phones and other electronic products.
It is widely used in various electronic products and plays a role in signal transmission connection.

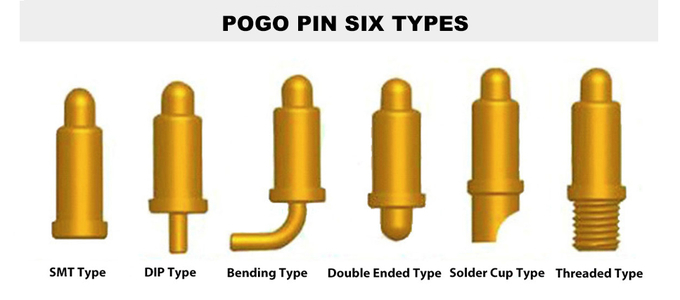

Its shape structure is divided into: flat bottom type, plug plate type, bending type, double needle shaft, thread type, welding wire type,
side hole type, etc.

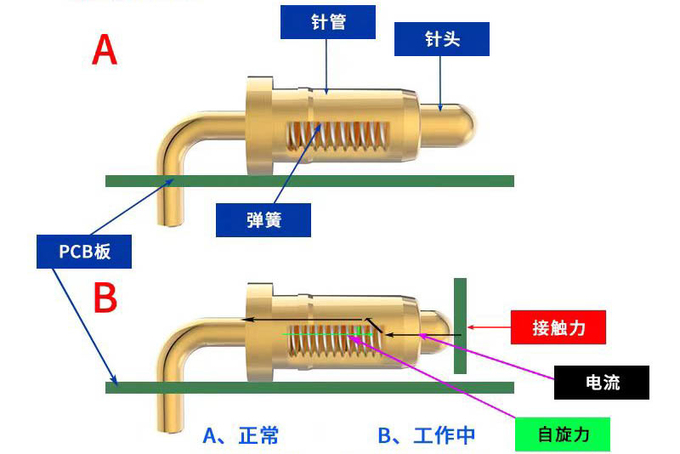

The internal structure is divided into: back drilling type, slicing slope, slicing slope with round ball, through hole type, tail plug type, double head type, etc.
Plating selection: regular gold plating, nickel plating, etc.
Service idea:
1. Committed to providing customers with customized, small batch, multi variety, one-stop services.
2. Quick response and effective communication, refined service timely delivery.
3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.
4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.
|
