Customized Flammability Testing Equipment for Construction Industry

1. Product Name and Purpose

2. Product Features

• Sturdy and Heat-Resistant Construction

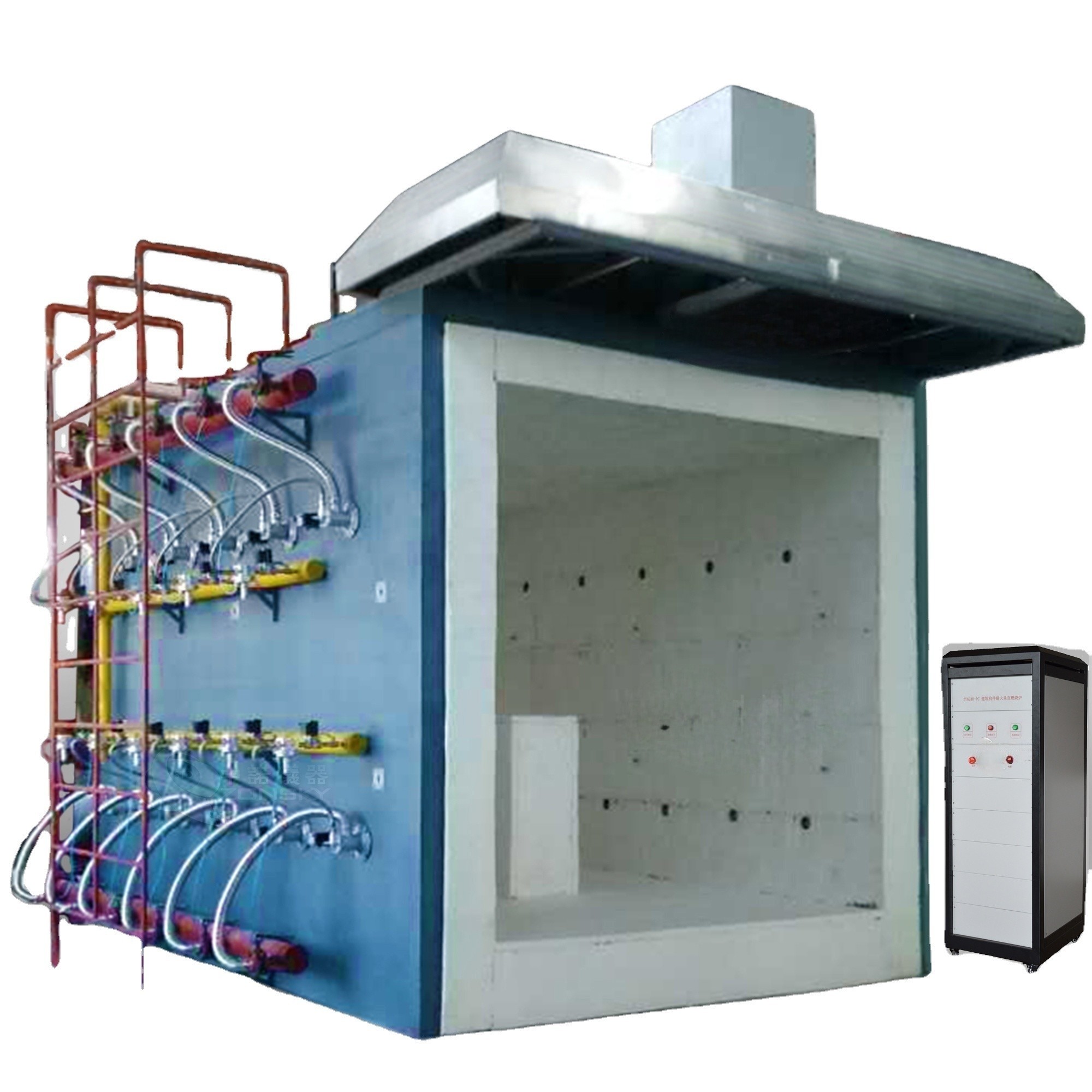

  • The testing devices are built with a heavy-duty steel framework that can withstand the extreme conditions of fire testing. The interior chambers are lined with refractory materials capable of withstanding temperatures up to 1600°C. The access doors and viewing ports are made of heat-resistant glass and feature reliable sealing mechanisms to maintain a controlled testing environment and allow for safe observation. The overall structure is engineered to minimize heat loss and ensure the accuracy of test results.
• Precision Temperature and Flame Control
  • Temperature Control: The devices offer accurate temperature control, ranging from ambient to 1300°C, with an accuracy of ±2°C. They utilize advanced heating elements, such as silicon carbide heaters, and a PID (Proportional-Integral-Derivative) control system. Multiple thermocouples are strategically placed to ensure uniform temperature distribution and real-time monitoring. The control panel allows for the programming of complex temperature profiles, including slow ramps, rapid spikes, and cyclic temperature changes, to mimic various real-world fire scenarios.
  • Flame Generation and Control: The flame systems are highly adjustable. They can produce flames with different intensities, from a gentle ignition flame to a powerful, turbulent flame. The fuel supply, which can include propane, methane, or other combustible gases, is precisely metered using high-precision flow regulators. The air-fuel ratio can be adjusted within a wide range, typically from 1:1 to 18:1, allowing for the creation of flames with diverse combustion characteristics. This flexibility is essential for testing the response of building materials to different types of flames, such as the smoldering flames of a slow-burning fire or the intense flames of a fully developed blaze.
• Advanced Instrumentation and Data Acquisition
  • The testing devices are equipped with a comprehensive suite of sensors and measurement tools. In addition to temperature and flame sensors, they incorporate optical sensors for monitoring flame height, luminosity, and color. Smoke density sensors, based on light scattering or absorption principles, accurately measure the amount and density of smoke generated. Gas sensors are incorporated to detect and analyze the composition of gases emitted during combustion, such as carbon monoxide, carbon dioxide, and volatile organic compounds. These sensors are connected to a high-speed data acquisition system that records and stores all relevant data. The data acquisition system offers a sampling rate of up to 10,000 samples per second, ensuring that even the most transient and minute changes in fire behavior are captured. The collected data can be analyzed in real-time or retrieved later for in-depth studies using specialized software, which provides detailed reports and graphical representations of the test results.
• Versatile Testing Modes and Configurations
  • The devices offer a variety of testing modes suitable for different construction materials and assemblies. They can perform horizontal and vertical flame spread tests on materials like wallboards, flooring, and roofing materials, providing valuable insights into how fire propagates across different surfaces. Cone calorimeter tests can be carried out to measure the heat release rate and other combustion parameters of samples under a controlled radiant heat flux, which is crucial for understanding the fire behavior of insulation and other combustible building components. Additionally, they can conduct fire resistance tests on structural elements like columns, beams, and walls, evaluating their ability to maintain load-bearing capacity and integrity during a fire. The devices can also be configured to test the effectiveness of fireproof coatings and sealants by measuring the improvement in fire behavior of the underlying materials. They can be adjusted to accommodate different sample sizes and shapes, from small specimens to full-scale building components.
• Compliance with Building Fire Safety Standards
  • The Customized Fire Behavior Testing Devices are designed to comply with a multitude of international and national building fire safety standards. They adhere to ASTM (American Society for Testing and Materials) standards, such as ASTM E84 for surface burning characteristics, ASTM E1354 for heat and visible smoke release rates, and ASTM E662 for smoke density. They also meet ISO (International Organization for Standardization) standards, including ISO 5660 for reaction-to-fire tests and ISO 1716 for calorific value determination. This compliance ensures that the test results are widely recognized and accepted by building regulatory bodies and industry peers, facilitating product certification and use in construction projects.

3. Specific Parameters

• Chamber Size and Capacity
  • The testing devices are available in different chamber sizes to suit various testing requirements. Smaller chambers may have interior dimensions of 0.4 meters x 0.4 meters x 0.4 meters, suitable for testing small samples like pieces of fireproof coatings or individual insulation materials. Medium-sized chambers can measure 0.8 meters x 0.8 meters x 0.8 meters, providing space for testing larger building materials or a batch of similar components. Larger chambers, with dimensions exceeding 1.5 meters x 1.5 meters x 1.5 meters, are ideal for full-scale testing of structural elements or assemblies. The interior volume and shape are carefully designed to ensure proper air circulation and uniform exposure of the sample to the fire and environmental conditions.
• Temperature Range and Accuracy
  • As mentioned, the temperature can be controlled from ambient to 1300°C, with an accuracy of ±2°C. The temperature ramp rate can be adjusted from 1°C per minute to 100°C per minute, allowing for the simulation of both slow and rapid temperature changes. For example, a slow ramp rate can be used to study the thermal degradation of a building material over time, while a rapid ramp rate can mimic the sudden heat increase during a fire outbreak.
• Flame Intensity and Control Parameters
  • The flame intensity can be adjusted over a wide range, with a maximum heat output equivalent to several megawatts per square meter. The fuel flow rate can be varied from a few milliliters per minute to several liters per minute, and the air-fuel ratio can be precisely controlled within a range of 1:1 to 18:1. These parameters enable the creation of flames with different characteristics, from a small, stable flame for precision testing to a large, turbulent flame for more severe fire simulations.
• Data Acquisition Rate and Resolution
  • The data acquisition system samples sensor data at a rate of 10,000 samples per second. The temperature sensor has a resolution of 0.1°C, the smoke density sensor can detect changes as small as 0.01% opacity, and the gas sensors have a sensitivity in the parts per million (ppm) range for most common gases. This high-resolution and high-speed data capture ensure that the devices provide detailed and accurate information about the fire behavior of the tested building materials and assemblies.
• Compliance with Key Building Fire Testing Standards
  • The devices comply with ASTM E84, ASTM E1354, ASTM E662, ISO 5660, and ISO 1716, among other relevant standards. They can also be customized to meet specific requirements of other building industry standards or regulatory codes, ensuring their adaptability to different construction applications and local building regulations.

4. Product Functions

• Accurate Evaluation of Fire Behavior
  • The primary function of these testing devices is to provide a highly accurate and realistic simulation of fire conditions for building materials and assemblies. By precisely controlling temperature, flame characteristics, and other environmental factors, they allow for a comprehensive assessment of how these elements will behave in an actual building fire. For example, they can determine if a particular insulation material will contribute to the spread of fire, if a steel structure will maintain its strength under high temperatures, or if a fireproof coating will effectively reduce the flammability of a substrate. This information is invaluable for architects and engineers to make informed decisions and select the most suitable materials and designs for constructing safer buildings.
• Enhanced Building Design and Material Selection
  • Through detailed fire behavior testing, construction professionals can make well-informed decisions about material selection and building design. If a material shows a high flame spread rate or excessive smoke and toxic gas production, alternative materials can be considered. For instance, if a wooden panel has a poor fire behavior, a fire-retardant-treated version or a non-combustible substitute can be chosen. This leads to the development of more fire-resistant building designs, reducing the risk of fire damage and ensuring the safety of occupants.
• Facilitation of Regulatory Compliance and Building Certification
  • Building regulatory bodies rely on accurate and standardized fire behavior test results to enforce building fire safety regulations. The Customized Fire Behavior Testing Devices enable construction material manufacturers and builders to conduct tests in accordance with recognized industry standards, providing the necessary data for regulatory compliance and building certification. This helps in streamlining the approval process, ensuring that buildings are constructed with fire-safe materials and meet the required safety standards.

5. Production and Quality Assurance

• Stringent Manufacturing Process
  • The fire behavior testing devices for the construction industry are manufactured under strict quality control procedures. Each component, from the heating elements and sensors to the control panel and chamber lining, is carefully sourced and inspected for quality and performance. The assembly process is carried out by trained technicians in a clean and controlled environment. The devices undergo a series of calibration and validation tests during the manufacturing process to ensure that they meet the required accuracy and performance standards.
  • The calibration of temperature, flame, and other sensors is a critical part of the manufacturing process. It is performed using traceable reference standards that are calibrated to the highest levels of accuracy, guaranteeing the reproducibility of the test results. Rigorous quality audits and inspections are conducted at various stages of production to maintain the highest level of product quality and compliance with building fire behavior testing standards.
• Quality Certification and Validation
  Our devices have obtained relevant quality certifications and has been validated by independent building fire testing laboratories. It has been proven to provide accurate and reliable test results, conforming to the relevant industry standards. We also continuously update and improve our product based on the latest technological advancements and customer feedback from the construction and fire safety industry to ensure its long-term performance and compliance.

6. Application Areas and Success Stories

• Testing of Building Insulation Materials
  • A leading insulation material manufacturer used the Customized Fire Behavior Testing Devices to test a new type of foam insulation. The tests revealed that the material had a relatively high heat release rate and significant smoke production. By reformulating the material and adding fire retardants, they were able to reduce the heat release rate by 50% and minimize smoke production, making it a more suitable option for building insulation and meeting the required fire safety standards.
• Evaluation of Fireproof Coatings for Steel Structures
  • A construction company tested different fireproof coatings on steel beams using the devices. The results showed that one particular coating was able to increase the fire resistance of the steel beams by an additional 30 minutes compared to a standard coating. This led to the company specifying this coating for a high-rise building project, enhancing the overall fire safety of the structure.
• Assessment of Structural Elements like Columns and Walls
  • A research institution used the devices to study the fire behavior of new composite columns. The detailed data obtained from the tests enabled them to optimize the design and composition of the columns, ensuring that they could maintain their load-bearing capacity for a longer period during a fire. This research led to the development of more fire-resistant structural elements that could be used in modern building construction.

7. Service and Support

• Pre-Sales Technical Consultation
  Our team of building fire safety experts provides in-depth technical consultations to help customers understand the capabilities and suitability of the Customized Fire Behavior Testing Devices for their specific construction testing needs. We offer demonstrations and training, tailored to the construction industry, to familiarize customers with the operation and functionality of the devices before purchase. We also assist in selecting the appropriate test methods and accessories based on the materials or structures to be tested.
• After-Sales Service and Maintenance
  We offer comprehensive after-sales service, including on-site installation and commissioning. Our technicians are available for regular maintenance, calibration, and emergency repairs. We provide spare parts and upgrades to keep the test devices operating at peak performance. We also offer service contracts that include preventive maintenance and priority technical support, ensuring the long-term reliability and availability of the devices for fire behavior testing in the construction industry.
• Training and Technical Support
  We conduct training programs for new users to ensure they can effectively operate the Customized Fire Behavior Testing Devices and interpret the test results. Our technical support team is available 24/7 to answer questions, provide troubleshooting assistance, and offer guidance on test method optimization and compliance with building fire behavior testing standards. We also provide software updates and support for the data acquisition and analysis systems, enabling customers to take full advantage of the latest features and technologies in fire behavior testing for the construction sector.
