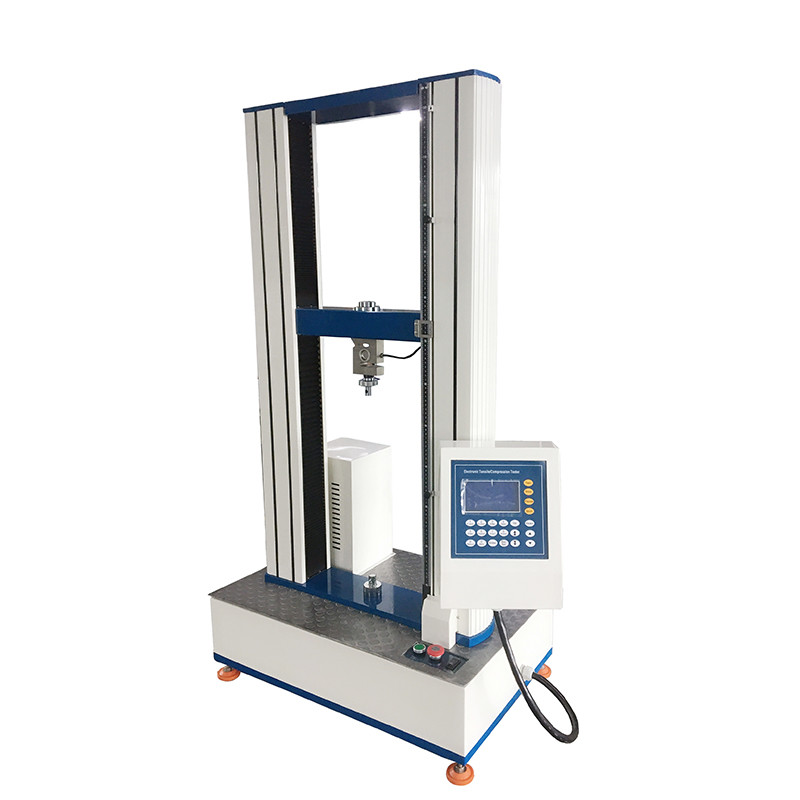

Universal Testing Equipment Automatic Tensile And Compression Testing Machines

Categories Universal Testing Machines
Brand Name: KINSGEO
Model Number: KJ-1066C
Certification: CE/ISO
Place of Origin: China
MOQ: 1 set
Price: USD/6800/SET
Payment Terms: T/T
Supply Ability: 30Sets/month
Delivery Time: 15 work days
Power: AC220V 50Hz
Usage: Universal Testing Machine,Tensile Testing Machine,Rubber Tensile Tester
Weight: 216
Product name: double column
Power supply: 220V 50Hz
Application: universal tester
Standard: ASTM E8/A370/ISO 75001
Motor: Panasonic Servo Motor
Warranty: 1 Year
Accuracy: +/-0.5%
Name: Universal Leather Tensile Strength Test Machine,electronic universal testing machine
Capacity: 20
Stroke: 650mm(excluding clamp)
Measuring accuracy: the value ±1%/ the value±0.5%
Operation: Computer windows operation
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Universal Testing Equipment Automatic Tensile And Compression Testing Machines

Project Introduction:

Domestic microcomputer control electronic universal test machine started in the early 1990s. In order to improve the technical level of enterprise products, the company has introduced foreign advanced technology, which jumped the company's product technology level to a new level.


Use area:

This product is widely used in the mechanical performance test of pulling, pressure and bending shear of metal and non-mechanical materials. With a wide variety of accessories, it can also be used for the mechanical performance tests of profiles and components. In the test field of rope, belt, silk, rubber, plastic and other materials, it also has a very wide application prospect. It is applicable to quality supervision, teaching and research, aerospace, steel metallurgy, automobile, construction materials and other test fields.


Standard:

It meets the requirements of the national standard GB/T228.1-2010 < Room Temperature Extension Test Method of Metal Materials and GB/T7314-2005 < Metal Compression Test Method, and meets the data processing of GB, ISO, ASTM, DIN and other standards. Can meet the user's requirements and the standards provided.


Design Standards

GB16491-2008,HGT 3844-2008 QBT 11130-1991,GB 13022-1991,HGT 3849-2008,GB 6349-1986 GB/T 1040.2-2006 2411,ISO 4587,ISO/TS 11405,ASTM E4,BS 1610,DIN 51221,ISO 7500,EN 10002,ISO 527,ASTM D628,ASTM D638,ASTM D412.


ModelKJ-1066B
Range of speed50-500mm/min
MotorAV Servo Motor
Capacity choice2000KG
Resolution1/150,000
Effective testing space400mm MAX
Accuracy±0.5%
Operation methodWindows XP,Win7 operation,computer control
Accessoriescomputer, printer, system operation manual
Optional accessoriescustomized clamps by appointed, force sensors, , printer, and operation manual
Weight400KG
Dimention(W×D×H)80×50×150㎝
Power1PH, AC220V, 50/60Hz
Stroke protectionUpper and lower protection, prevent over preset
Force protectionsystem setting
Emergency stop deviceHandling emergencies
