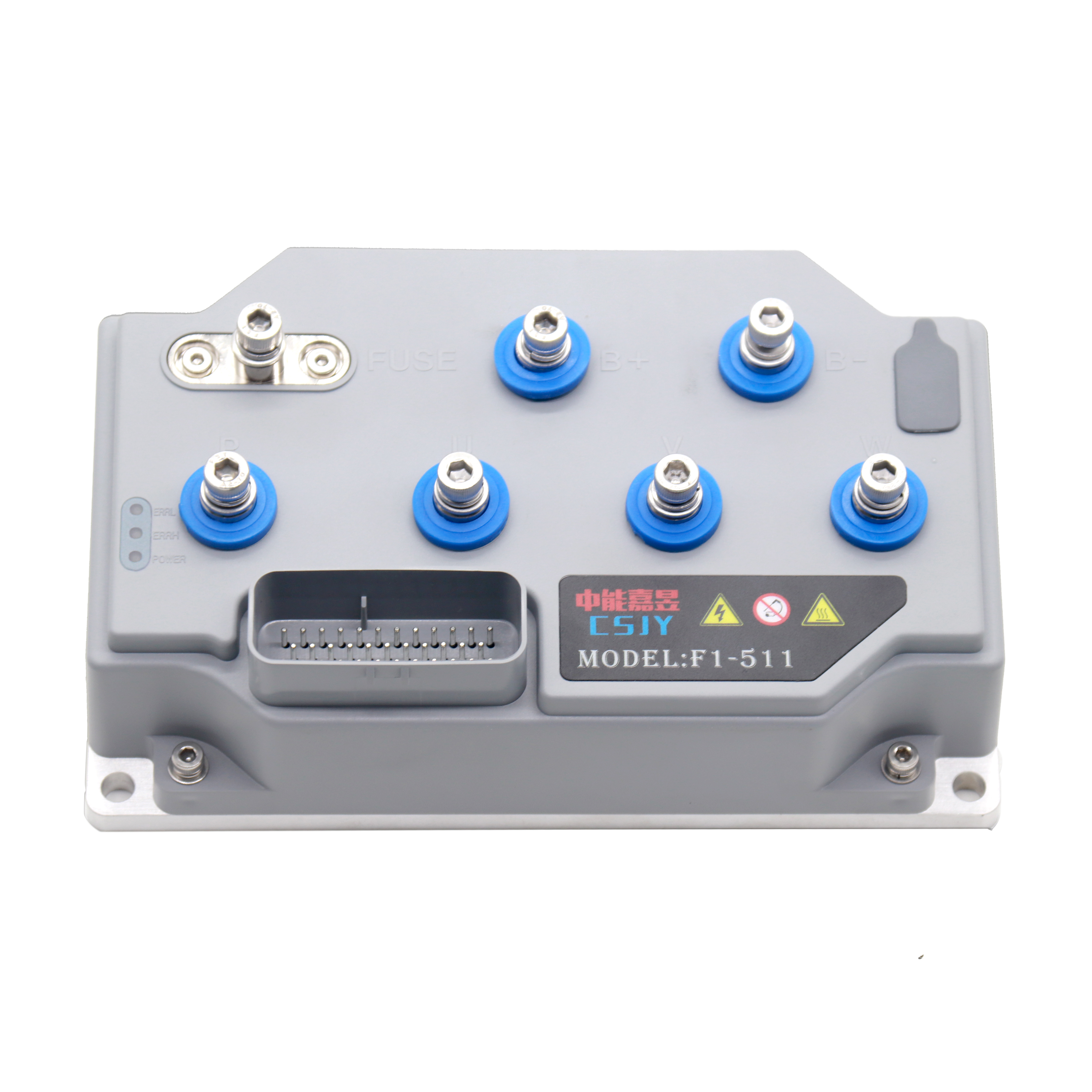

DC24~48V Electric Forklift Controller With Incremental Encoder Or Tamagawa Absolute Encoder, CANopen Ip65

Product Description:

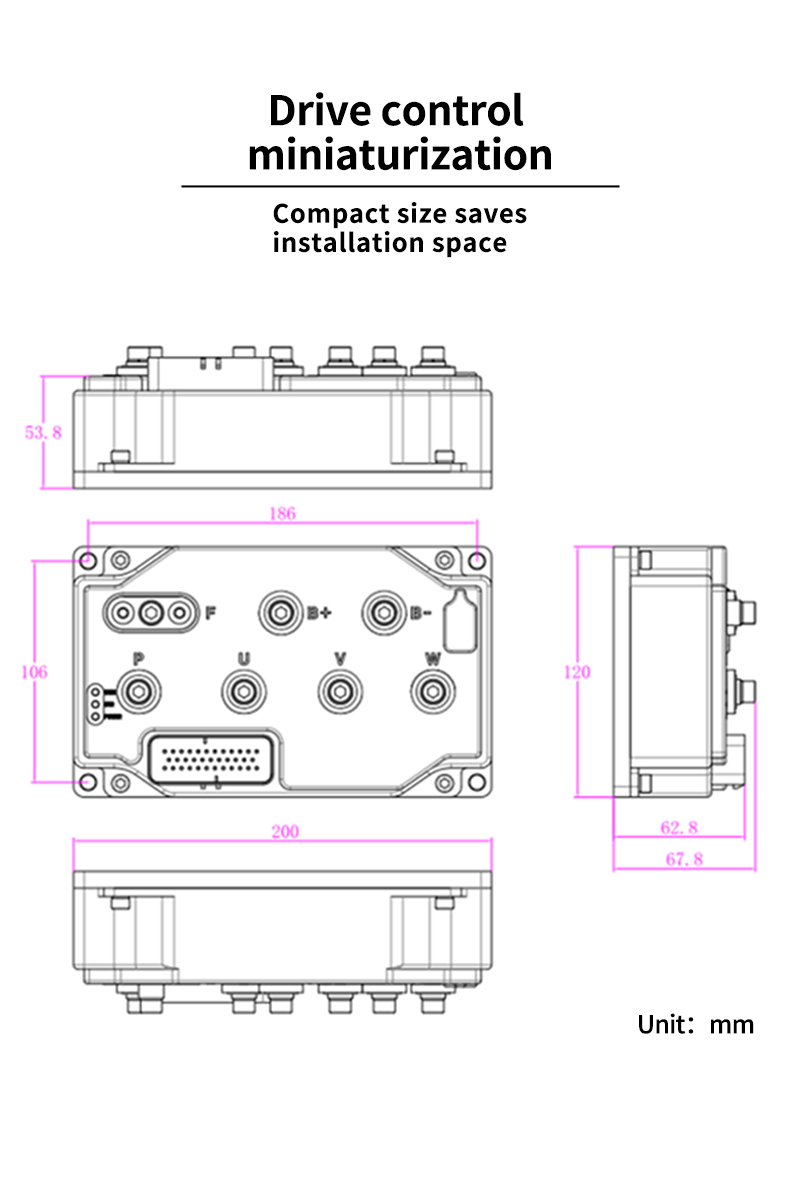

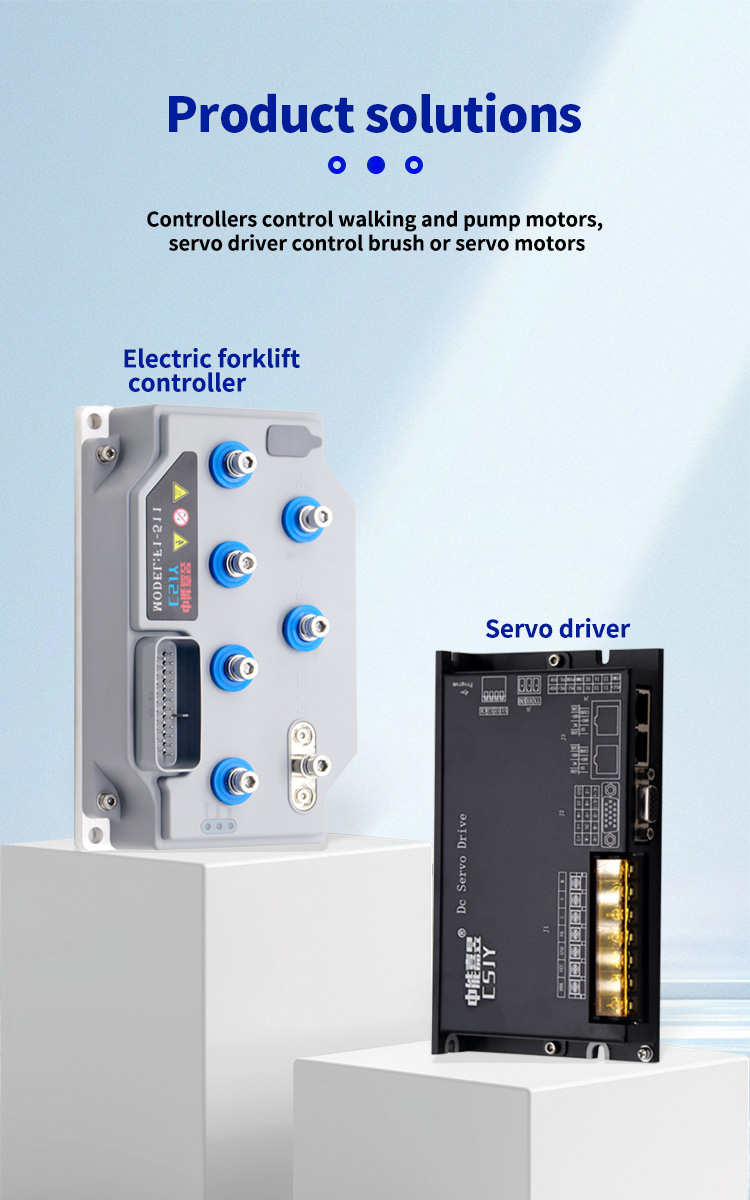

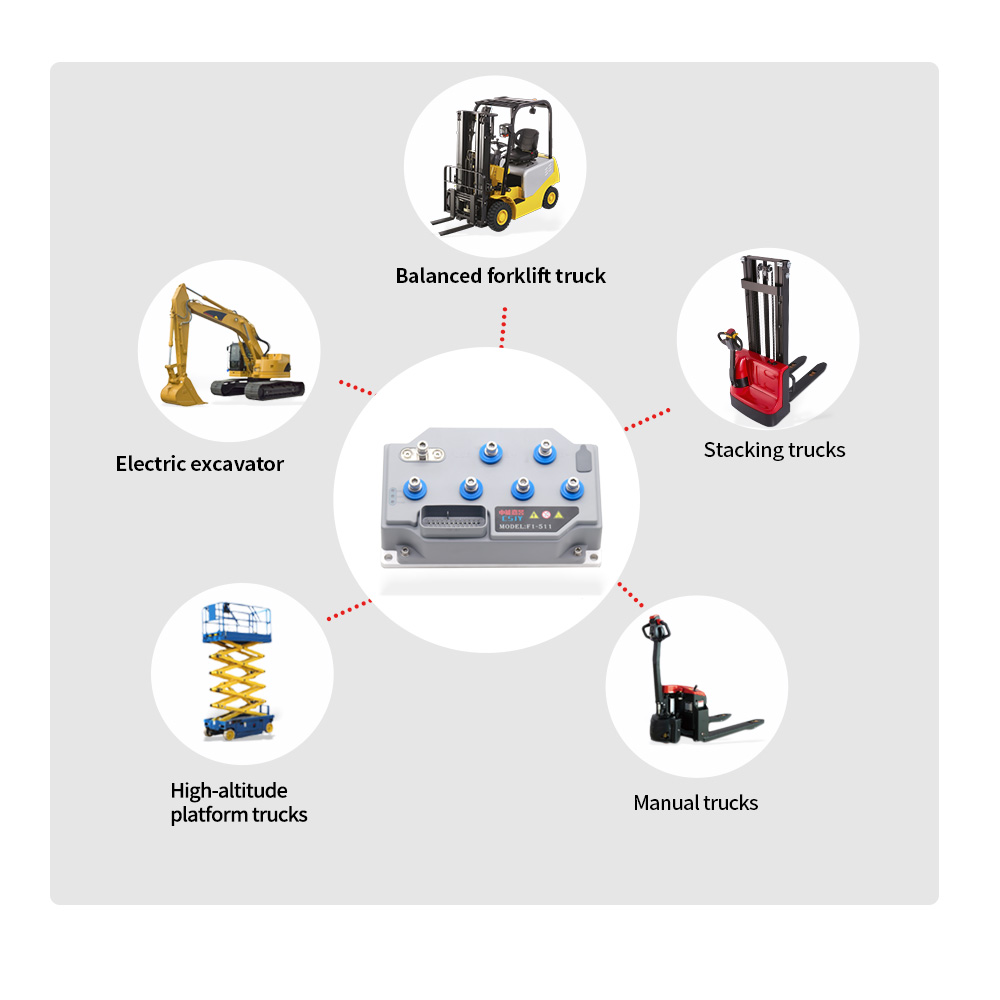

F1 series low voltage controller is a low voltage DC drive controller that can control walking and pump at the same time, integrating first-class PID algorithm and hardware design. The miniaturization of the drive control is realized, the power density is improved, the installation space is saved, the cost advantage is obvious, and it is suitable for the single drive electric traction forklift application.

Features:

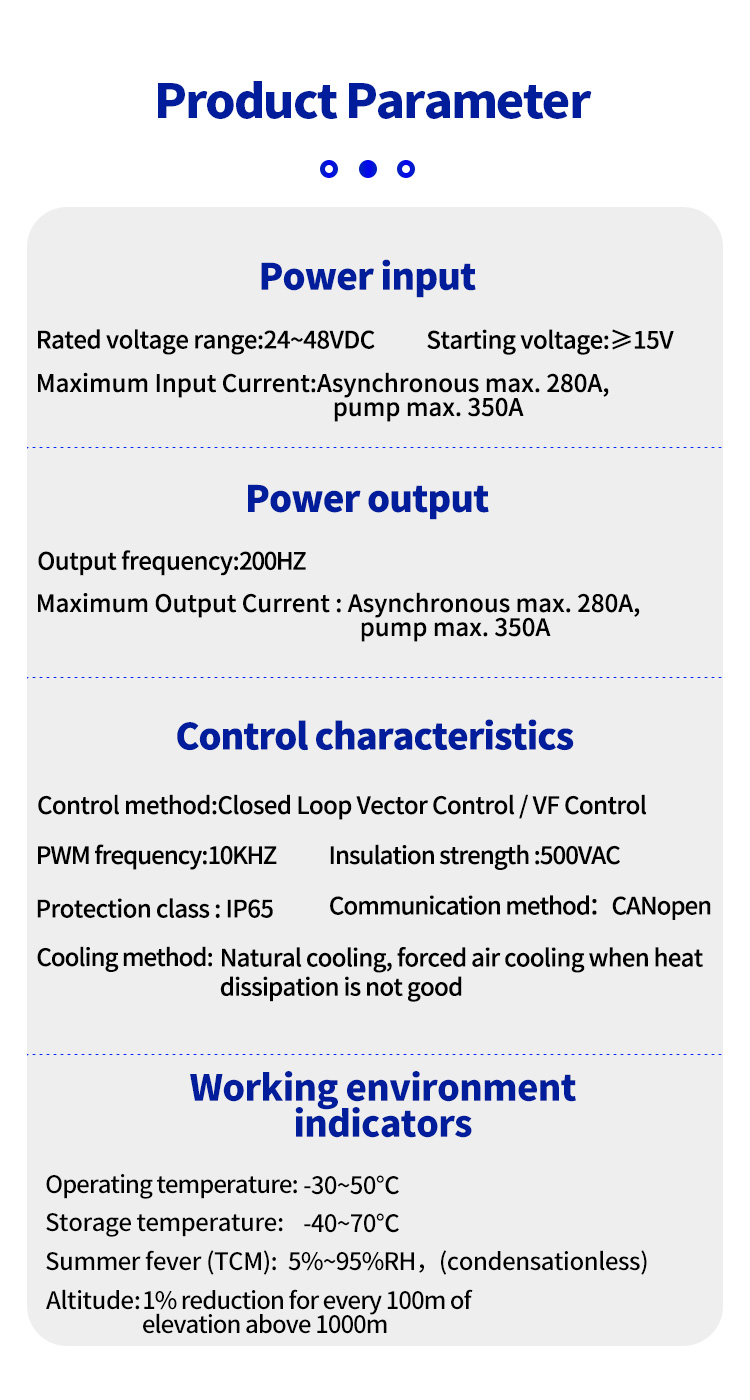

Rated voltage range:24V~48VDC Starting voltage:≥15V

PWM frequency:10KHZ Insulation strength:500VAC

Insulation strength:500VAC Protection class:IP65

Maximum Input Current:Asynchronous max. 280A, pump max. 350A

Control method:Closed Loop Vector Control / VF Control
