Three Phase Electric Energy Meter Test System

Categories Stationary Meter Test Equipment
Brand Name: GENY
Model Number: YC1893D-12
Certification: ISO, CE
Place of Origin: China
MOQ: 1
Price: negotiate rates
Payment Terms: T/T, L/C, D/P, T/T
Supply Ability: 5 sets / 1 months
Delivery Time: 6~8weeks
Packaging Details: Plywood cases
Accuracy: 0.05
Number Of Meter Positions: 6/12/24/48
Test voltage output: 24V – 288V or customized
Structure: All-in-one
Power of the voltage output: 3x200VA
Stability: Better than 0.005%/h (integration time 150 s)
Power Source: YCS-101-250 YCS-101-600 YCS-101-1200 YCS-101-2500
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

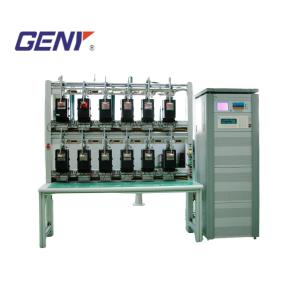

Three Phase Electric Energy Meter Test System

Three Phase Electric Energy Meter Test System

Description:


1. The meter test system can measure mechanical meter, electronic mechanical meters and electronic meter by ways of automatic, semi-automatic or manual operation.

2. Meters under testing: 3P4W, 3P3W, 1P2W

3. Testing mode: active power, reactive power, cross connected reactive power

4. Simultaneously measure meters with same specifications but different meter constants

5. Automatic positioning rotor mark of disc of mechanical meter, with more efficiency.

6. Starting test and creeping test

7. Neutral current test (optional)

8. Installing the ICT in each meter position to test three-phase meters with closed links between the current and voltage measuring circuits(I-P links)(optional)

9. With the protection function of overload, short voltage circuit and open current circuit.

10. The swing together of the scanning heads simplifies the control.

11. Aluminum alloy material, light and strong and corrosion resistant

12.The testing software with friendly Windows 2000 /XP /7 /8 /10 operation system, includes functional module of all kinds of modern energy meter needed, to reality error test, harmonic test, demand test, influence test etc,.

Specifications:


Technical spec.YC1893D-6YC1893D-12YC1893D-24YC1893D-48
Number of meter positions6122448
Accuracy0.05 / 0.02
Power SourceYCS-103-250YCS-103-600YCS-103-1200YCS-103-2500
Standard MeterSZ03A-K6 / SZ03A-K8
Scanning HeadYCG-S Series
Voltage
Test voltage output(Phase-Neutral)3x(24V~288V)(or customized)
Power of the voltage outputMax. 3x100VAMax. 3x250VAMax. 3x500VAMax. 3x1000VA
ResolutionBetter than 0.01% of full scale value of range
Setting accuracyBetter than 0.05% at the final range value
StabilityBetter than 0.005% /h (integration time 150s)
Load regulation from 0~max. loadBetter than 0.01%
Distortion factorBetter than 0.3% for linear resistance load
Harmonic2nd~21st free programmable
Current
Test current output3x(1mA~100A)
Power of the current outputMax. 3x150VAMax. 3x350VAMax. 3x750VAMax. 3x1500VA
ResolutionBetter than 0.01% of full scale value of range
Setting accuracyBetter than 0.05% at the final range value
StabilityBetter than 0.005% /h (integration time 150s)
Load regulation from 0~max. loadBetter than 0.01%
Distortion factorBetter than 0.3% for linear resistance load
Harmonic2nd~21st free programmable
Phase angle
Range0~360⁰
Resolution0.01⁰
Setting accuracy0.1⁰
Frequency
Range45Hz~65Hz
Resolution0.01Hz
Error display
Type of error displayRed LED
Resolution of error displays8 digitals
Other
Voltage supply

3x220/380V±10%(or customized)

50/60Hz ±2Hz

Ambient temperature-10°C~+40°C
Relative humidity35%~85%


*To learn more go to our website http://www.genymetertestequipment.com/
