High Accuracy Durable GPS Module For Drones With ISO9001 Certification

Categories GPS Module For Drones
Model Number: YW-1010Z1
Price: USD 2.0-8.0 Unit
Brand Name: Youwei
Certification: CE,Rohs
Place of Origin: CHINA
MOQ: 200
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram Paypal
Supply Ability: 200000 PCS MONTH
Delivery Time: 5-8 days
Packaging Details: PE Bag Cartons
Type: GNSS Module
Country of Origin: China
Brand: YOUWEI
Chipset: YW-1010Z1
Application: Drones
Product name: YOUWEI
Chip: YW-1010Z1
Payment: Paypal\TT\Western Union\Trade Assurance
Feature: Band
D/C: Newest
Battery: Internal back-up battery
Operating temperature range: -40 to 85℃C
description: GNSS module
Cetificate: ISO9001
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Accuracy Durable GPS Module For Drones With ISO9001 Certification

High Accurate GPS Receiver Module YW-1010Z1 Durable Gnss Module For Drones


1.Product Description

Featuring a single die solution, low power consumption and low costs, the YW-1010Z2 are multi- Beidou, positioning Module developed to meet the requirements of an extensive range of applications and end- products. Based on the high performance AT6558R position engine,these receivers provide exceptional
sensitivity and acquisition times and interference suppression measures enable reliable positioning even in
difficult signal conditions


2.Product Features


• Build on high performance GNSS single chip AT6558F
• 72 channels in Search mode
• cold start acquisition sensitivity of -147 dBm and -162 dBm tracking sensitivity
• up to 5Hz navigation update rate
• Supports any two of GPS/QZSS, Beidou,GLONASS, Galileo,SBAS simultaneously by firmware support
• Supports AGPS
• Integrated TCXO,LNA,SAW,RTC
• Compact size (10.1mm * 9.7 mm * 2.5mm ±0.2mm ) suitable for space-sensitive application
• Support standard NMEA

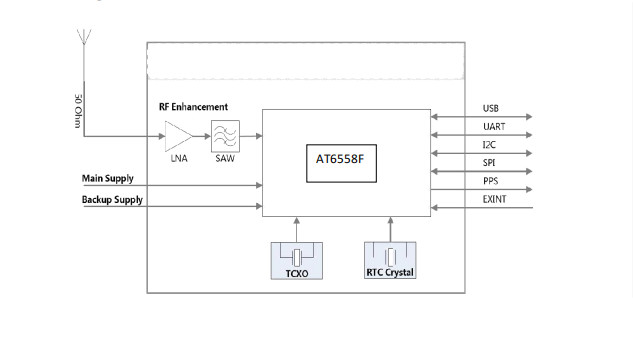

3.Block Diagram
4.Product Application
• Handheld beidou receiver application
• Automotive application
• Ideal for PDA, Pocket PC
• Car navigation and tracking
• Geographic Surveying
• AVL and Location-Based Services
• Sports and Recreation
• Timing application
• Marine Navigation, Fleet Management
• UAV
5.Certification
6.FAQ
Q:Are you a factory or trading company?
A:We are a factory, produce all products by ourselves and have patents. The products we sell are well-known in China.
Q:What is your hot items?
A:We sell GPS navigation modules, which can be used for multi-purpose use such as vehicles and drones.
Q:How about the Shipping Method?
A:DHL/UPS/TNT/Fedex and other air shipments and sea shipments are all workable. In one words, we could do any shipments you wanted.
Q:How about the delivery date?
A:In General, the delivery date will be 3-5 working days for normal buy quantity. But if bigger order, please check us further.
Q:How about the label and the logo?
A:Customize label and logo is workable.
Q:How about the MOQ ?
A:Lower MOQ of 5PCS per style.
Q:How many the warranty?
A:All our goods are 1 years warranty
