Categories | Toilet Paper Roll Making Machine |
---|---|
Brand Name: | Xinyun |
Model Number: | XY-BT-299 |
Certification: | CE |
Place of Origin: | China |
MOQ: | 1 set |
Price: | USD 26800 Set |
Payment Terms: | T/T, L/C |
Delivery Time: | Within 70 days after receipt of the deposit. |
Packaging Details: | Wooden pallets or wooden boxes |
Type: | Automatic |
Color: | White |
Voltage: | 380V |
Usage: | Packing facial tissue paper |
Warranty: | One year |
Production Speed: | 23 bundling /minute |
Power supply: | 11.5KW 380V 50HZ |
Bag size per bag: | L450*W(130-400)*H(80-105) mm |
Machine size: | L3100*W1200*H1600 mm |
Weight: | 2T |
Company Info. |
Fujian Xinyun Machinery Development Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |
XY-BT-299 High-Performance Multi Bags Facial Tissue Packing Machine at A Good Price
Characteristics:
1. Full automatic operation. High-speed performance. Ideal for
packing and bundling rolls (6, 8, or 10 bags in one package).
2. Can be seamlessly connected to a log saw or single roll wrapping
machine for integrated production.
3. Servo system, PLC controlled, ensures precise movement and
operation.
4. The system features auto feeding and auto adjustment functions,
streamlining processes and enhancing efficiency. High-quality
sensors are employed to guarantee optimal performance and accuracy.
5. Operated by color touch screen display.
6. Emergency stop/ pause function, safety alarm system, air and electric power protection system.
7. Adopting a constant temperature sealing and cutting system.
Main technical parameters:
Capacity | 18 bundling bags/min |
Power supply | 17 Kw 380V 50HZ |
Air supply | 0.5-0.7MPA(Supplied by user) |
Feeding mode | Full automatic 2 lanes feeding system |
Suitable for packing | Bundling facial tissue |
Bag size/Rolls per bag | L600*W(150-420)*H(80-105) mm 6,8,10 bag/bundling bag |
Bundling bag mode | Prefabricated bag with air-bleed hole |
Bundling bag material | PE, thickness::≥0.05mm |
undling bag storing quantity | ≤500 pcs |
Machine weight | 3500kg |
Machine size | L6800*W3700*H1600 mm |

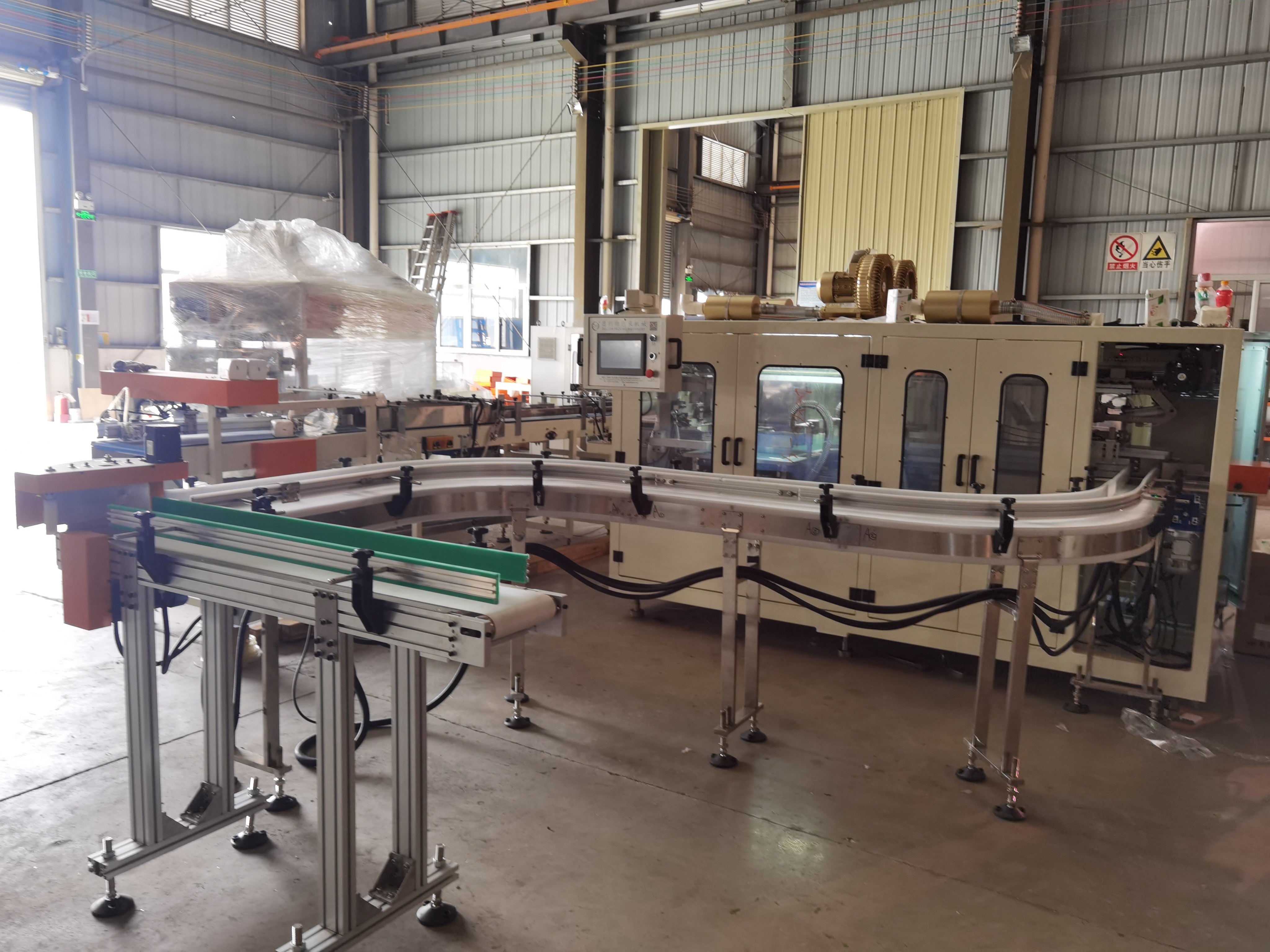

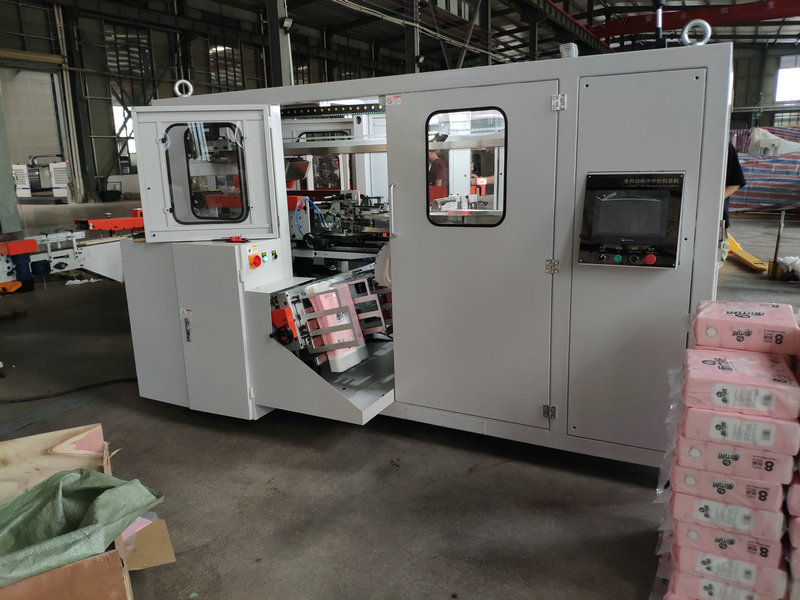

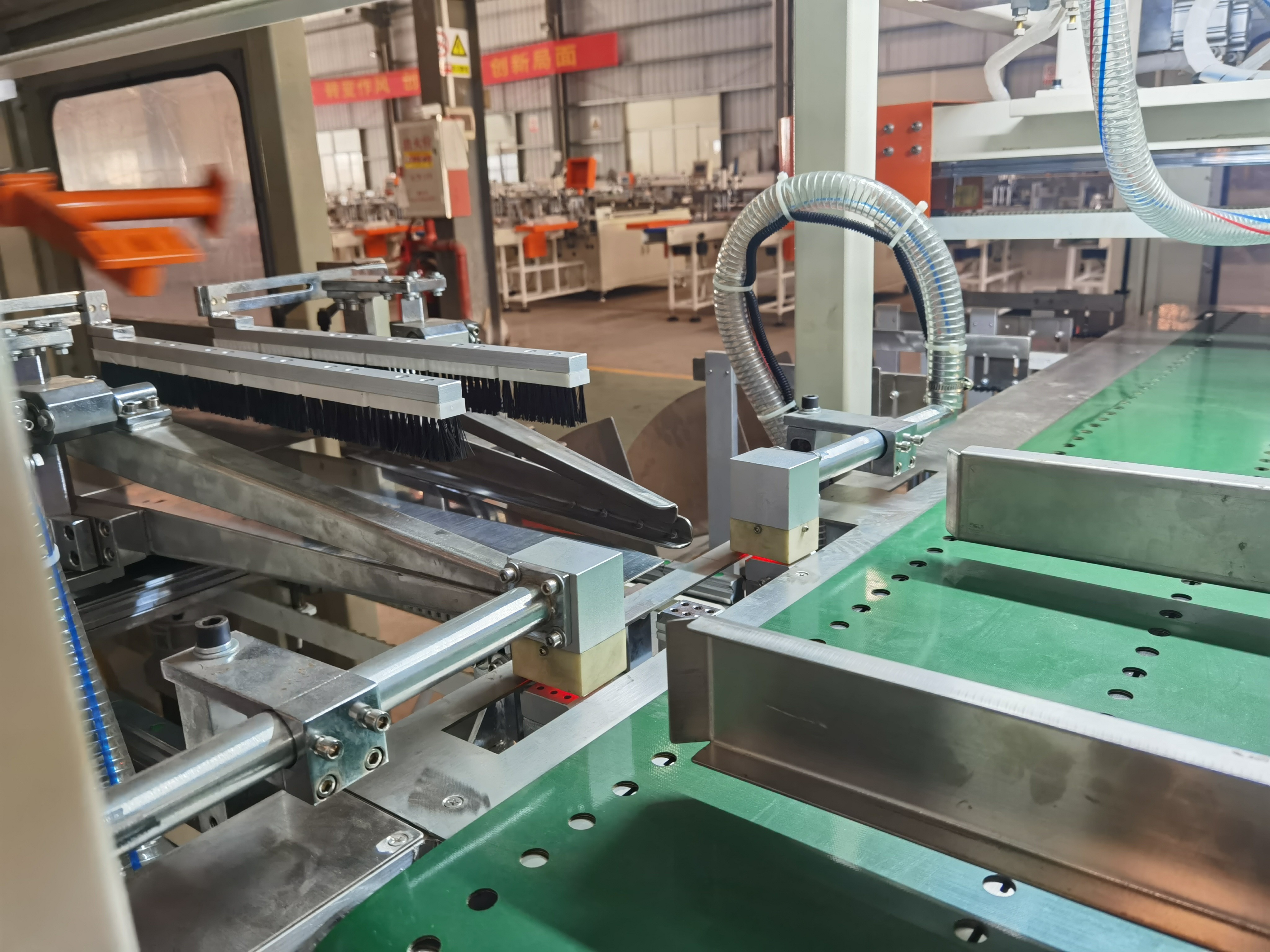

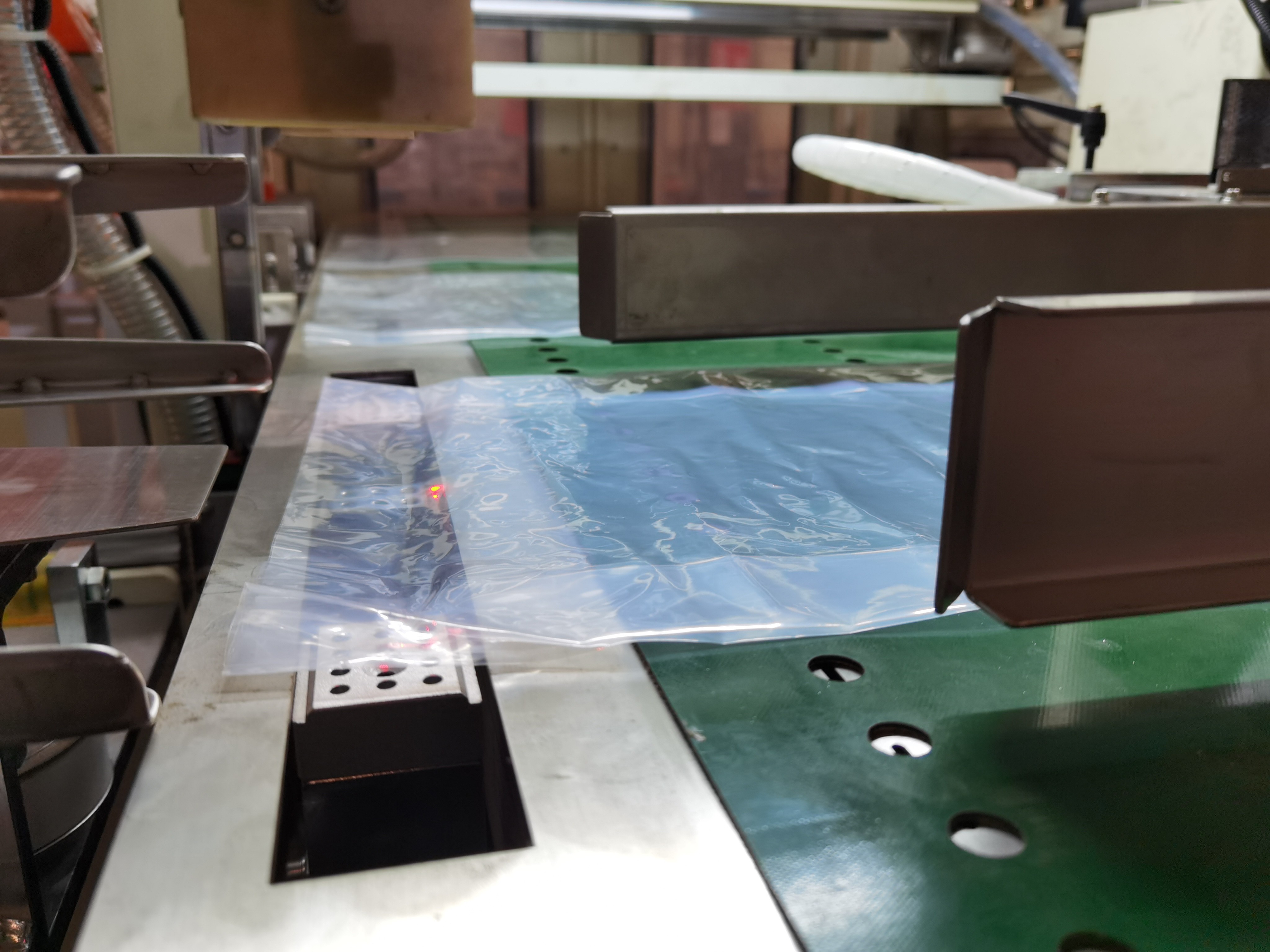

Detail pictures:
![]() |
